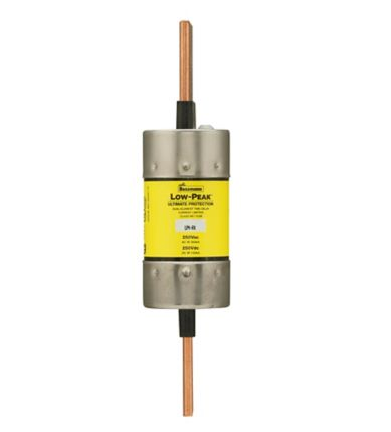

LPN-RK-150SP - Eaton 150A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-150

LPN-RK-150SP is a Eaton Bussmann series Class RK1 fuse designed for reliable circuit protection with a 150 amp rating and 250 volts AC/DC capacity.This time-delay, dual-element fuse provides current-limiting protection with a high interrupt rating of 300 kA at 250 VAC and 100 kA at 250 VDC. It features blade end connections and is suitable for high inrush current motor protection applications. The fuse is CE marked, UL listed, and CSA certified, ensuring compliance with industry standards.

• Amperage Rating: 150 A
• Voltage Rating: 250 VAC / 250 VDC
• Interrupt Rating: 300 kAIC at 250 VAC, 100 kAIC at 250 VDC
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Class: RK1
• Connection: Blade end x blade end
• Physical Size: 1.61" x 7.13"
• Certifications: CE Marked, UL Listed, CSA Certified
• Special Features: High inrush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-150
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 150
• AIC rating : 300kA@250V
• Connection : Knife Blade
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• GTIN : 0051712538480
• Weight : 5.19
