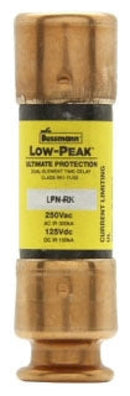

LPN-RK-12SP - Eaton Bussmann 12A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-12SP

LPN-RK-12SP is a 12 amp, 250 volt AC/125 volt DC Class RK1 time delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse features a ferrule end x ferrule end connection, non-indicating design, and an 8-second time delay at 500% overload. It has a high interrupt rating of 300 kA at 250 VAC and 100 kA at 125 VDC, making it suitable for industrial and commercial electrical applications. The fuse measures 0.56 inches in diameter and 2 inches in length, with an electrically isolated end cap for enhanced safety. It is CE marked and complies with UL and CSA standards.

Key Specifications
• Amperage Rating: 12 A
• Voltage Rating: 250 VAC / 125 VDC
• Class: RK1
• Fuse Type: Time Delay, Dual Element
• Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
• Connection: Ferrule end x ferrule end
• Response Time: 8 seconds at 500% overload
• Dimensions: 0.56 in diameter x 2 in length
• Fuse Indicator: Non-indicating
• Special Features: Electrically isolated end cap
• Certifications: UL, CSA, CE Marked
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPN-RK-12SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 12
• AIC rating : 300kA@250V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 051712538312
• GTIN : 05027590064071
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
