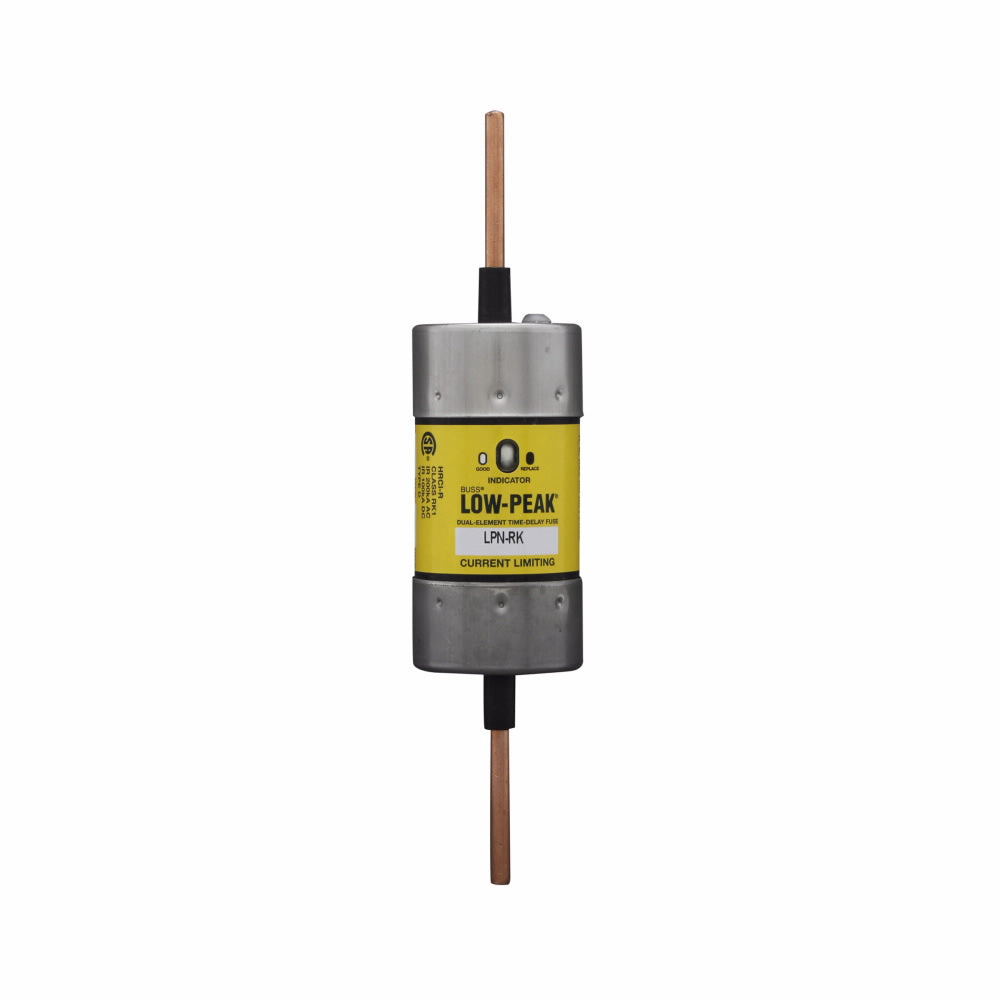

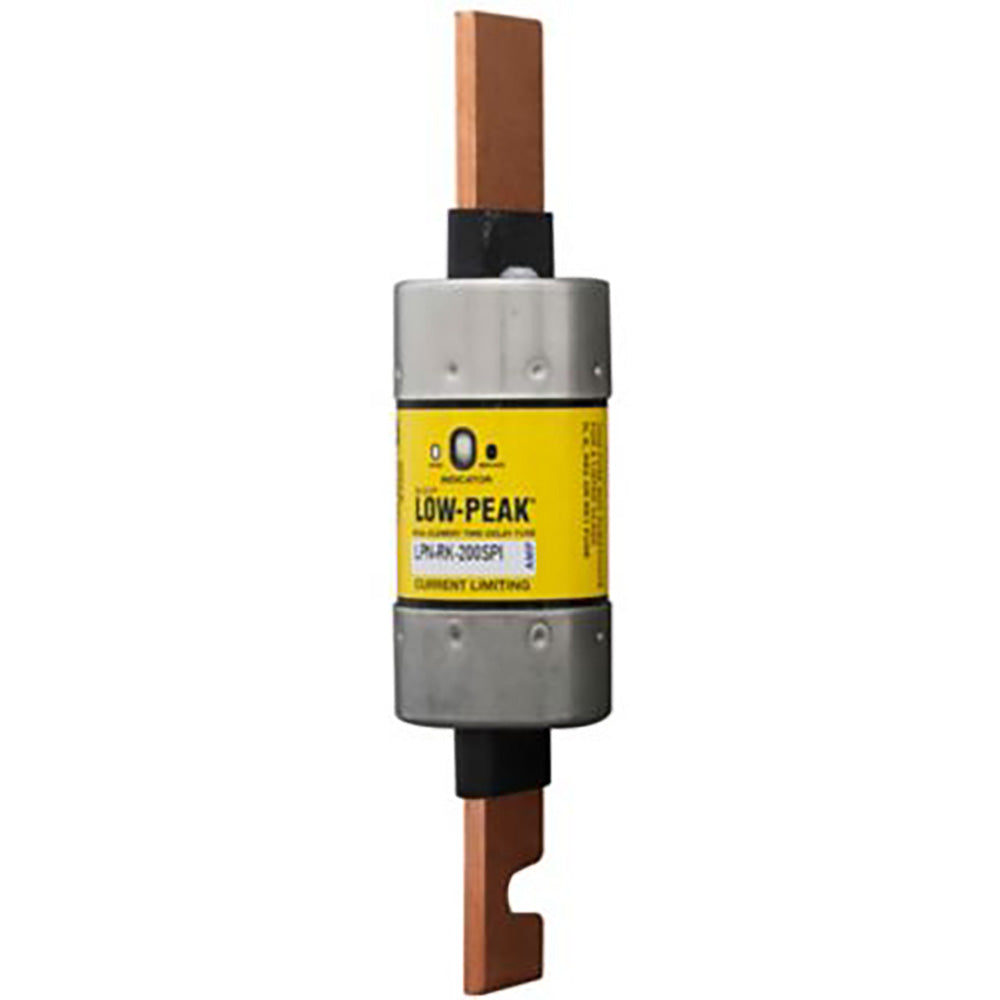

LPN-RK-125SPI - Eaton 125A 250V Time Delay Class RK1 Fuse

LPN-RK-125SPI

LPN-RK-125SPI is a Class RK1 dual element, time-delay fuse designed for feeder, branch circuit, transformer, motor, and general purpose applications.

This current-limiting fuse provides fast short-circuit protection with a 300 kA interrupting rating at 250 Vac and 100 kA at 250 Vdc. The dual-element design ensures reliable overload and short-circuit protection, making it suitable for virtually any industrial application requiring dependable circuit protection.

• Amperage Rating: 125 A
• Voltage Rating: 250 Vac, 250 Vdc
• Fuse Type: Time Delay (Dual Element)
• Interrupt Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
• UL Class: RK1
• Current-Limiting Design
• Physical Size: 1.61 inches x 7.13 inches
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-125SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 125
• AIC rating : 300kA@250V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171262675
• GTIN : 00051712626750
• Country of Origin : Mexico
• Dimensions : 7.13 in x 1.61 in x 1.16 in (Length/Depth x Height x Width)
• Weight : 0.69
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
