LPN-RK-125SP - Bussmann 125A 250VAC/DC Dual Element Time Delay Fuse Class RK1 Current Limiting

Save $235.87
SKU: LPN-RK-125SP-New
Condition: New
Price:
$110.15 $346.02
Stock:
14 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

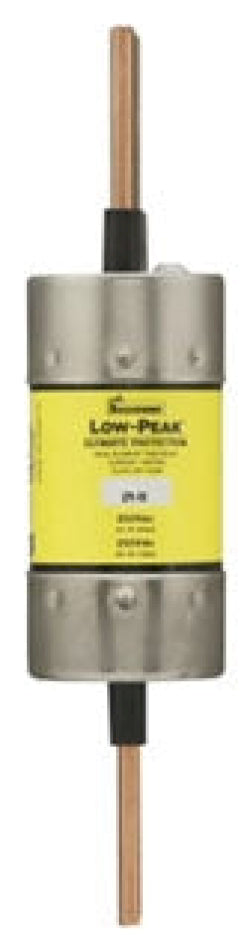

Cooper Bussmann LPN-RK-125SP Low Voltage Low-Peak 250V 125A Fuse - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Cooper Bussmann LPN-RK-125SP Low Voltage Low-Peak 250V 125A Fuse - Essential Electric Supply

Description

LPN-RK-125SP


LPN-RK-125SP is a Bussmann dual element, time delay fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 125A current rating, 250VAC/DC voltage rating, and is classified as Class RK1 with a 300,000A interrupting rating at 250VAC and 100,000A at 250VDC. It is current limiting and provides a minimum 10-second time delay at 500% rated load, making it suitable for high inrush current motor protection. The fuse has a blade terminal design and is UL, CSA, and CE listed for safety and compliance. This Bussmann LPN-RK-125SP fuse is part of the Low-Peak® series, offering robust protection for demanding environments. Its physical dimensions are 1.61" diameter and 7.13" length, ensuring compatibility with standard fuse blocks. The fuse is non-indicating and features dual element construction for enhanced reliability.
  • Part Number: LPN-RK-125SP
  • Manufacturer: Bussmann, Cooper Bussmann, Eaton
  • Amperage: 125A
  • Voltage: 250VAC/DC
  • Interrupt Rating: 300,000AIC (AC), 100,000AIC (DC)
  • Series: LPN-RK, Low-Peak®
  • Mounting Type: Blade Terminal
  • Time Delay: Minimum 10 seconds at 500% rated load
  • Current Limiting: Yes
  • Class: RK1
  • Certifications: UL, CSA, CE
  • Physical Size: 1.61" x 7.13"
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: LPN-RK-125SP
  • Manufacturer : Eaton
  • Brand : Bussmann
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : Low-Peak
  • Type : LPN-RK
  • Voltage : 250
  • Amperage : 125
  • AIC rating : 300kA@250V
  • Diameter : 1.61
  • Class Rating : RK1
  • Barrels : 1

Product Data

  • UPC : 051712538473
  • GTIN : 00051712538473
  • Country of Origin : Mexico
  • Dimensions : 7.13 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
  • Weight : 0.69
  • Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
