Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

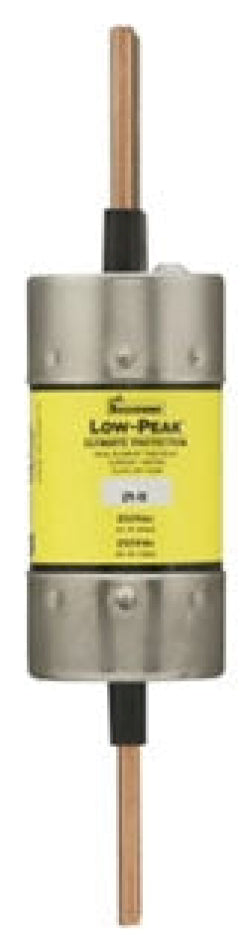

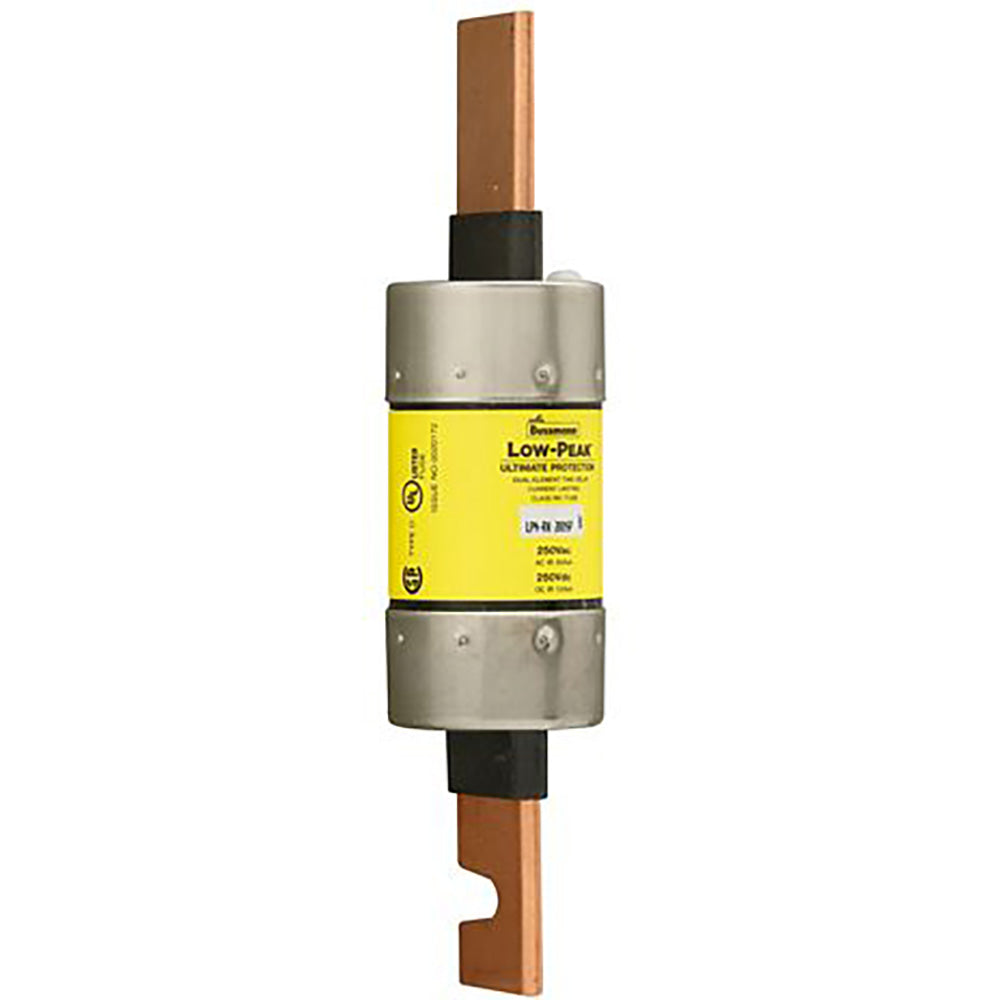

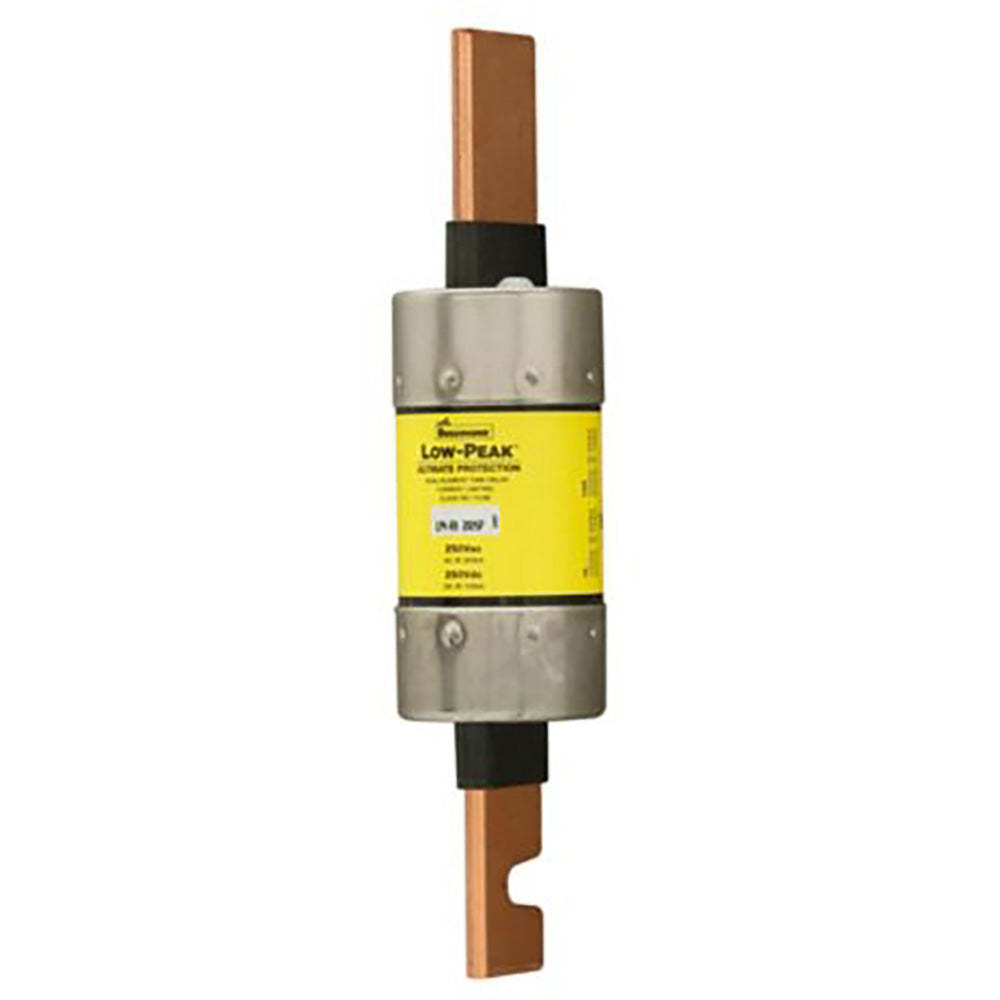

LPN-RK-110SP
LPN-RK-110SP is a 110 ampere, 250 volt AC/DC time delay fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a dual element, current limiting design with RK1 class rating, suitable for use in industrial and commercial electrical systems. It provides time delay characteristics for temporary overloads and has a high interrupting rating of 300,000 amps symmetrical AC and 20,000 amps DC. The fuse is a midget size with ferrule terminal type and complies with UL Class RK1 standards.
- Key Specifications
- Amperage: 110 Amps
- Voltage Rating: 250 Volts AC / 125 Volts DC
- Fuse Class: RK1
- Time Delay: Dual Element
- Interrupting Rating: 300,000 A AC / 20,000 A DC
- Physical Size: 1.61" x 7.13"
- Terminal Type: Ferrule
- Series: LPN-RK-SP
- Manufacturer: Eaton Bussmann
- UL Listed
Specifications
- Part Number: LPN-RK-110SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 110
- AIC rating : 300kA@250V
- Diameter : 1.61
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538466
- GTIN : 00051712538466
- Country of Origin : Mexico
- Dimensions : 7.13 in x 1.61 in x 1.61 in (Length/Depth x Height x Width)
- Weight : 0.69
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
