Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

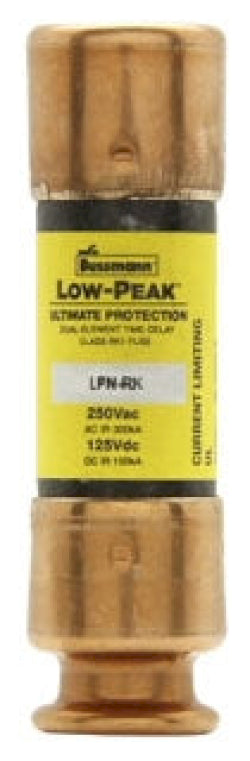

LPN-RK-10SP
LPN-RK-10SP is a Class RK1, time-delay, dual-element, current-limiting fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.
This non-indicating, ferrule-terminal fuse offers fast short-circuit protection and time-delay performance, reducing nuisance trips during motor starts and inrush currents. It is engineered for maximum safety with a low peak let-through current and high interrupting capacity.
-
Key Specifications
- Amperage: 10A
- Voltage: 250VAC / 125VDC
- Poles: 1
- Mounting Type: Holder mount, cartridge body
- Interrupt Rating: 300kA at 250VAC, 100kA at 125VDC
- Series/Frame: LPN-RK
- Trip Unit: Dual element, time-delay (8 seconds at 500% overload)
- Certifications: UL Class RK1, CE Marked
- Terminal Type: Ferrule
- Body Size: 0.56" x 2"
- Response: Current-limiting, non-indicating
- Material: Melamine
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LPN-RK-10SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPN-RK
- Voltage : 250
- Amperage : 10
- AIC rating : 300kA@250V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712538305
- GTIN : 00051712538305
- Country of Origin : Mexico
- Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
- Weight : 0.5
- Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
