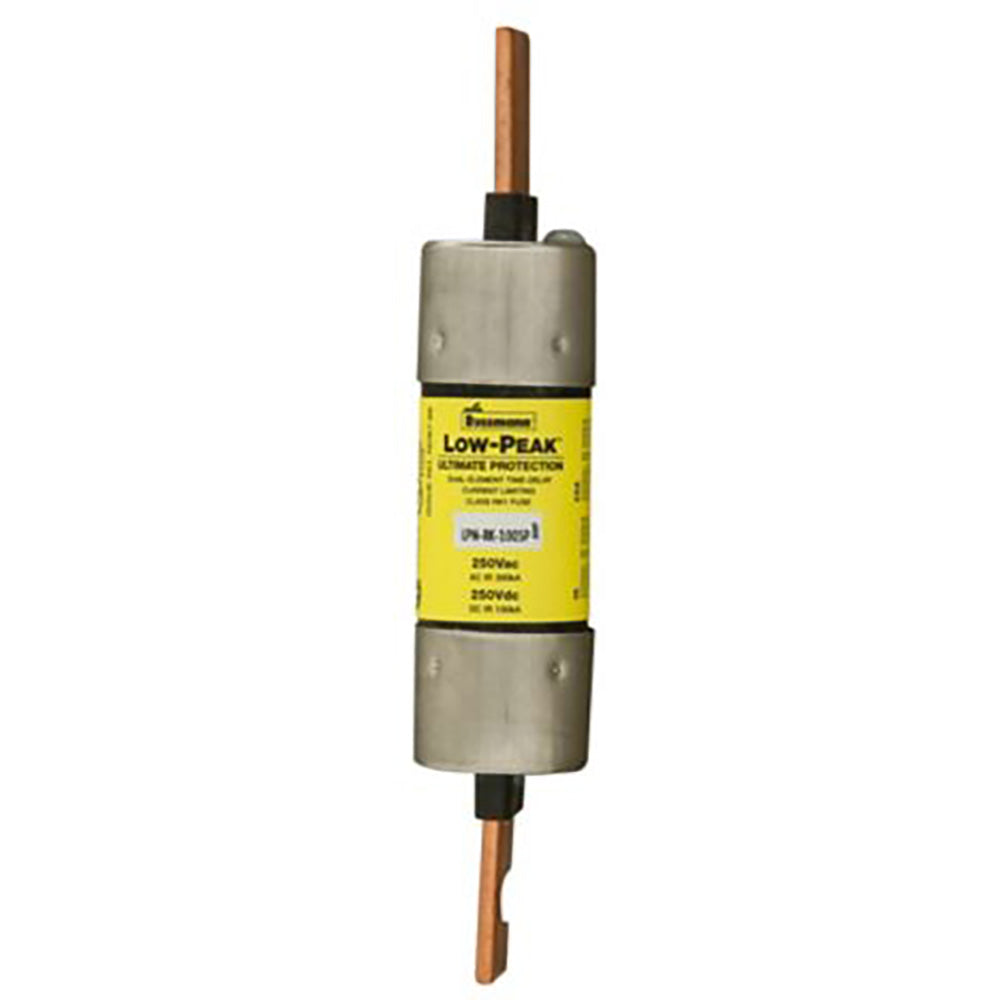

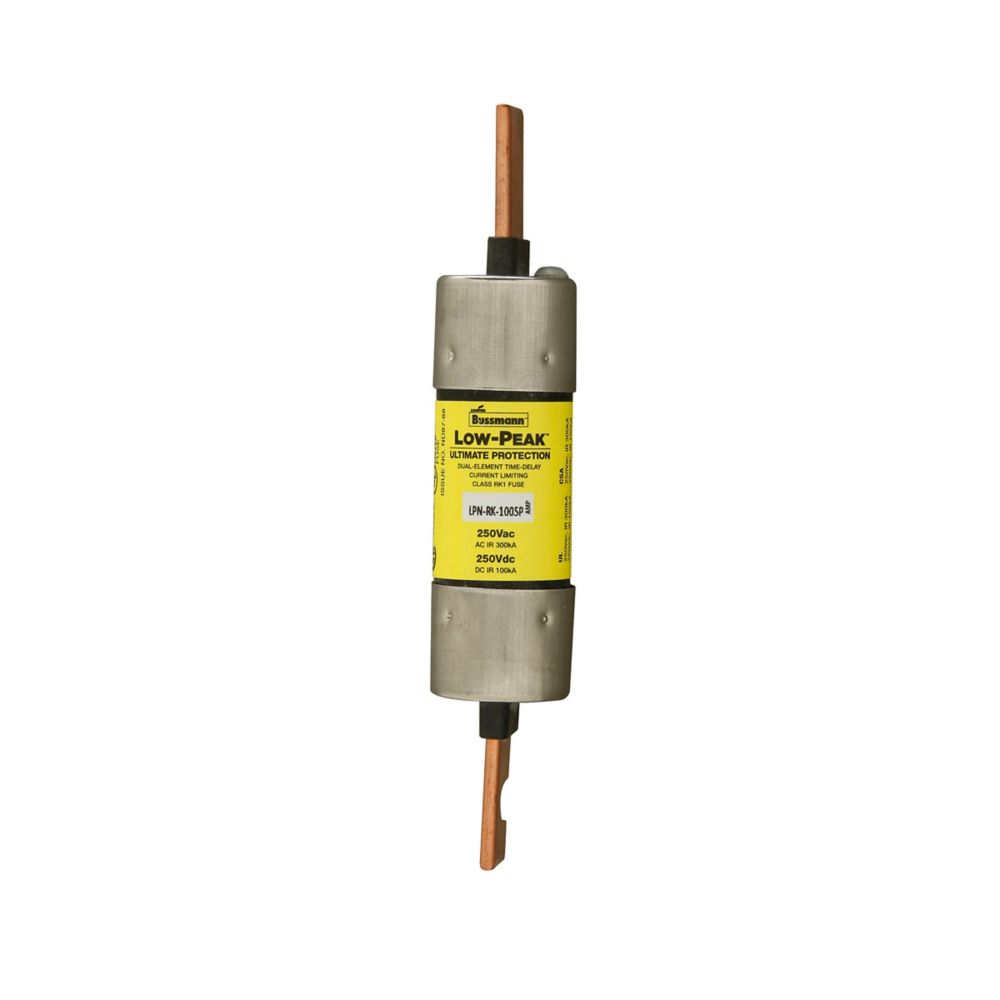

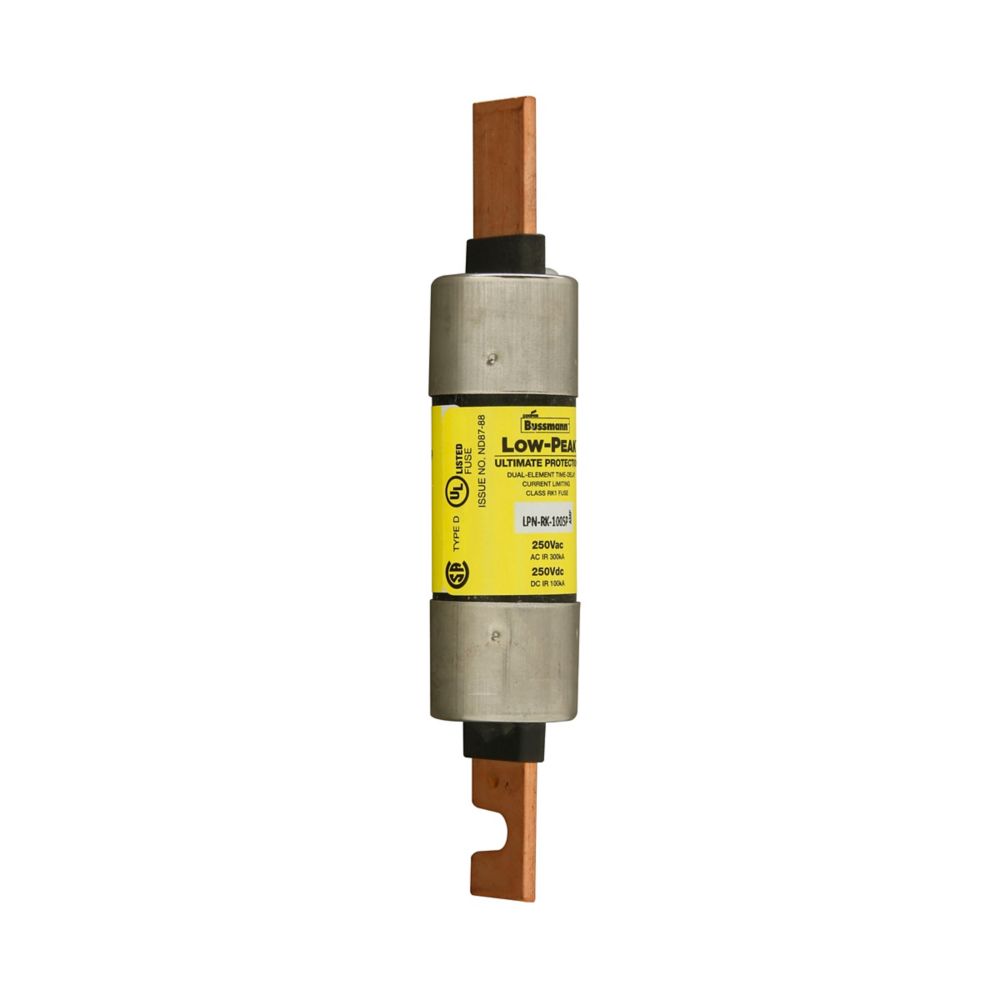

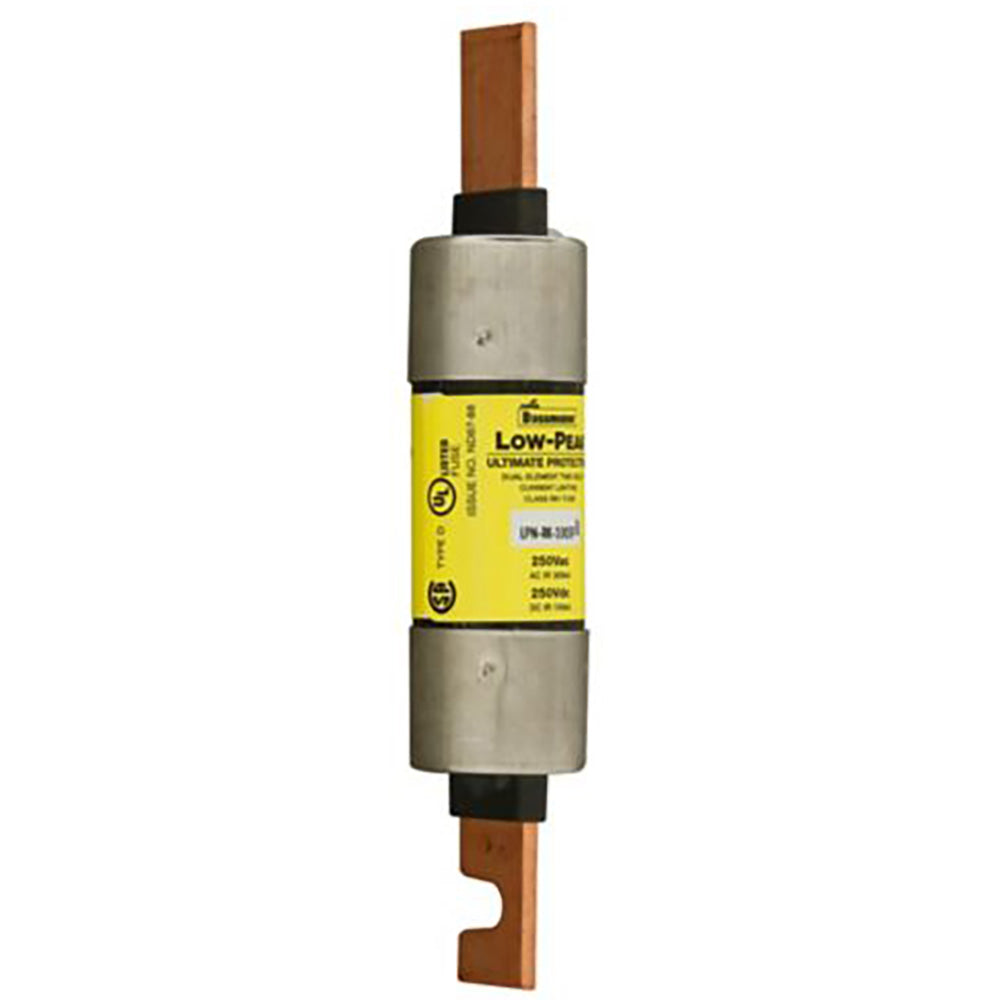

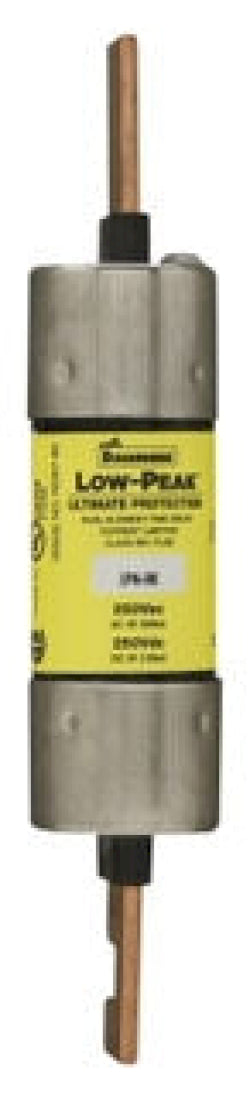

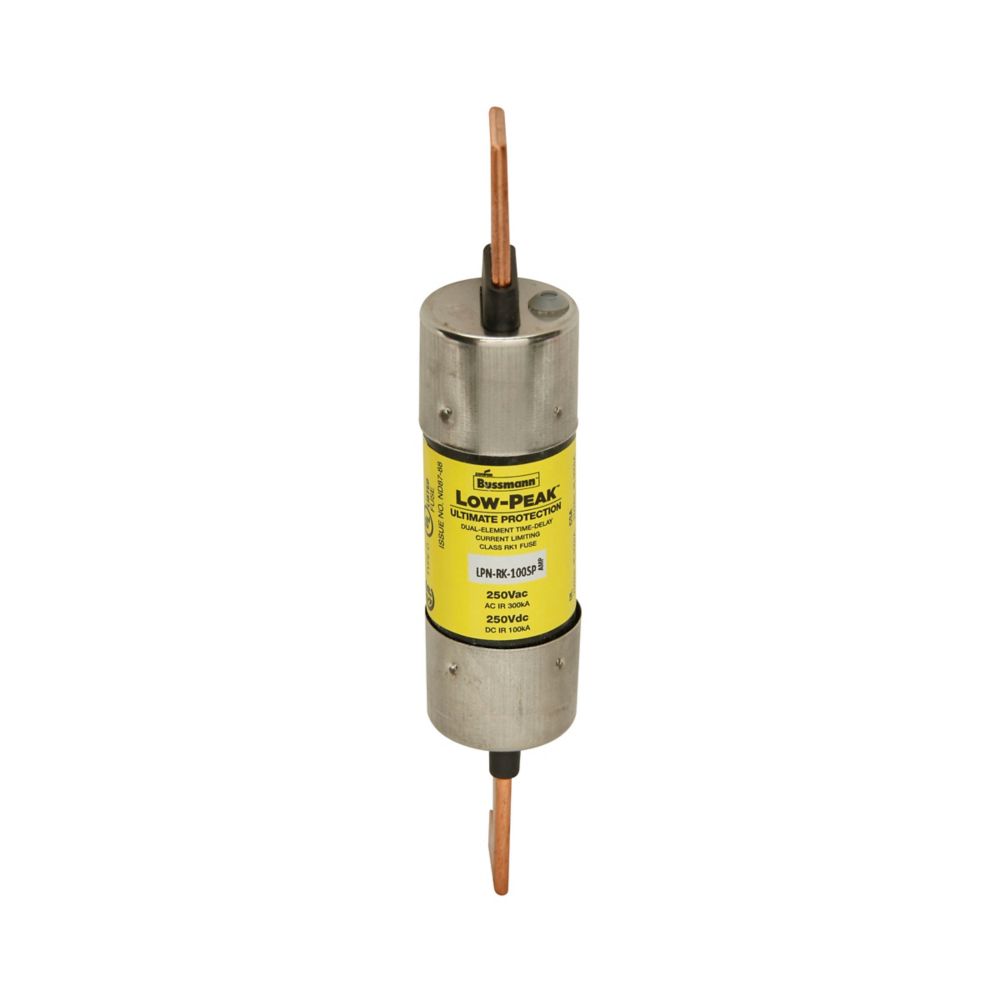

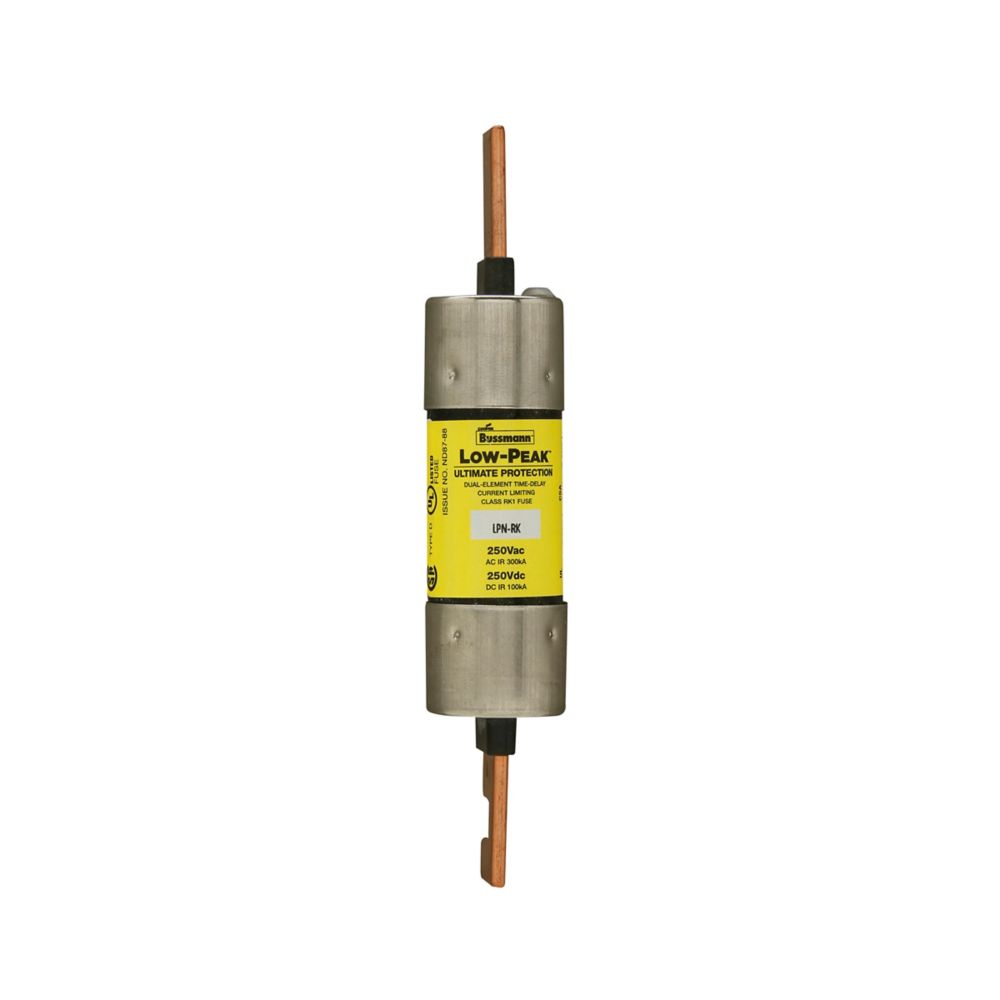

LPN-RK-100SP - Eaton Bussmann 100A 250V Class RK1 Time Delay Dual Element Fuse

LPN-RK-100SP

LPN-RK-100SP is a 100 amp, 250 volt AC/DC Class RK1 time-delay fuse from Eaton Bussmann series designed for high inrush current motor protection.This fuse features a dual-element, current-limiting design with a 10-second minimum time delay at 500% rated load, providing reliable protection against short circuits and overloads. It has an interrupting rating of 300 kA at 250 VAC and 100 kA at 250 VDC, non-indicating blade end connections, and complies with UL, CSA, CE, and RoHS standards.

Key Specifications
• Amperage Rating: 100 A
• Voltage Rating: 250 Vac / 250 Vdc
• Fuse Type: Time Delay, Dual Element, Current Limiting
• Interrupting Rating: 300 kAIC at 250 Vac, 100 kAIC at 250 Vdc
• Class: RK1
• Connection: Blade end x blade end
• Physical Size: 1.1 in diameter x 5.88 in length
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Special Features: High inrush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-100SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPN-RK
• Voltage : 250
• Amperage : 100
• AIC rating : 300kA@250V
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538459
• GTIN : 00051712538459
• Country of Origin : Mexico
• Dimensions : 5.88 in x 1.1 in x 1.1 in (Length/Depth x Height x Width)
• Weight : 1.5
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
