LPN-RK-1/2SP - Eaton 0.5A 250VAC/125VDC Class RK1 Time-Delay Dual Element Fuse 300kA Interrupt Rating

LPN-RK-1/2SP

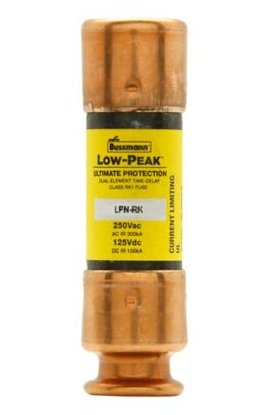

LPN-RK-1/2SP is an Eaton Bussmann series Class RK1 fuse designed for reliable circuit protection.LPN-RK-1/2SP is a 0.5 amp, 250 VAC/125 VDC rated, time-delay, dual-element, current-limiting fuse with a high interrupting rating of 300 kA at 250 VAC and 100 kA at 125 VDC. This non-indicating fuse provides 8 seconds minimum time delay at 500% rated current, suitable for high inrush current motor protection and general-purpose applications. It features a compact 2 inch length and 0.56 inch diameter, ferrule terminal type, and is CE marked for compliance.

Key Specifications
• Amperage: 0.5 A
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Class: RK1
• Fuse Type: Time-delay, dual-element, current-limiting
• Interrupt Rating: 300 kA at 250 VAC, 100 kA at 125 VDC
• Response Time: 8 seconds at 500% rated current
• Physical Size: 2 in length x 0.56 in diameter
• Fuse Indicator: Non-indicating
• Terminal Type: Ferrule
• Certifications: CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-1/2SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 1
• AIC rating : 300kA@250V
• Diameter : 1.61
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712538053
• GTIN : 00051712538053
• Country of Origin : Mexico
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5 lb
• Certification : CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2, No. 248.12
