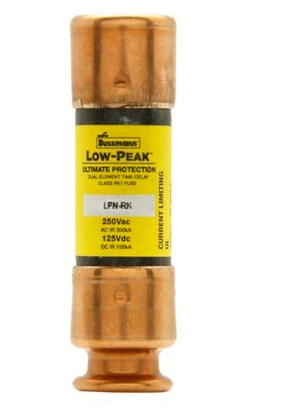

LPN-RK-1/10SP - Eaton Bussmann Series Class RK1 Time-Delay Dual-Element Fuse 0.1A 250VAC 125VDC Non-Indicating 300kAIC

LPN-RK-1/10SP

LPN-RK-1/10SP is a Bussmann Series Class RK1 time-delay, dual-element, current-limiting fuse designed for reliable circuit protection in demanding electrical environments.This Eaton fuse features a 0.1A (1/10A) amperage rating, 250VAC/125VDC voltage rating, and a 300kAIC interrupt rating at 250VAC. It is non-indicating, with ferrule end connections and a compact 0.56" x 2" cartridge body. The fuse is ideal for applications requiring high in-rush current protection and is UL Class RK1 certified.

• Amperage Rating: 0.1A (1/10A)
• Voltage Rating: 250VAC, 125VDC
• Interrupt Rating: 300kAIC at 250VAC, 100kAIC at 125VDC
• Fuse Type: Time-Delay, Dual-Element, Current-Limiting
• Series/Frame: Bussmann Series LPN-RK, Class RK1
• Mounting Type: Ferrule End x Ferrule End
• Fuse Indicator: Non-Indicating
• Physical Size: 0.56" x 2"
• Response Time: 8 seconds at 500% rated current
• Special Features: High in-rush current motor protection
• Certifications: UL Class RK1, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPN-RK-1/10SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 250
• Amperage : 1
• AIC rating : 300kA@250V
• Diameter : 1.1
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171253800
• GTIN : 00051712538008
• Dimensions : 2 in x 0.56 in x 0.56 in (Length/Depth x Height x Width)
• Weight : 0.5
