Product Info
- Manufacturer:Eaton
Description

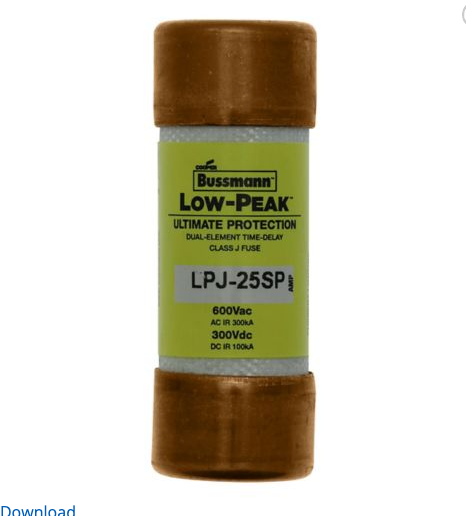

LPJ25SP
LPJ-25SP is a 25 Amp, 600 Volt AC Class J time-delay dual-element fuse designed for ultimate protection and current limiting.LPJ-25SP features a 10-second minimum time delay at 500% rated current, providing reliable protection against temporary overloads and transient surges. It has a high interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC, ensuring safe operation in demanding electrical environments. This non-indicating fuse is UL Listed and CSA Certified, suitable for industrial and power applications requiring Class J fuse protection.
- Amperage Rating: 25 A
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Type: Time Delay, Dual Element
- Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
- Physical Size: 0.81 in diameter x 2.25 in length
- Non-indicating fuse
- UL Listed and CSA Certified
- Class J Fuse
- Low-Peak series
Specifications
- Part Number: LPJ25SP
- Manufacturer : Eaton
- Brand : Bussmann
Product Data
- UPC : 051712523288
- GTIN : 00051712523288
- Weight : 5.19
