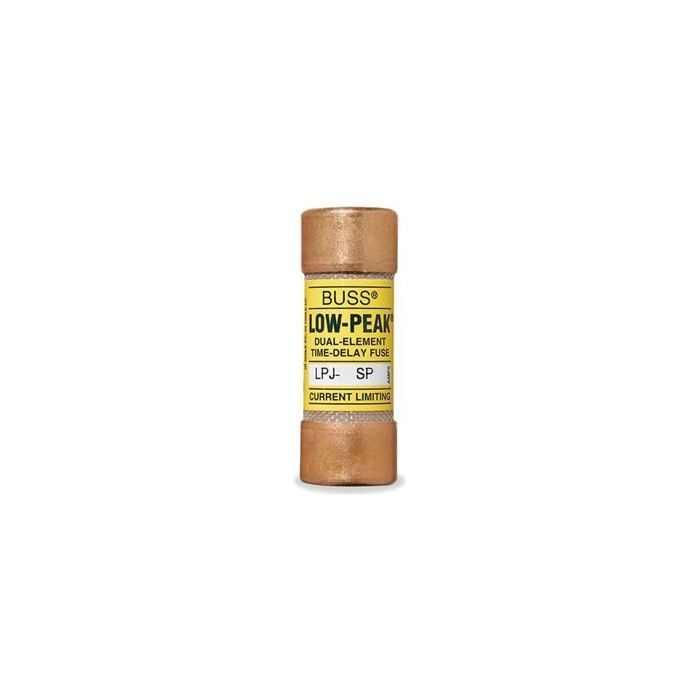

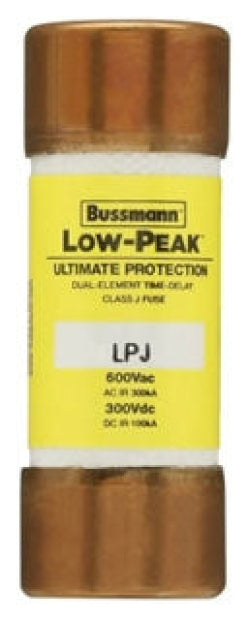

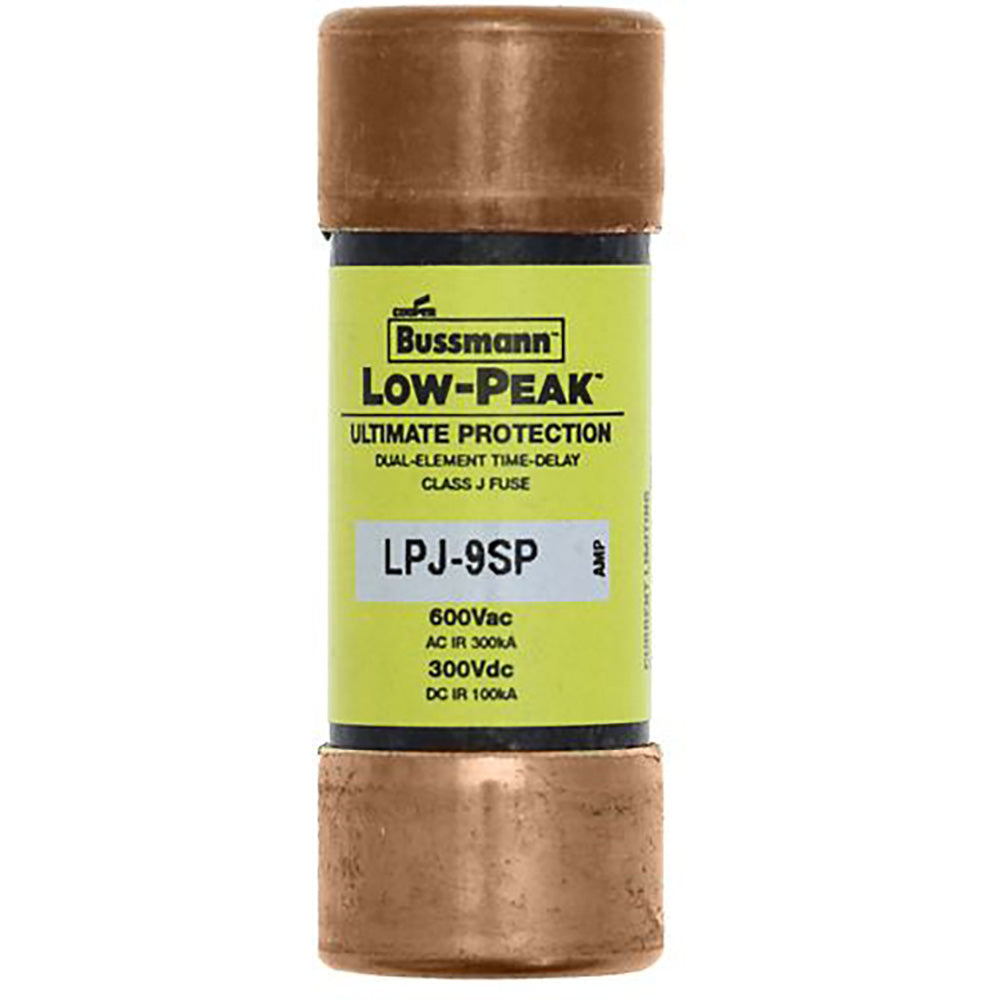

LPJ-9SP - Eaton Bussmann 9 Amp 600V AC/300V DC Class J Time-Delay Dual Element Current-Limiting Fuse, Non-Indicating, 300kA Interrupt Rating

LPJ-9SP

LPJ-9SP is a Class J, time-delay, dual-element, current-limiting fuse from Eaton Bussmann, designed for reliable circuit protection in demanding applications.

This non-indicating fuse offers a high interrupting rating and time-delay characteristics, making it suitable for circuits with inrush currents such as motors and transformers. It is UL listed, CSA certified, CE marked, and RoHS compliant for global use.

Key Specifications
• Amperage: 9 A
• Voltage: 600 V AC, 300 V DC
• Poles: 1
• Mounting Type: Ferrule (cylindrical)
• Interrupt Rating: 300,000 AIC RMS @ 600 V AC, 100,000 AIC @ 300 V DC
• Series/Frame: LPJ, Class J
• Trip Unit: Dual element, time-delay (10 sec minimum at 500% rating)
• Certifications: UL Listed (Class J, File E56412), CSA Certified (Class J, File 53787), CE, RoHS
• Body Size: 0.81" x 2.25"
• Non-indicating
• Packaging: Standard
• High degree of current limitation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-9SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 9
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523486
• GTIN : 00051712523486
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
