LPJ-90SPI - Eaton Bussmann Series 90 Amp 600VAC/300VDC Class J Dual-Element Time-Delay Indicating Fuse, 300 kA Interrupt Rating, Cartridge Blade Mount

LPJ-90SPI

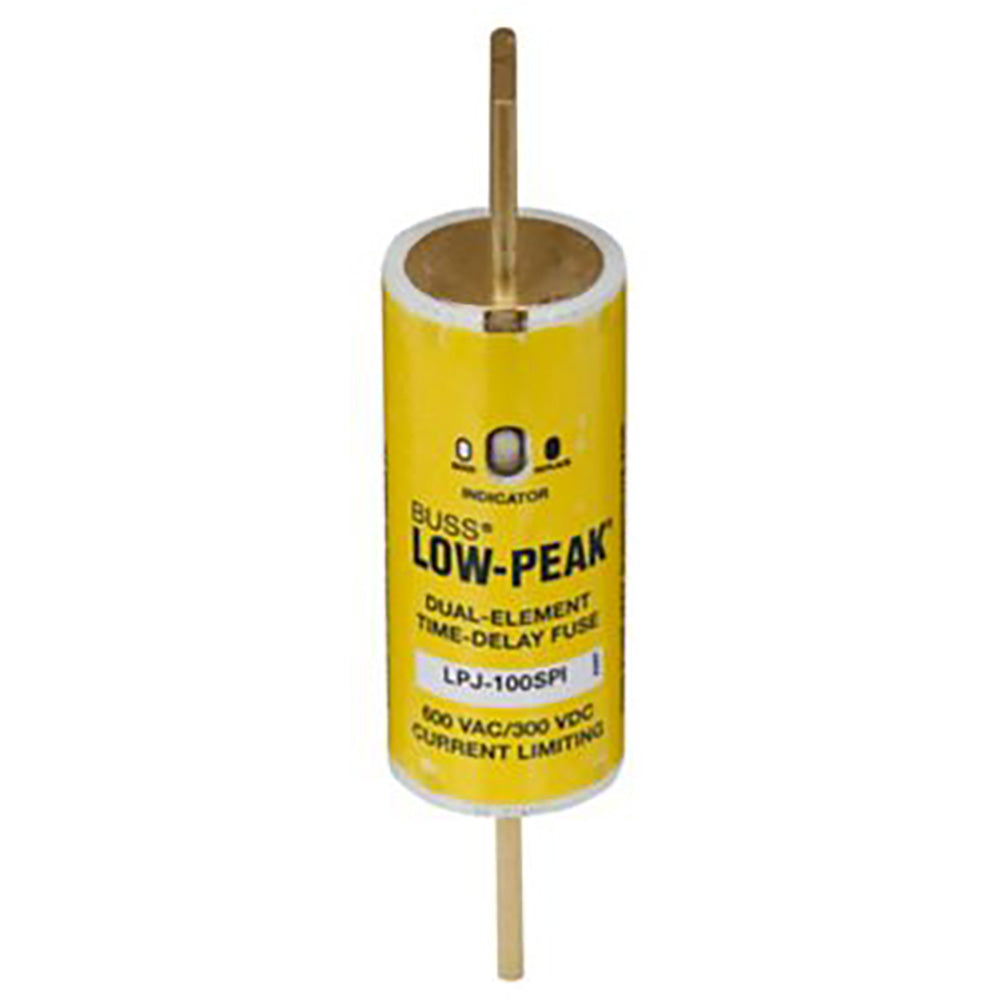

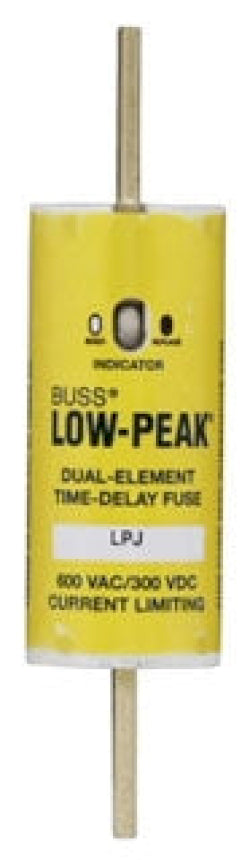

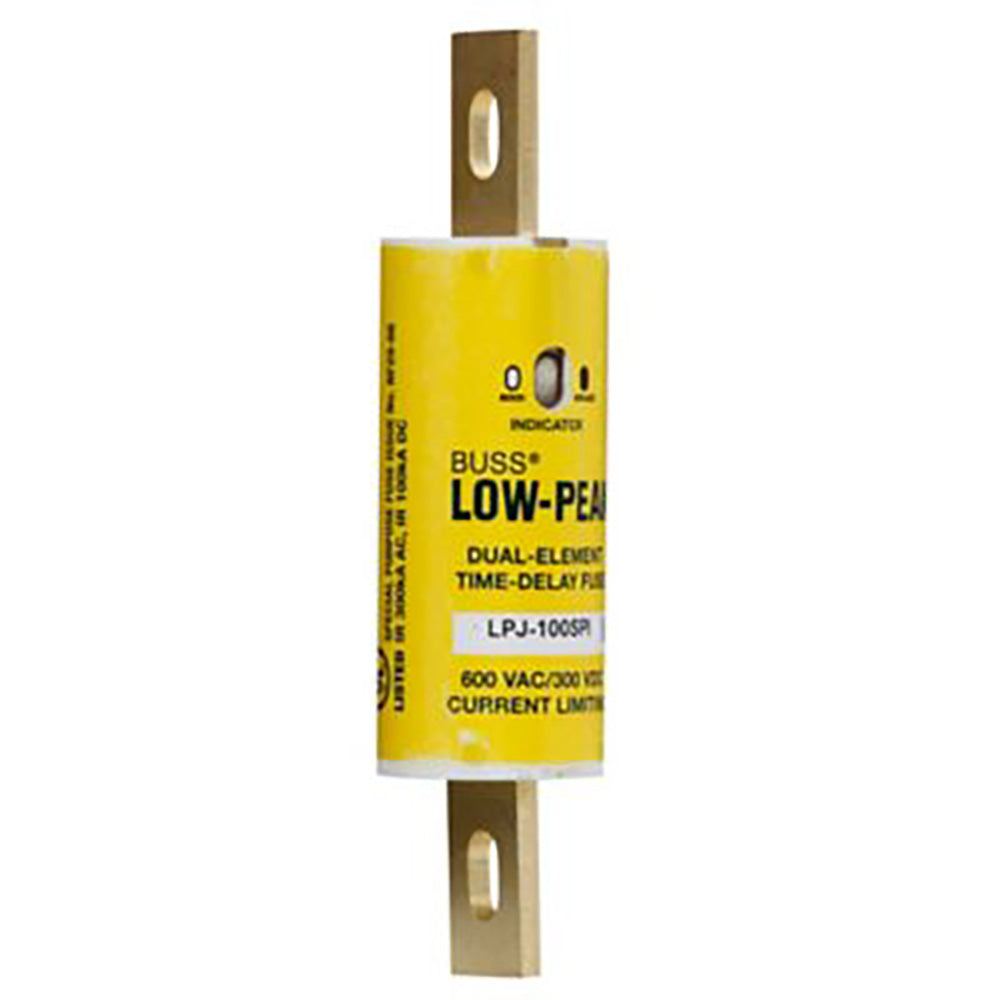

LPJ-90SPI is a Class J, dual-element, time-delay, indicating cartridge fuse from Eaton Bussmann Series, designed for high in-rush current motor protection and reliable circuit protection.

This fuse features a 90 amp rating, 600VAC/300VDC voltage rating, and a 300 kA interrupting rating at 600VAC (100 kA at 300VDC). It is current-limiting, non-renewable, and suitable for a wide range of industrial applications. The LPJ-90SPI is RoHS compliant and CE marked, ensuring adherence to international standards.

Key Specifications
• Part Number: LPJ-90SPI
• Manufacturer: Eaton
• Amperage: 90 A
• Voltage: 600 VAC, 300 VDC
• Poles: 1
• Mounting Type: Cartridge Blade
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Series/Frame: Bussmann Series LPJ
• Trip Unit: Dual-element, time-delay (10 seconds at 500% rating)
• Certifications: RoHS Compliant, CE Marked
• Fuse Indicator: Indicating
• Body Material: Melamine
• Dimensions: 1.13" x 4.63"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-90SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 90
• AIC rating : 300kA@600V
• Diameter : 1.13
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712627535
• GTIN : 00051712627535
• Country of Origin : Mexico
• Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
