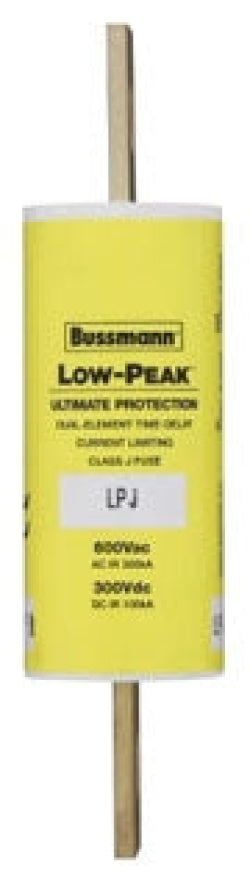

LPJ-90SP - Eaton Bussmann Series LPJ 90A 600VAC/300VDC Class J Time-Delay Dual-Element Current-Limiting Fuse, Non-Indicating, Blade Terminal, 300kA Interrupt Rating

LPJ-90SP

LPJ-90SP is a Class J, time-delay, dual-element, current-limiting fuse from Eaton Bussmann Series, designed for reliable circuit protection in demanding applications.

This non-indicating fuse features a 90A rating, 600VAC/300VDC voltage, and a high 300kA interrupting rating at 600VAC (100kA at 300VDC). It is engineered for high in-rush current motor protection and offers a 10-second minimum delay at 500% of rated current. The LPJ-90SP uses a bolted blade terminal connection for secure mounting and is RoHS compliant and CE marked.

Key Specifications
• Part Number: LPJ-90SP
• Manufacturer: Eaton Bussmann
• Amperage: 90A
• Voltage: 600VAC, 300VDC
• Poles: Not specified (fuse, not a breaker)
• Mounting Type: Bolted blade terminal
• Interrupt Rating: 300kA at 600VAC, 100kA at 300VDC
• Series/Frame: LPJ, Class J
• Trip Unit: Dual-element, time-delay (10 sec at 500%)
• Certifications: cULus Listed, UL 248-8, CSA C22.2 No. 248.8, CE, RoHS compliant
• Connection: Blade terminal
• Indicator: Non-indicating
• Application: High in-rush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-90SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 90
• AIC rating : 300kA@600V
• Diameter : 1.13
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523394
• GTIN : 00051712523394
• Country of Origin : Mexico
• Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
