LPJ-8SP - Eaton Bussmann 8 Amp 600V AC 300V DC Class J Time-Delay Dual Element Current-Limiting Non-Indicating Fuse

LPJ-8SP

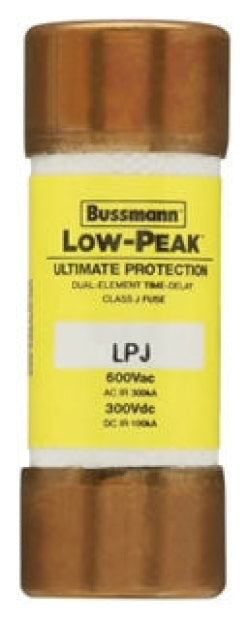

LPJ-8SP is an Eaton Bussmann Series Class J, time-delay, dual-element, current-limiting fuse designed for reliable circuit protection.

This non-indicating cartridge fuse offers a high interrupting rating and is ideal for applications requiring protection against high in-rush currents, such as motor circuits. It features a compact, ferrule-end design for easy installation and is compliant with major safety standards.

Key Specifications

• Amperage: 8 A
• Voltage: 600 V AC, 300 V DC
• Poles: Single
• Mounting Type: Cartridge, ferrule end x ferrule end
• Interrupt Rating: 300 kA at 600 V AC, 100 kA at 300 V DC
• Series/Frame: LPJ, Class J
• Trip Unit: Time-delay, dual element
• Certifications: UL Listed (Class J), CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds (minimum) at 500% of rated current
• Physical Size: 0.81" x 2.25"
• Non-indicating
• Packaging: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-8SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 8
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523479
• GTIN : 00051712523479
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
