Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPJ-80SPI

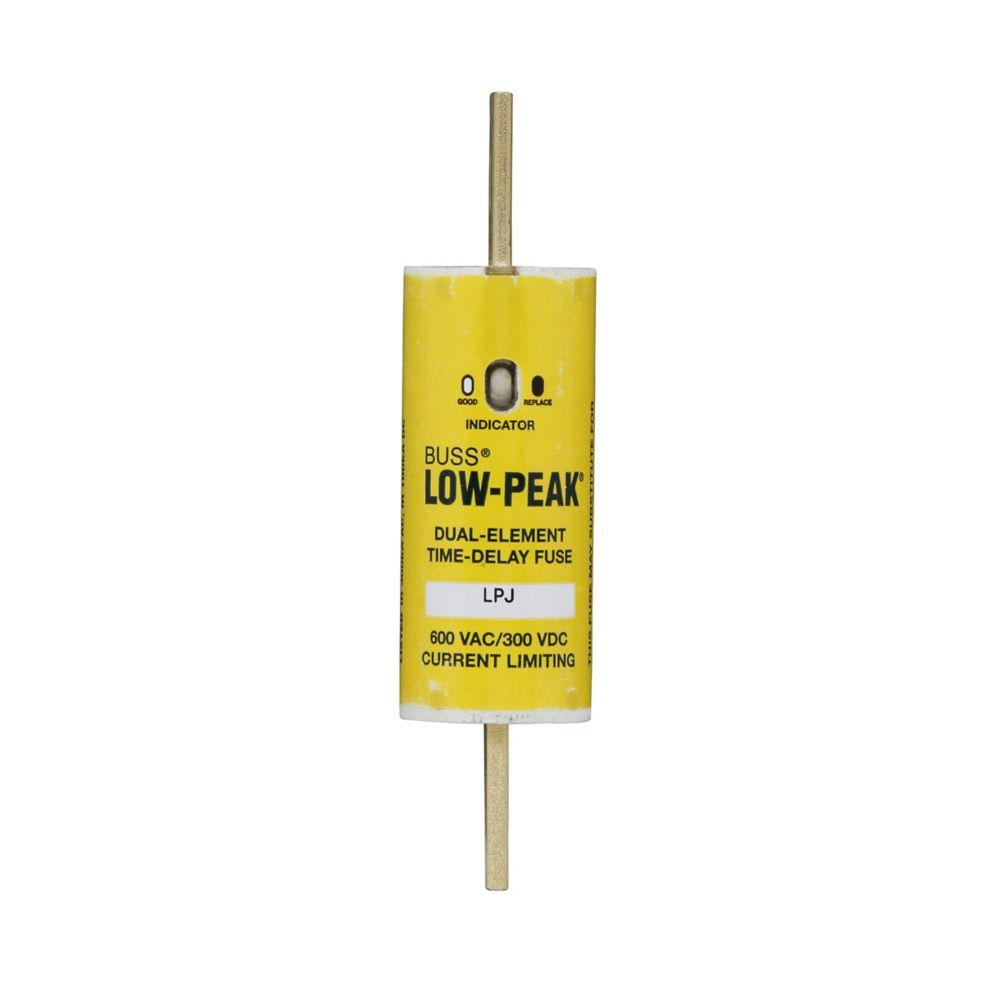

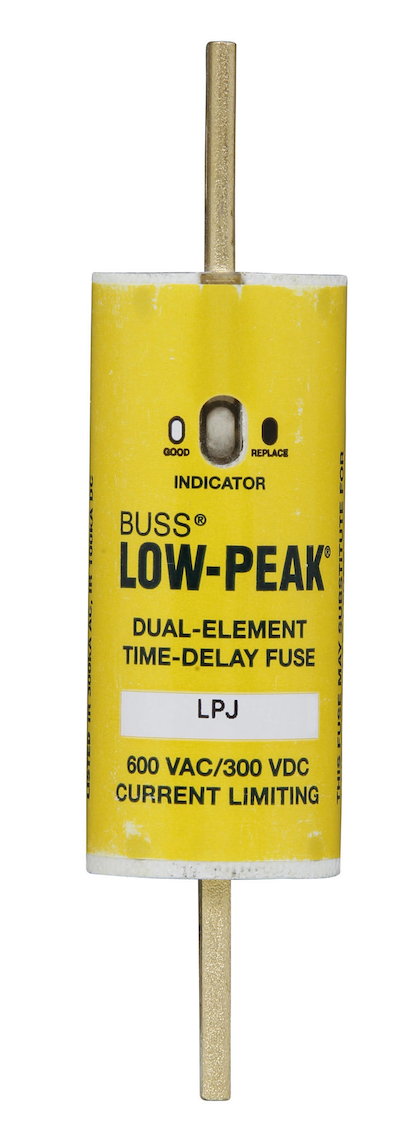

LPJ-80SPI is an Eaton Class J Low-Peak fuse rated for 80 amps and 600 volts AC, designed for reliable circuit protection with time-delay and dual-element technology.This fuse features a bolted blade end mounting type and an indicating window for easy status monitoring. It provides a high interrupting rating of 300,000 amps at 600 volts AC, ensuring safe interruption of fault currents. The LPJ series fuse is UL listed and designed for use in industrial and commercial electrical systems requiring Class J protection.
- Amperage: 80 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Time-Delay, Dual Element
- Series/Frame: Low-Peak Class J
- Mounting Type: Bolted Blade End
- Interrupting Rating: 300 kA at 600 VAC
- Indicator: Element Window
- Certifications: UL Listed
- Physical Size: 1.13 in x 4.63 in
Specifications
- Part Number: LPJ-80SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 80
- AIC rating : 300kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712627528
- GTIN : 00051712627528
- Country of Origin : Mexico
- Dimensions : 4.63 in x 1.13 in x 1.13 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
