2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPJ-80SP

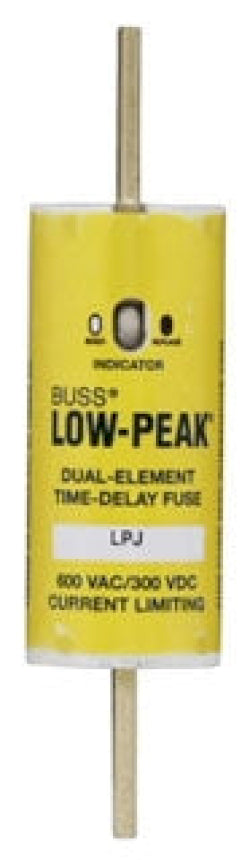

LPJ-80SP is an Eaton Bussmann Class J fuse providing 80 amps current rating with dual-element time-delay protection for industrial applications.
This fuse features a voltage rating of 600VAC and 300VDC, a 1-pole design, and a high interrupting rating of 300kAIC. It offers a 10-second time delay at 500% rated load, ensuring reliable protection against short circuits and overloads. The fuse is non-indicating and designed for use in standard Class J fuse blocks, delivering current limiting performance to reduce damage and downtime.
- Key Specifications
- Amperage: 80 Amps
- Voltage Rating: 600VAC / 300VDC
- Poles: 1-Pole
- Interrupting Rating: 300,000 Amps (300kAIC)
- Fuse Class: Class J
- Time Delay: Dual-element, 10 second minimum at 500% load
- Physical Size: 1.13 inch diameter x 4.63 inch length
- Non-Indicating Type
- Mounting: Fits standard Class J fuse blocks
- Standards: UL Listed
- Part Number: LPJ-80SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 80
- AIC rating : 300kA@600V
- Diameter : 1.13
- Class Rating : J
- Barrels : 1
- UPC : 051712523387
- GTIN : 00051712523387
- Country of Origin : Mexico
- Dimensions : x 4-5/8 in x
- Weight : 1
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
