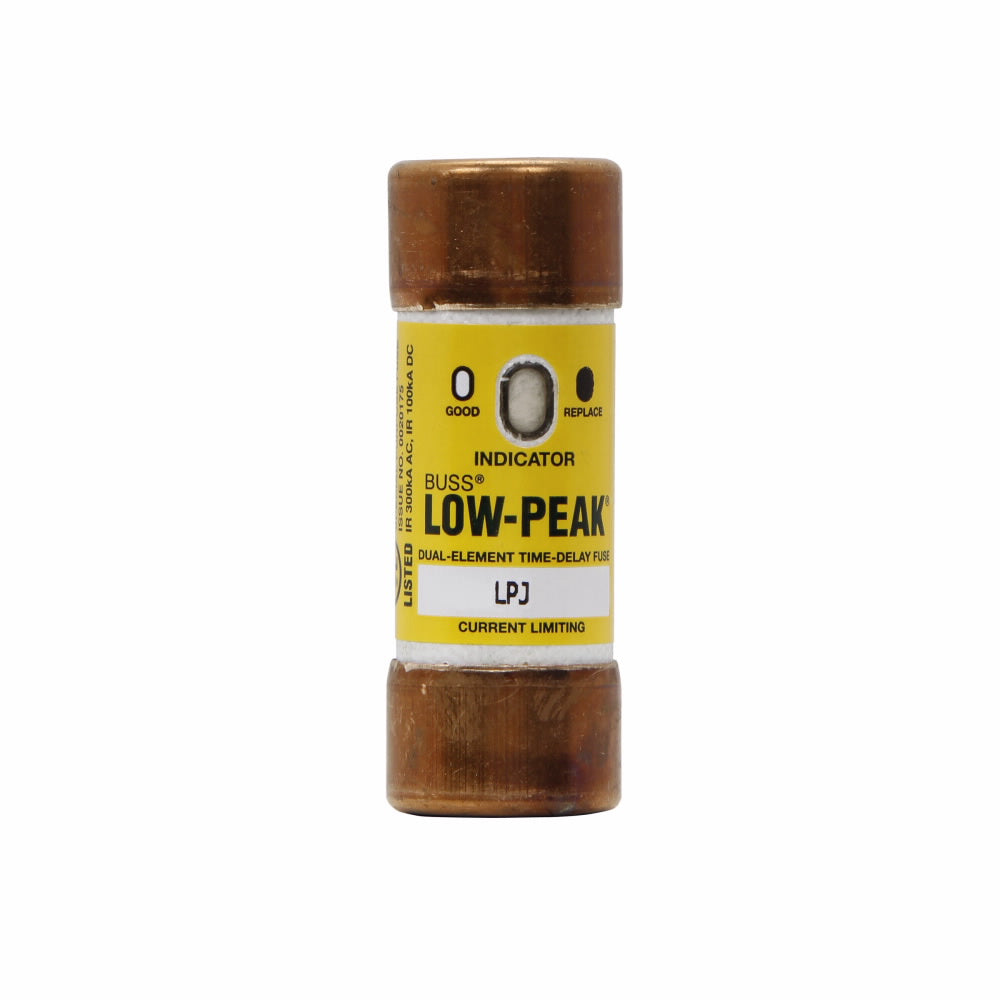

LPJ-7SPI - Eaton 7 Amp 600V Class J Dual Element Time Delay Fuse with Indicator

LPJ-7SPI

LPJ-7SPI is a 7 Amp, 600 Volt AC Class J dual element time delay fuse with an indicator for open fuse condition. LPJ-7SPI features a cartridge mounting type and provides a high degree of current limitation with a 10 second minimum time delay at 500% rating. It has an interrupting rating of 300,000 AIC RMS at 600 VAC and 100,000 AIC at 300 VDC, making it suitable for protecting electrical circuits in industrial and commercial applications. The fuse is UL Listed Special Purpose (Guide JFHR) and CSA Certified, meeting rigorous safety and performance standards.

• Amperage: 7 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Class: J
• Time Delay: 10 seconds minimum at 500% rating
• Dual Element
• Mounting Type: Cartridge
• Interrupting Rating: 300,000 AIC at 600 VAC, 100,000 AIC at 300 VDC
• Indicating Fuse (open fuse indicator)
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class J per CSA 22.2 No. 248.8
• Physical Size: 0.81" x 2.25"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-7SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 75
• AIC rating : 300kA@600V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171262824
• GTIN : 00051712628242
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
