LPJ-7SP - Eaton Bussmann 7A 600VAC/300VDC Class J Time-Delay Dual-Element Fuse 300kAIC Interrupt Rating

LPJ-7SP

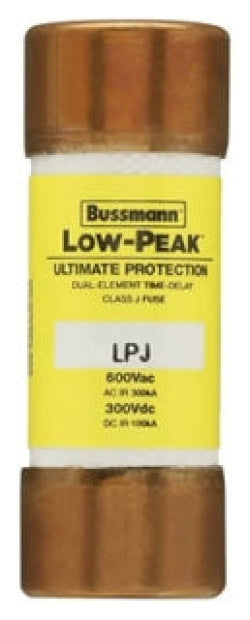

LPJ-7SP is a 7 Amp, 600 VAC / 300 VDC Class J time-delay dual-element fuse from Eaton Bussmann series designed for high interrupting capacity and motor protection.This LPJ-7SP fuse features a 300,000 AIC interrupt rating at 600 VAC and 100,000 AIC at 300 VDC, providing reliable current limiting and time-delay protection for circuits with high inrush currents. It is a non-indicating fuse with ferrule end connections, dual-element construction, and UL Class J certification. The fuse measures approximately 0.81 inches wide by 2.25 inches long and complies with CE and RoHS standards.

Key Specifications
• Amperage Rating: 7 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 300 kAIC at 600 VAC, 100 kAIC at 300 VDC
• Fuse Type: Time-Delay, Dual-Element, Current Limiting
• Class: Class J
• Connection: Ferrule End x Ferrule End
• Fuse Indicator: Non-Indicating
• Dimensions: 0.81" W x 2.25" L
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds at 500% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-7SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 7
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523462
• GTIN : 00051712523462
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
