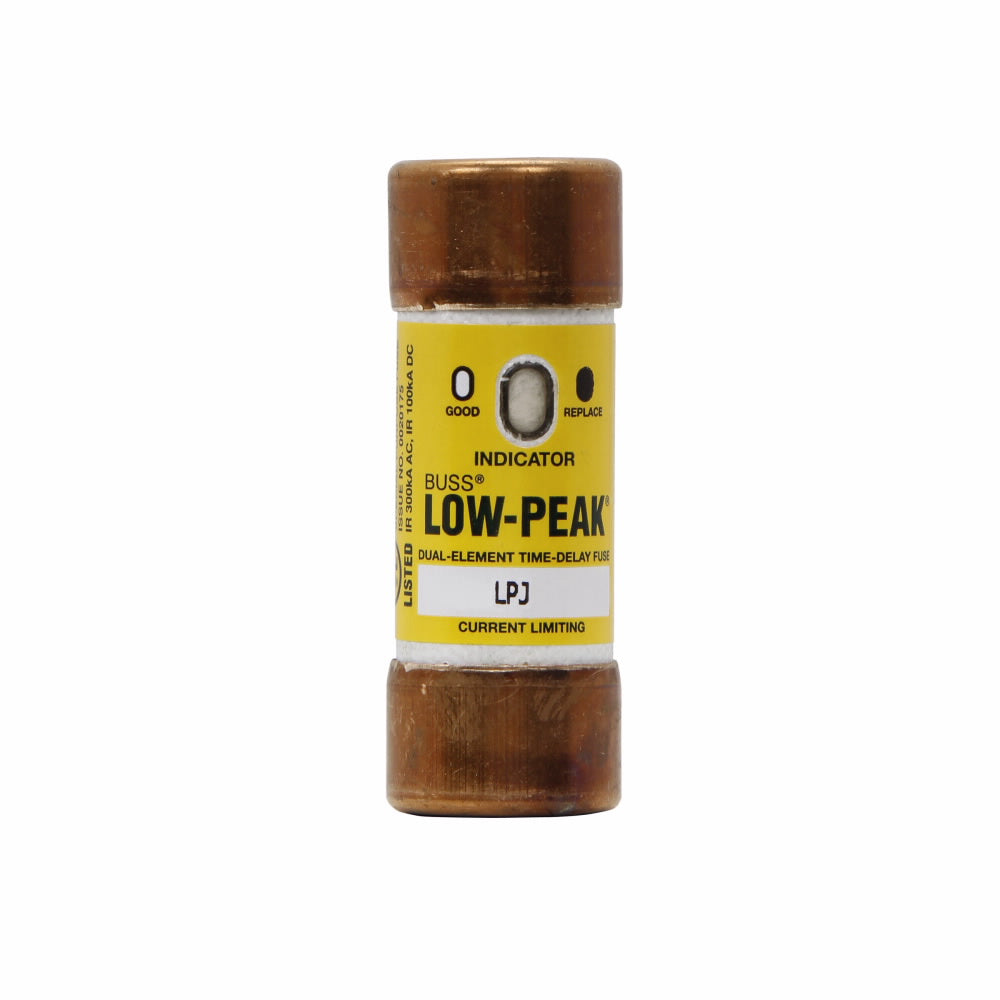

LPJ-6SPI - Eaton Bussmann 6A 600V Class J Time Delay Indicating Fuse Dual Element 300kA Interrupt Rating

LPJ-6SPI

LPJ-6SPI is a 6 Amp, 600 Volt AC Class J time-delay indicating fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element fuse features a 10-second minimum time delay at 500% rated current, high current limitation, and an interrupting rating of 300,000 AIC RMS at 600 VAC. It is UL Listed (File E56412), CSA Certified, and suitable for both AC (600V) and DC (300V, non-indicating versions only) applications. The fuse measures 0.81" x 2.25" and includes an open fuse indicator for easy status monitoring.

Key Specifications
• Amperage: 6 Amps
• Voltage Rating: 600 VAC / 300 VDC*
• Fuse Class: J (LPJ series)
• Time Delay: 10 seconds minimum at 500% rating
• Interrupting Rating: 300,000 AIC RMS @ 600 VAC
• Dual Element, Current Limiting
• Indicating Fuse with Open Fuse Indicator
• Physical Size: 0.81" diameter x 2.25" length
• UL Listed Special Purpose, CSA Certified
• Mounting Type: Ferrule end x ferrule end

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-6SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712627481
• GTIN : 00051712627481
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.101
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
