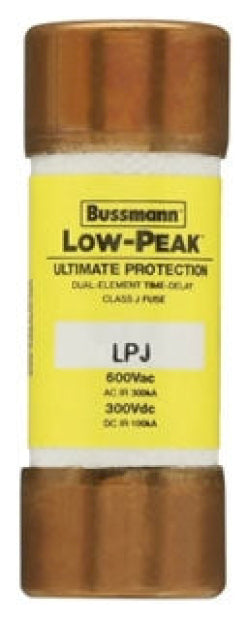

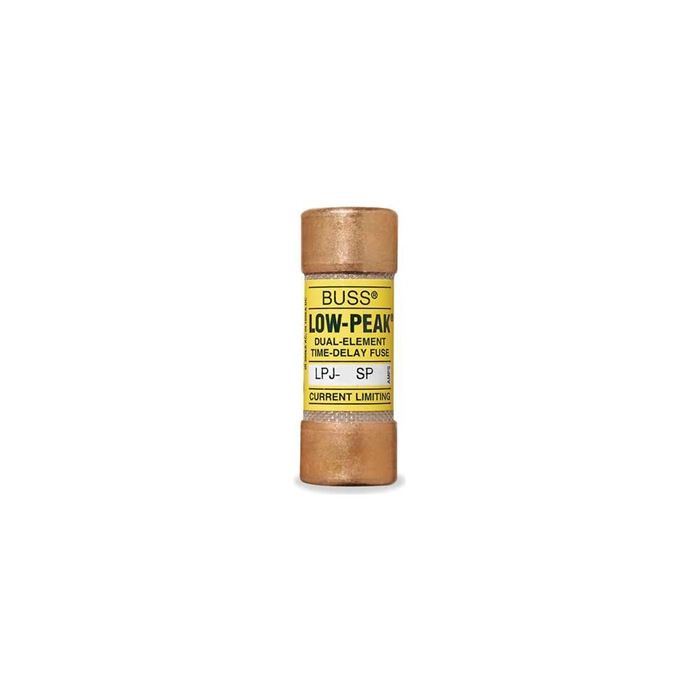

LPJ-6SP - Eaton Bussmann 6 Amp 600V AC Class J Time-Delay Dual Element Fuse

LPJ-6SP

LPJ-6SP is a 6 Amp, 600 Volt AC Class J time-delay fuse from Eaton Bussmann designed for high inrush current motor protection.This fuse features a dual-element, current-limiting design with a 10-second time delay at 500% rated current, providing reliable protection for electrical circuits. It has an interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. The fuse is non-indicating with ferrule end connections and complies with CE marking and RoHS standards.

• Amperage Rating: 6 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: Class J
• Fuse Type: Time-delay, dual element, current limiting
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Dimensions: 0.81" diameter x 2.25" length
• Certifications: CE Marked, RoHS Compliant, UL Listed, CSA Certified
• Special Features: High inrush current motor protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-6SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 6
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523264
• GTIN : 00051712523264
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
