LPJ-60SPI - Eaton 60A 600V Class J Time Delay Indicating Fuse Dual Element 300kA Interrupt Rating

LPJ-60SPI

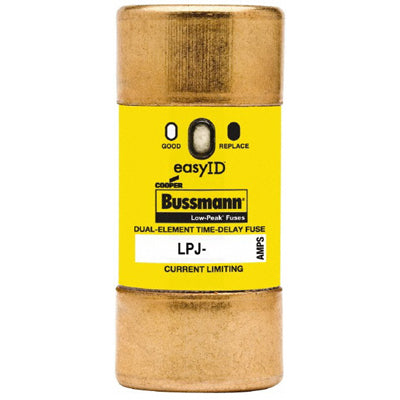

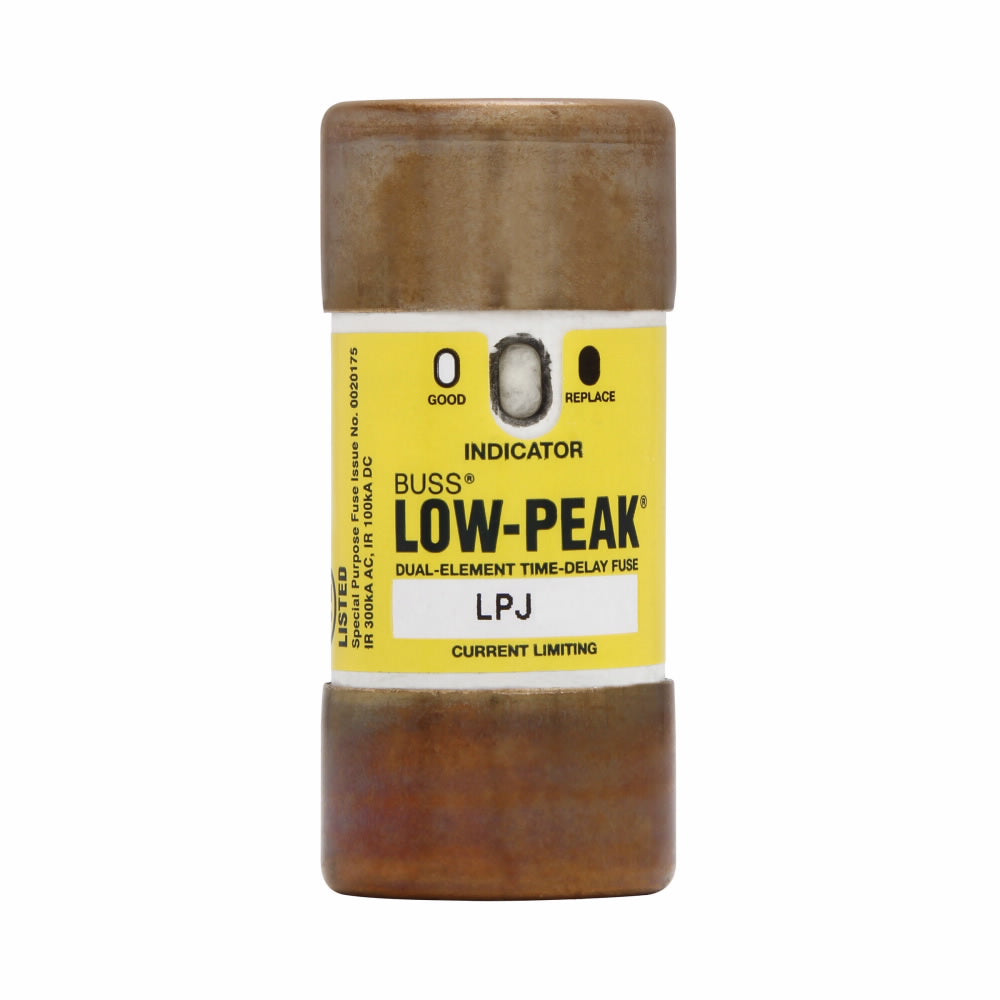

LPJ-60SPI is an Eaton Bussmann Series Class J time-delay indicating fuse rated for 60 amps and 600 volts AC.This dual-element current limiting fuse features a 10-second minimum time delay at 500% overload, providing high inrush current motor protection. It has an interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. The fuse is UL Listed Special Purpose, CSA Certified, and RoHS compliant. It connects ferrule end to ferrule end and measures approximately 1.06 inches by 2.38 inches.

• Amperage Rating: 60 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: J
• Fuse Type: Time Delay, Dual Element
• Interrupt Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Indicating Fuse
• Connection: Ferrule end x ferrule end
• Dimensions: 1.06" x 2.38"
• UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certified, Class 1422-02, File 53787
• RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-60SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 60
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626408
• GTIN : 00051712626408
• Country of Origin : Mexico
• Dimensions : 1.06 in x 2.36 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
