LPJ-600SPI - Eaton Bussmann Class J 600A 600V Time-Delay Dual Element Fuse with Indicator

LPJ-600SPI

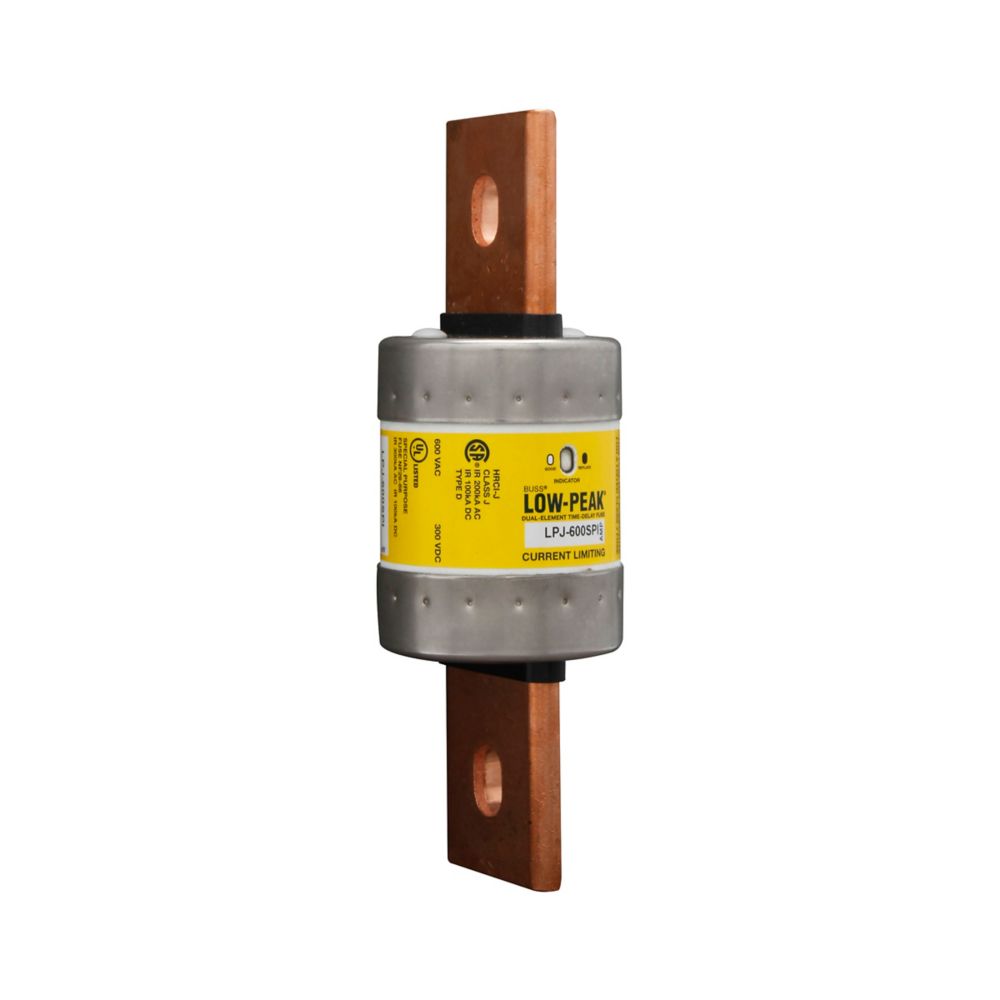

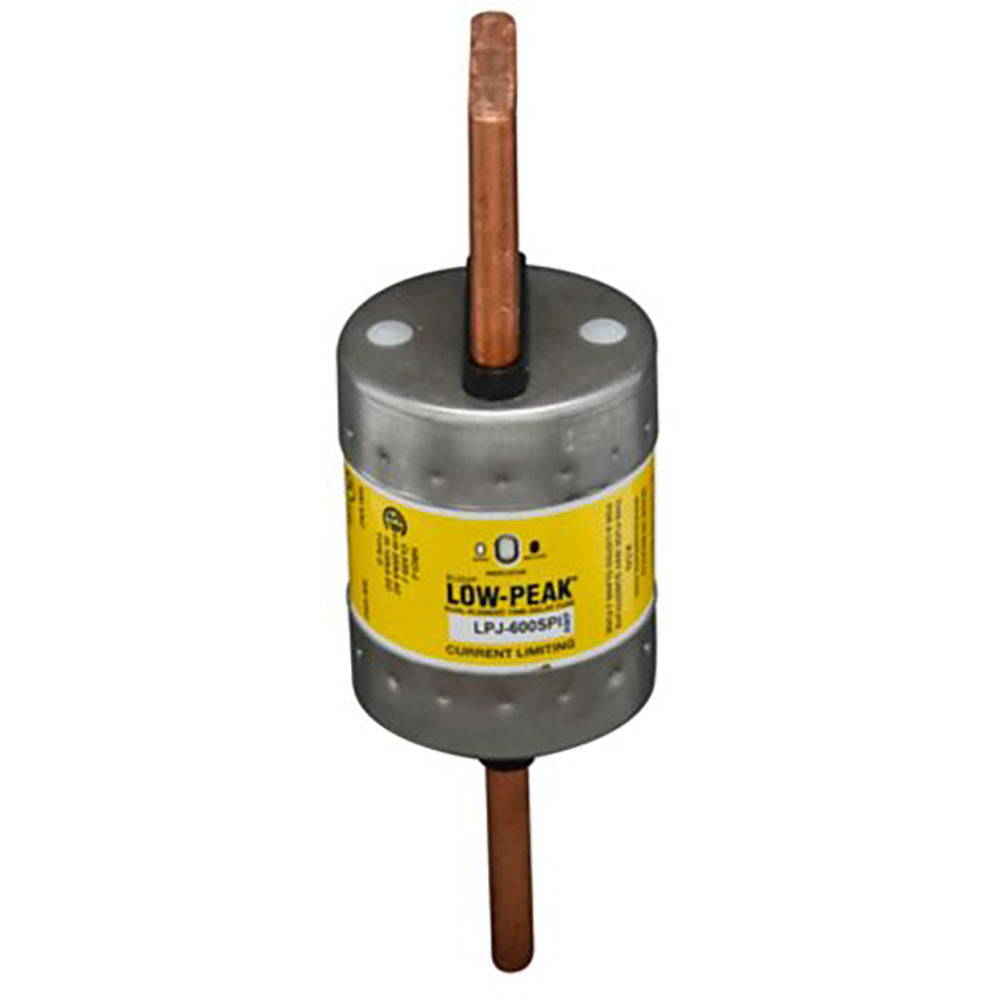

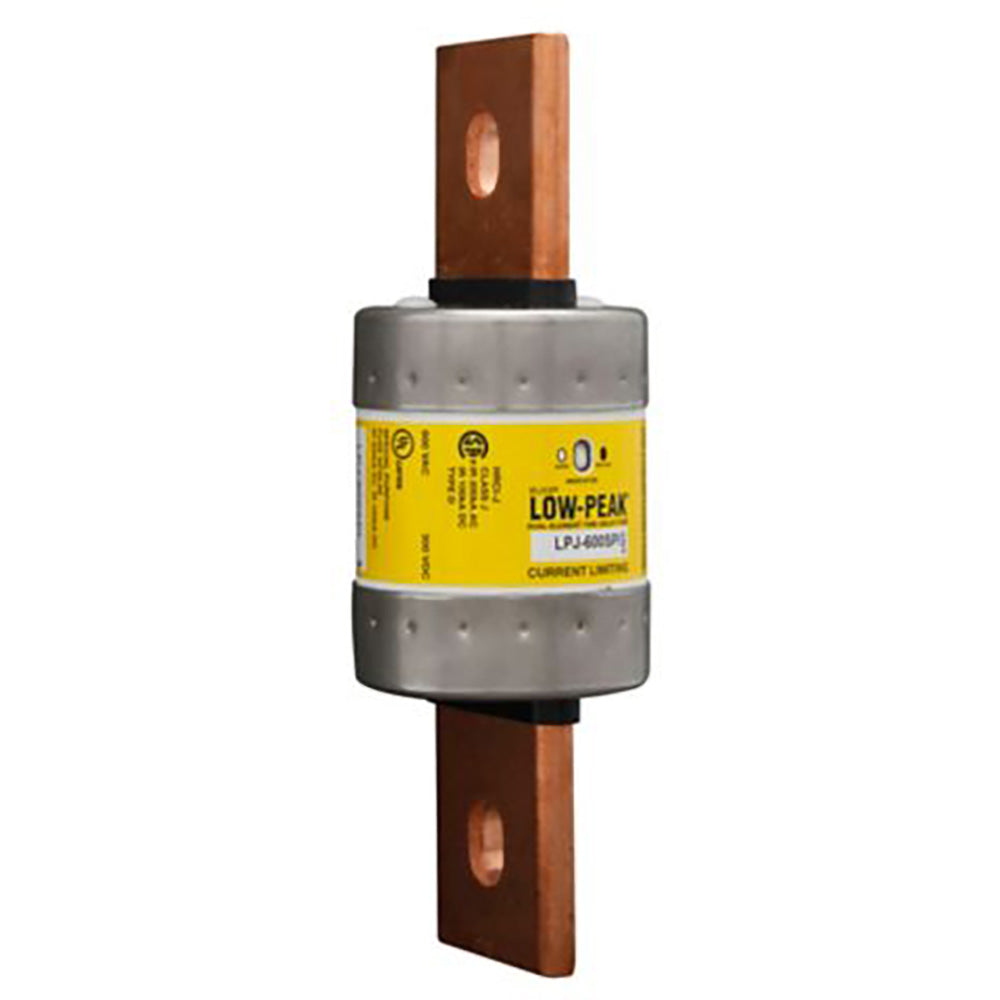

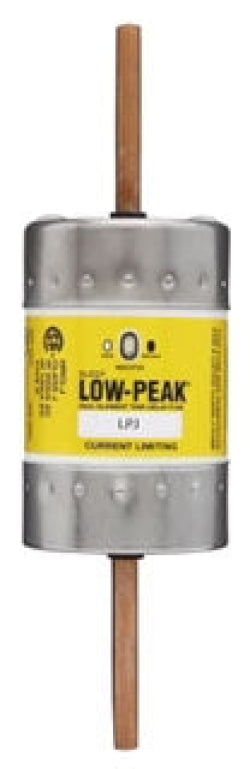

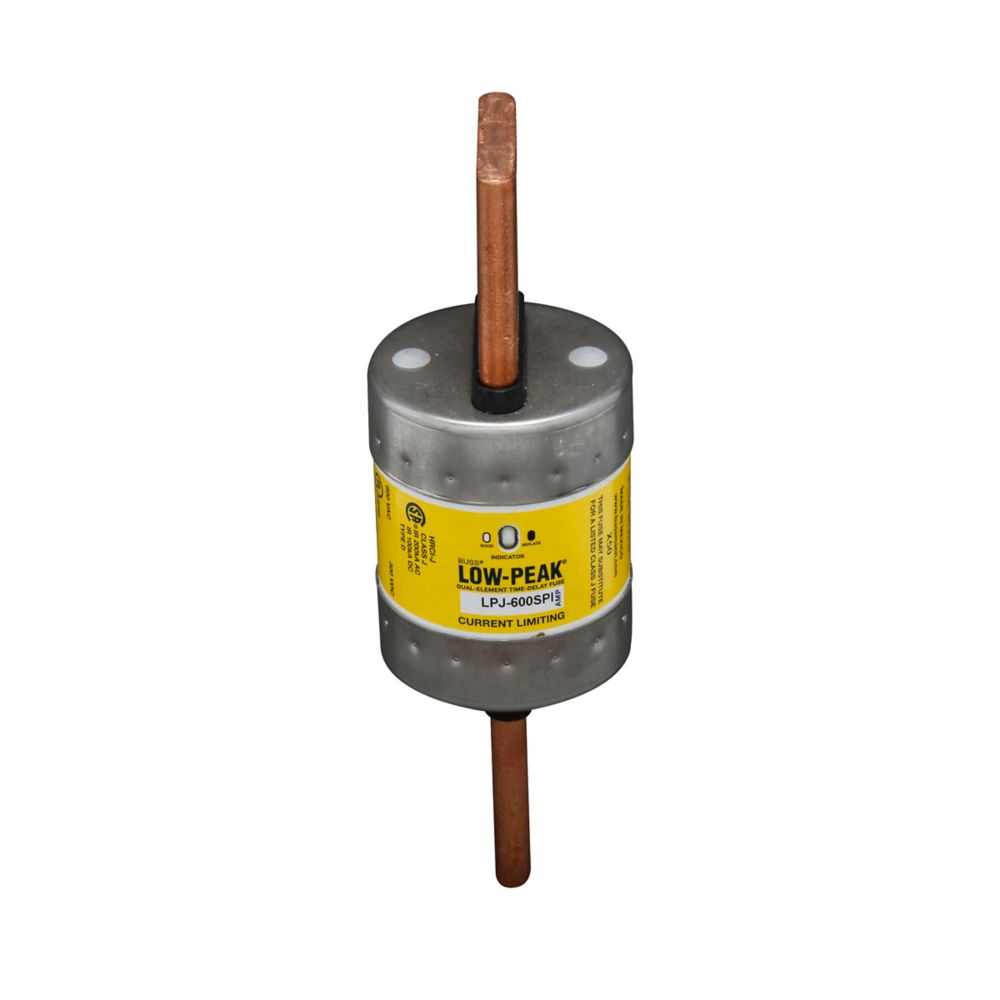

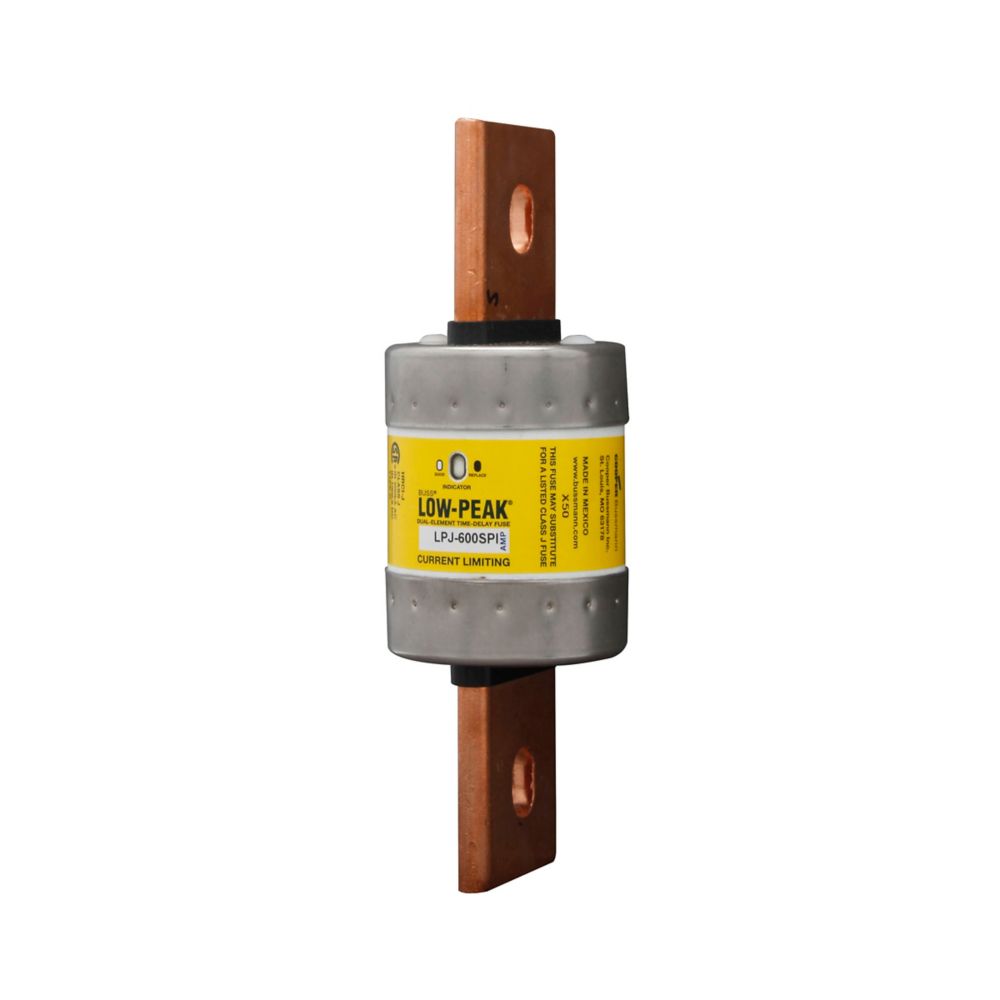

LPJ-600SPI is a Eaton Bussmann Class J time-delay, dual-element current-limiting fuse rated for 600 amps and 600 volts AC with an indicator.

This fuse features a bolted blade end connection, a 300 kA interrupting rating at 600 VAC, and 100 kA at 300 VDC. It provides high inrush current motor protection with a 10-second minimum time delay at 500% rated current. The fuse is CE marked, RoHS compliant, and UL listed as a special purpose fuse with CSA certification. Its dimensions are approximately 2.5 x 8 x 2.5 inches, weighing about 1.39 pounds.

Key Specifications
• Amperage Rating: 600 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time-delay, dual-element current-limiting
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: With indicator
• Class: Class J
• Response Time: 10 seconds minimum at 500% rated current
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Dimensions (HxWxD): 2.5 x 8 x 2.5 inches
• Weight: 1.39 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-600SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 600
• AIC rating : 300kA@600V
• Diameter : 2.6
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626484
• GTIN : 00051712626484
• Country of Origin : Mexico
• Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 1.39
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
