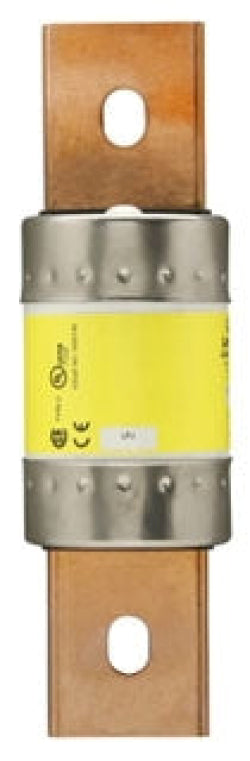

LPJ-600SP - Eaton Bussmann Series Class J 600A 600VAC Dual Element Time-Delay Fuse

LPJ-600SP

This fuse offers fast short-circuit protection with a 10-second minimum time delay at 500% rated current, current-limiting capability, and an interrupting rating of 300kA at 600VAC. It is a non-indicating, bolted blade end fuse suitable for Class J fuse blocks and holders. The fuse complies with UL Class J standards and is designed to reduce inventory needs by covering a wide range of applications with high performance and safety.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600VAC / 300VDC
• Interrupting Rating: 300kA at 600VAC
• Fuse Type: Dual-element, time-delay
• Series: Bussmann LPJ (Class J)
• Poles: 1-pole
• Mounting Type: Bolted blade end
• Non-indicating fuse
• Standards: UL Class J certified
• Physical Size: Approx. 2.6 in diameter x 8 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPJ-600SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 600
• AIC rating : 300kA@600V
• Diameter : 2.6
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 051712522878
• GTIN : 00051712522878
• Country of Origin : Mexico
• Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 1.39
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
