Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

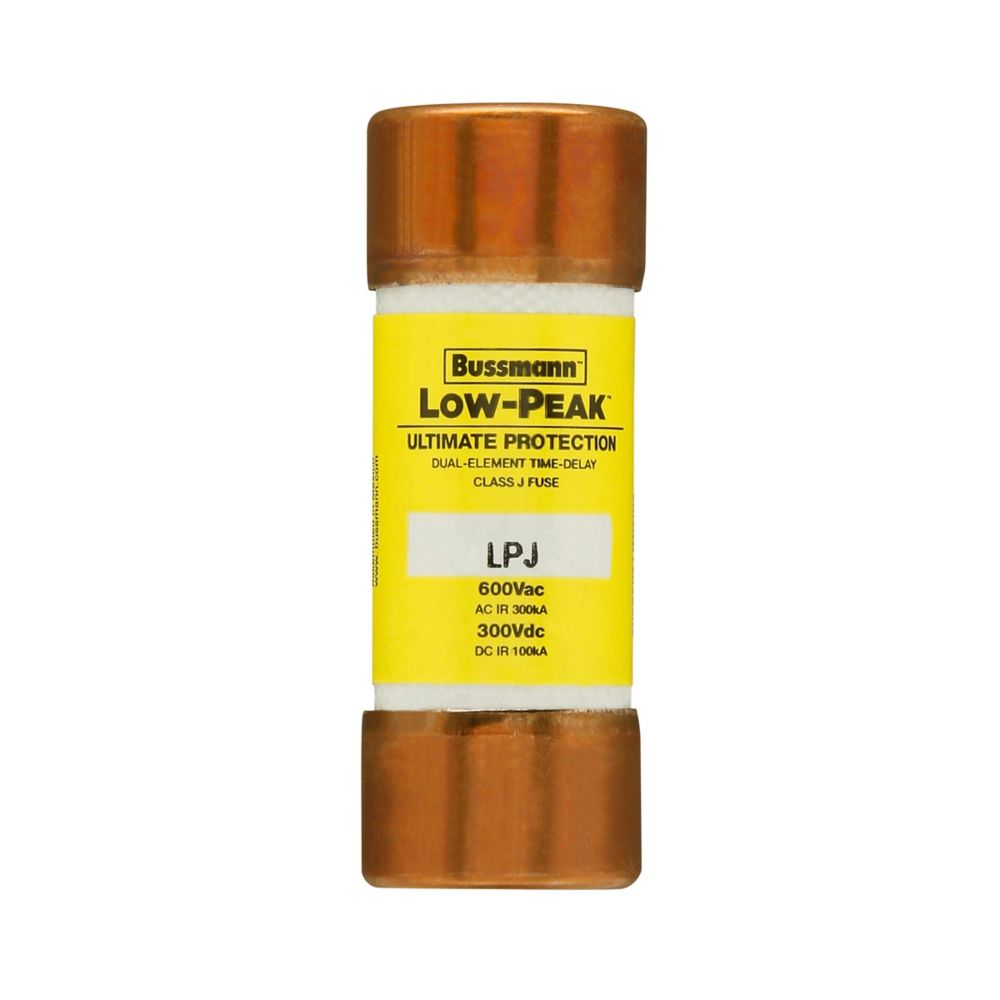

LPJ-5SP
LPJ-5SP is a Bussmann Series Class J dual-element, time-delay, current-limiting fuse rated for 5A at 600VAC and 300VDC, designed for high in-rush motor protection and industrial applications. This fuse features a non-indicating design, ferrule end connections, and a robust interrupting rating of 300kAIC at 600VAC and 100kAIC at 300VDC. It is UL listed, CSA certified, CE marked, and RoHS compliant, making it suitable for a wide range of electrical protection needs.
- Part Number: LPJ-5SP
- Manufacturer: Bussmann, Eaton
- Amperage Rating: 5A
- Voltage Rating: 600VAC, 300VDC
- Fuse Type: Class J, Dual-Element, Time-Delay
- Interrupt Rating: 300kAIC at 600VAC, 100kAIC at 300VDC
- Mounting Type: Ferrule End
- Series: Low-Peak LPJ
- Response Time: 10 seconds at 500% rating
- Physical Size: 0.81" x 2.25"
- Weight: 0.19 lb
- Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
Specifications
- Part Number: LPJ-5SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 5
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712522823
- GTIN : 00051712522823
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.19
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
