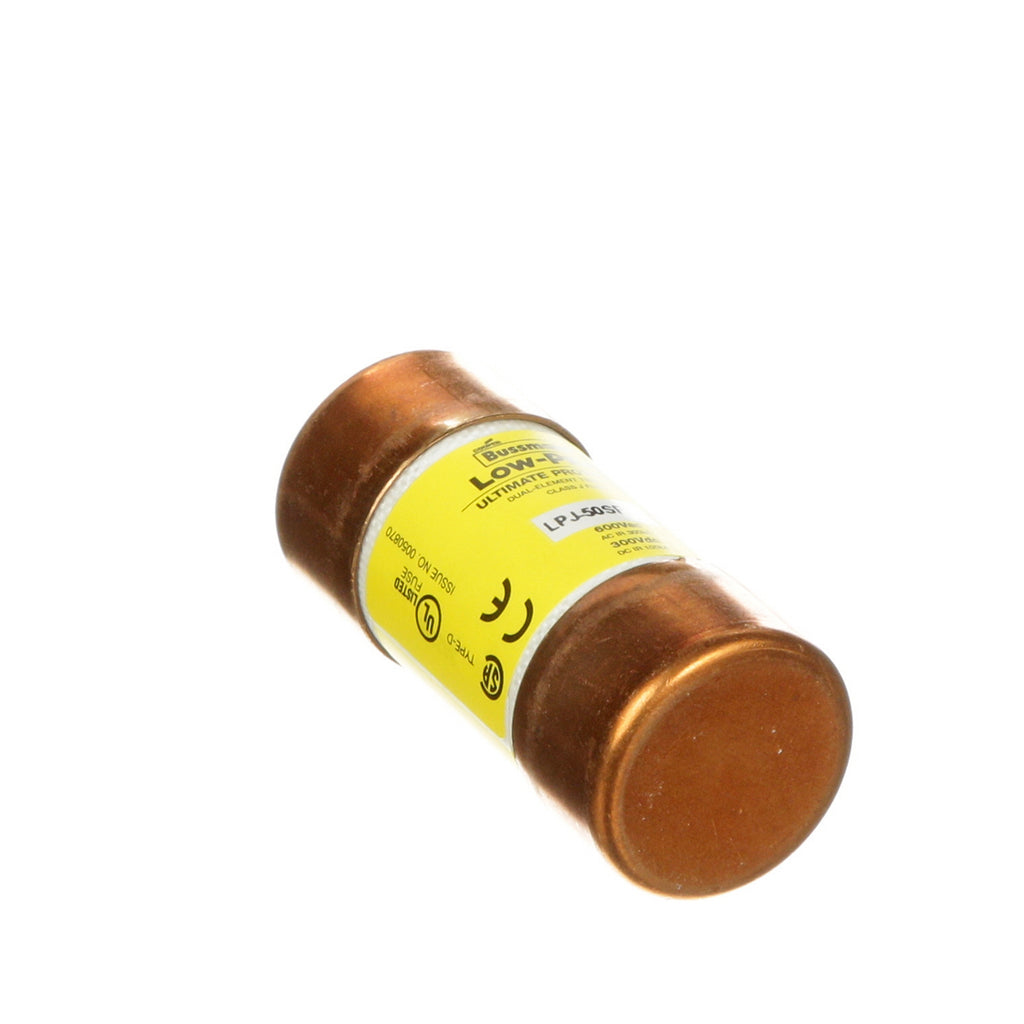

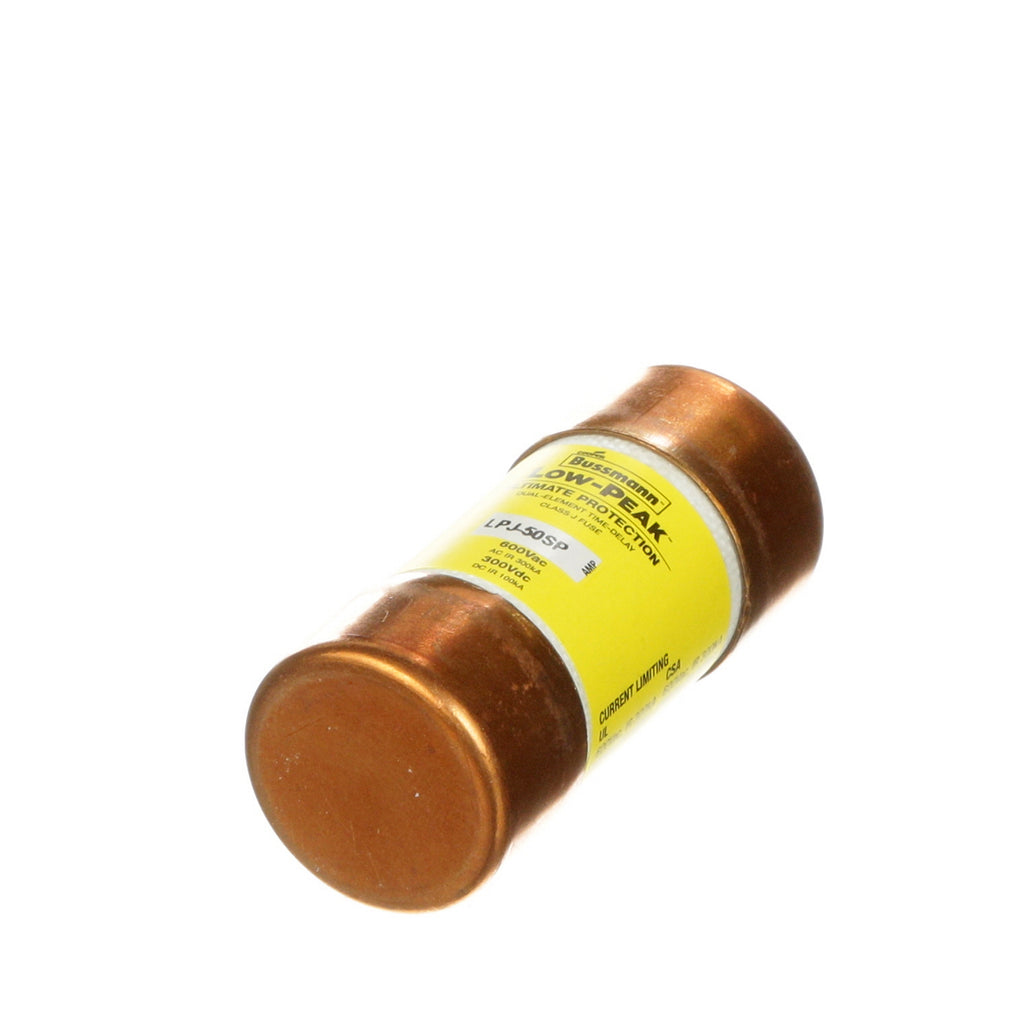

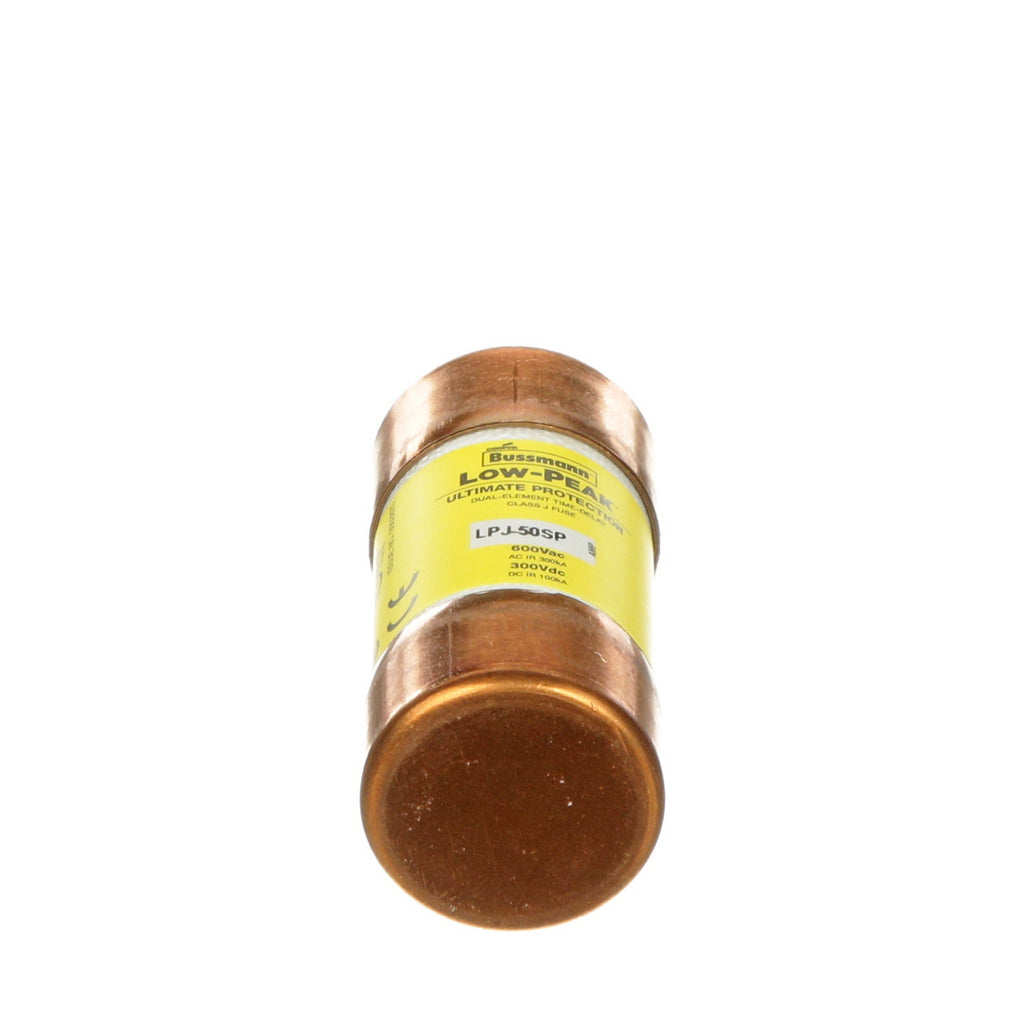

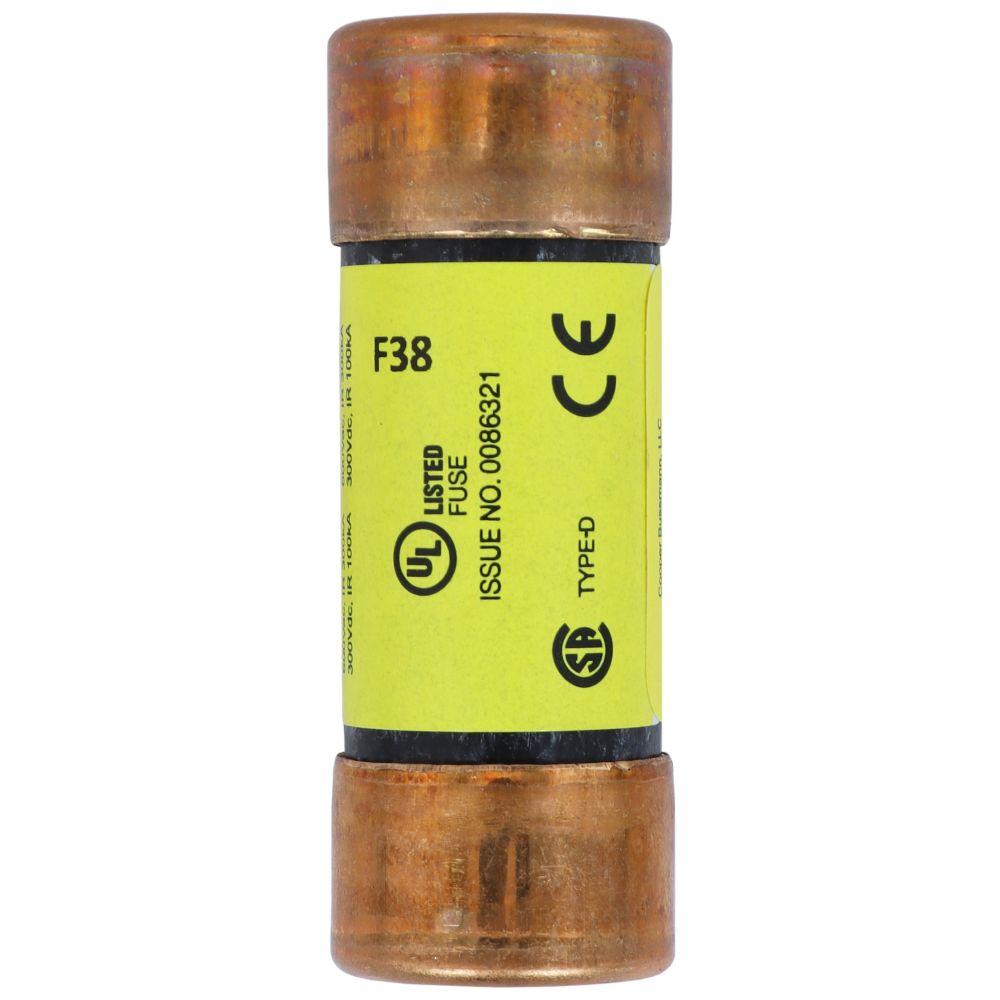

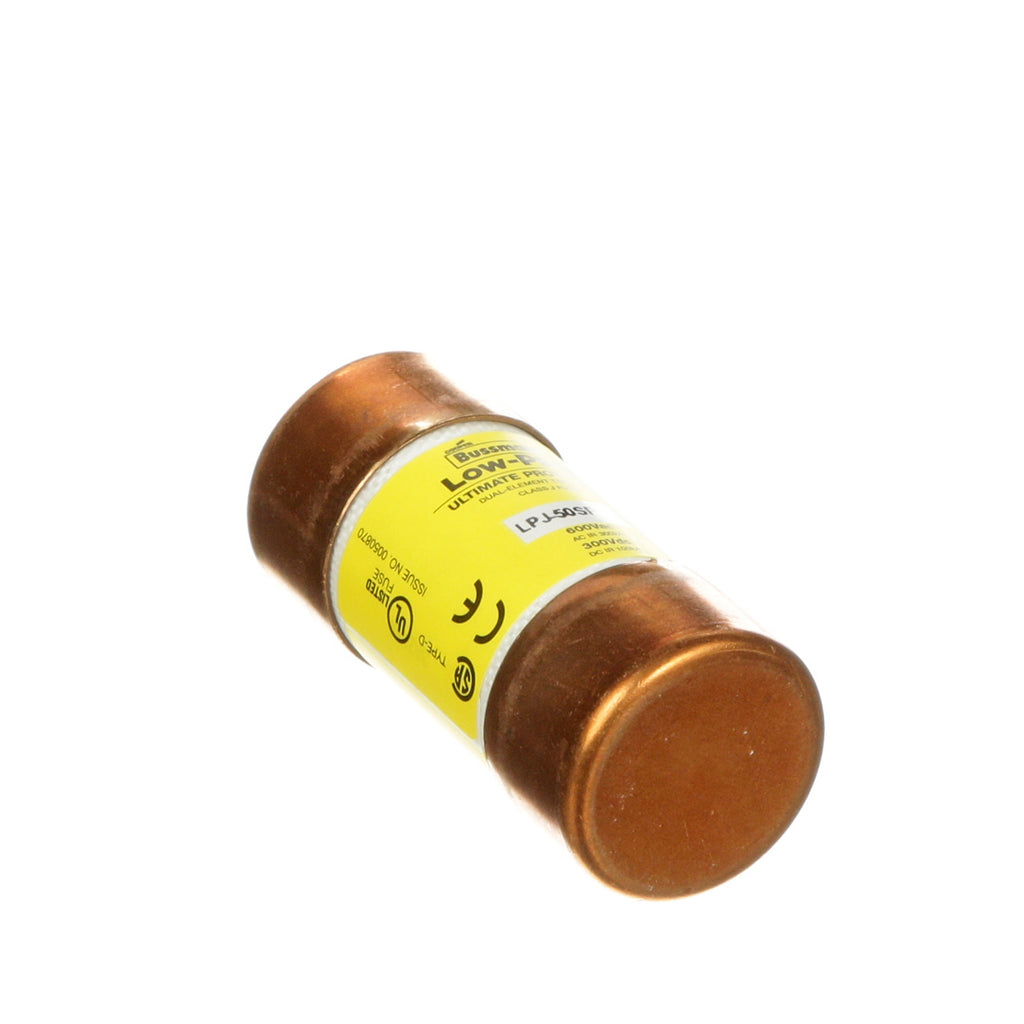

LPJ-50SP - Eaton Bussmann 50A 600V Class J Time-Delay Dual Element Fuse 300kA Interrupt Rating

LPJ-50SP

LPJ-50SP is a 50 Amp, 600 Volt AC Class J time-delay dual-element fuse from Eaton Bussmann series designed for high interrupting capacity applications.This fuse features a 300,000 A interrupting rating at 600 VAC and 100,000 A at 300 VDC, with ferrule end connections and a compact size of 1.06 by 2.38 inches. It is UL Listed and CSA Certified, providing reliable protection with a minimum 10-second time delay at 500% rating, suitable for protecting circuits against overloads and short circuits.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-Delay, Dual Element
• Class: J
• Connection: Ferrule end x ferrule end
• Dimensions: 1.06 in diameter x 2.38 in length
• Certifications: UL Listed, CSA Certified
• Non-indicating fuse
• Packaging: Standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-50SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 50
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523356
• GTIN : 00051712523356
• Country of Origin : Mexico
• Dimensions : x 2-3/8 in x
• Weight : 1
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
