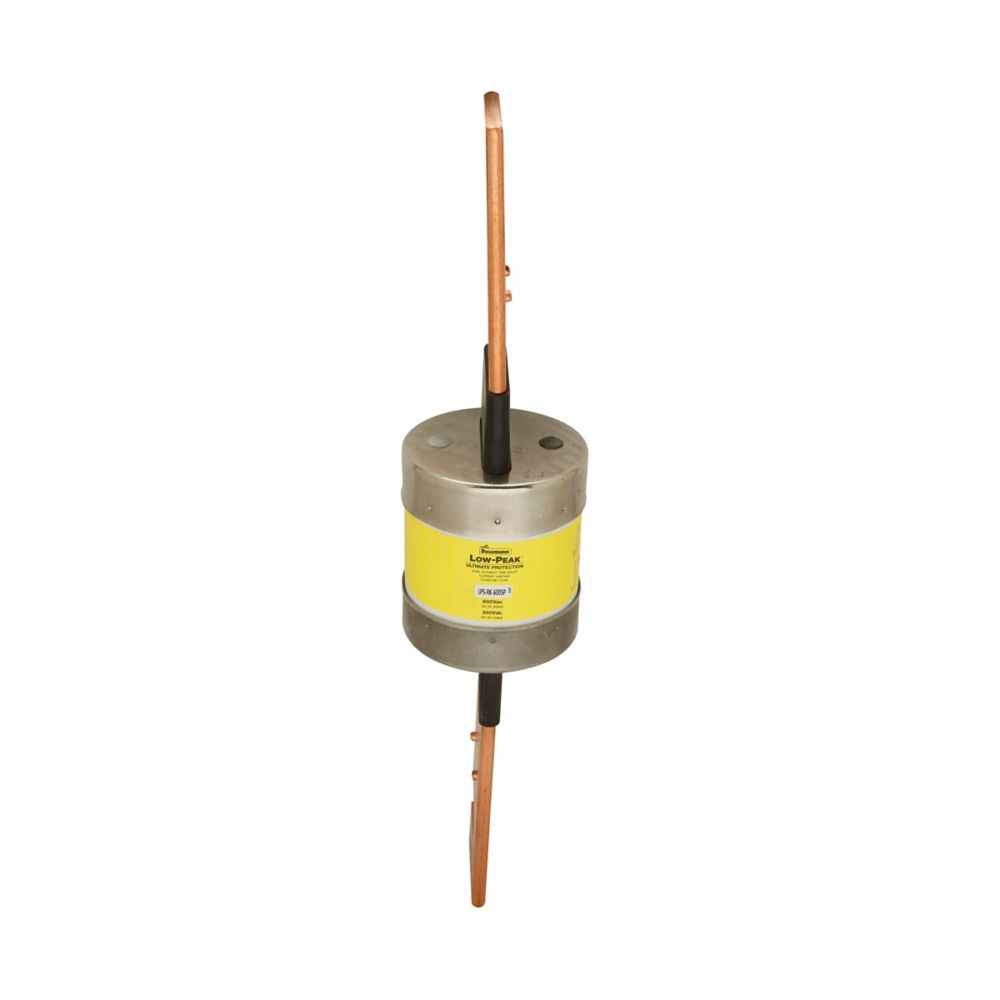

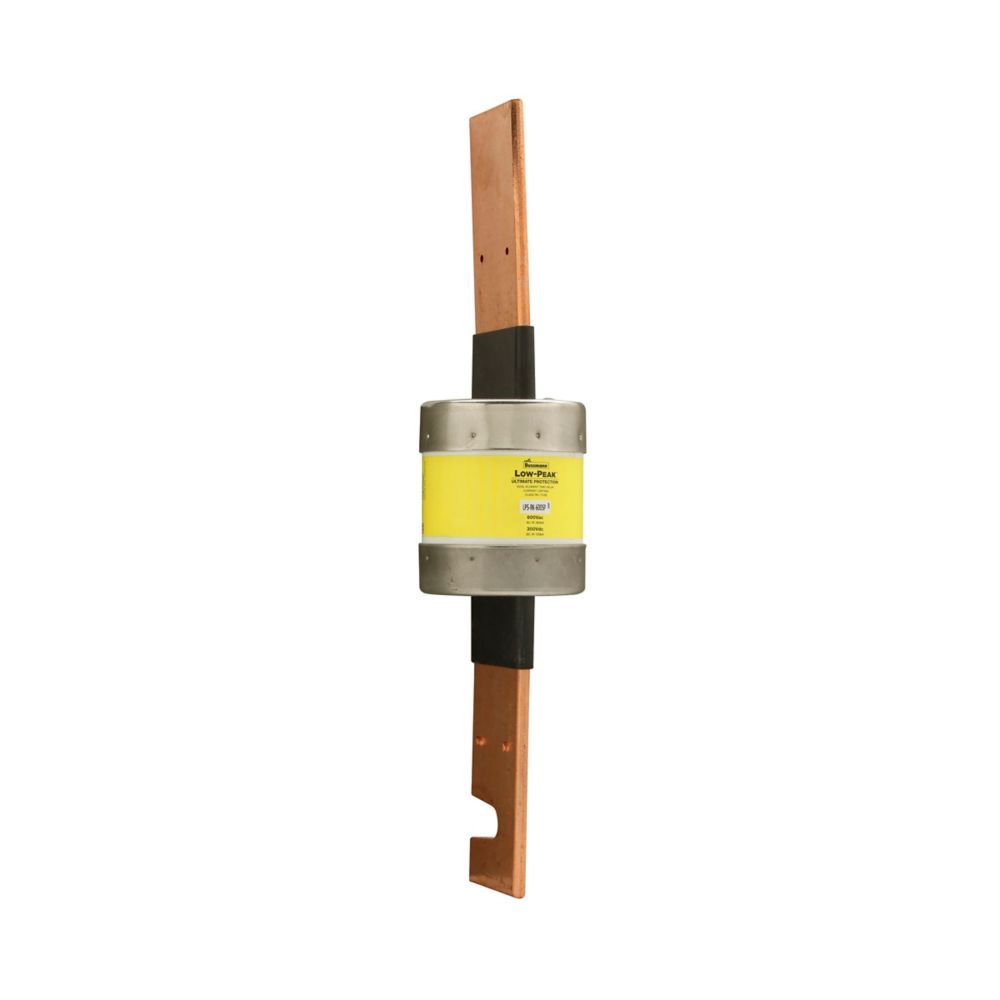

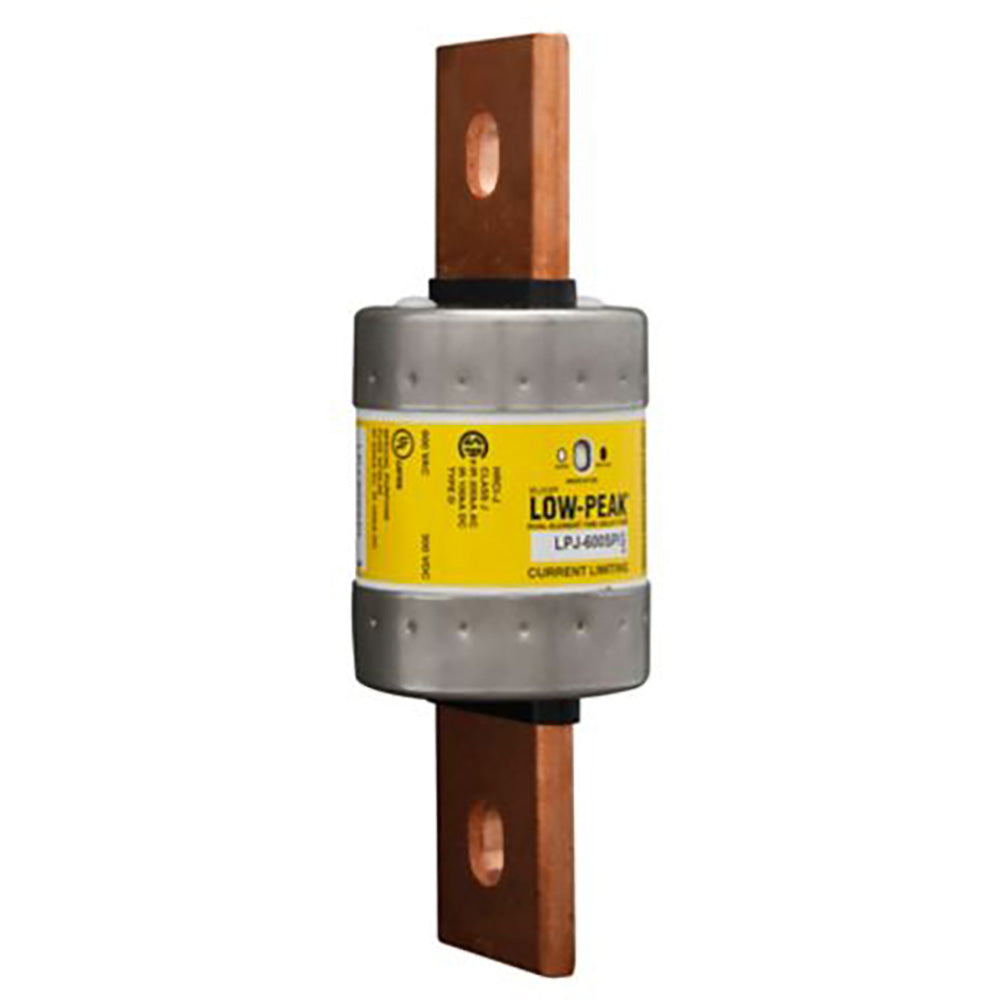

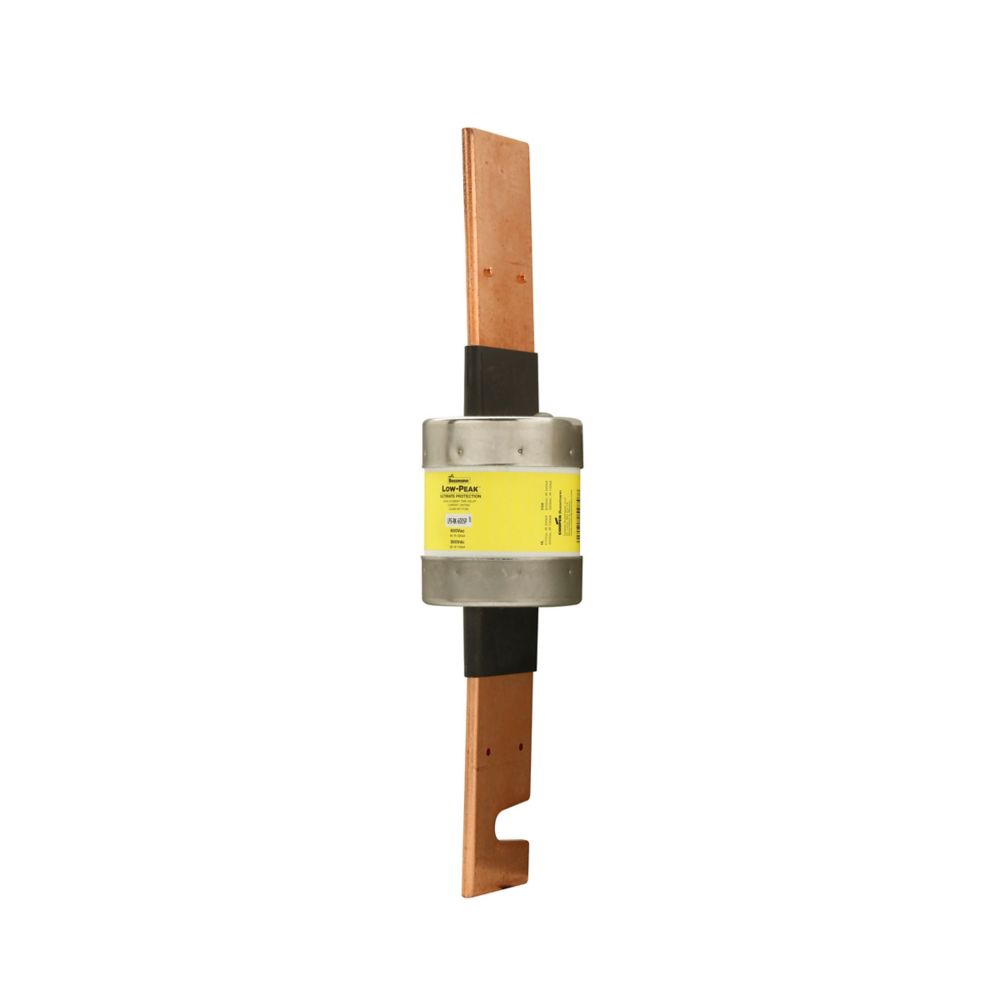

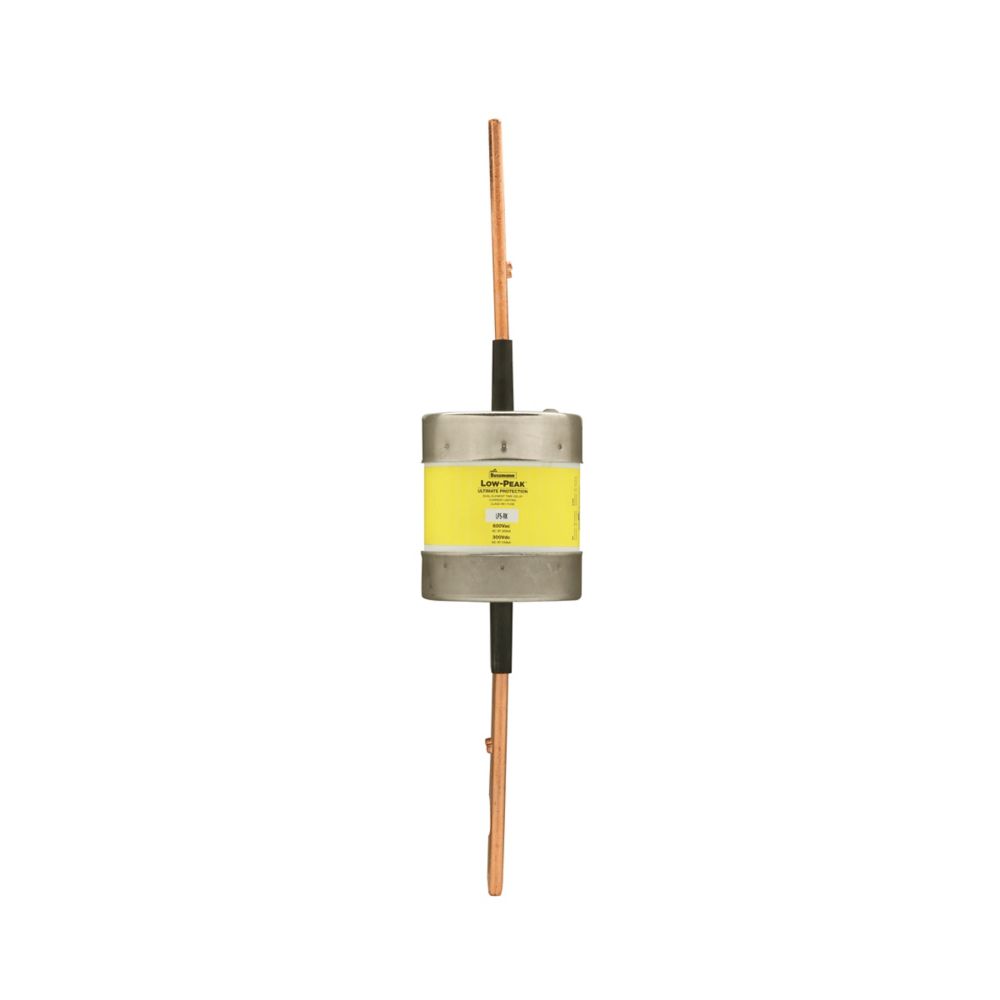

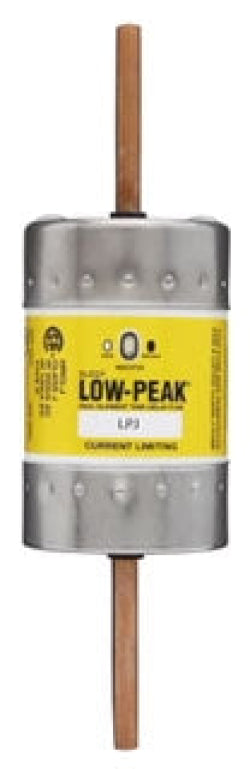

LPJ-500SPI - Eaton Bussmann Class J Time Delay Fuse 500A 600V Dual Element Indicating

LPJ-500SPI

LPJ-500SPI is a Class J time-delay, dual-element current-limiting fuse rated for 500 amps and 600 volts AC, designed for reliable circuit protection.This Eaton Bussmann series fuse features a 10-second minimum time delay at 500% overload, an interrupting rating of 300 kA at 600 VAC and 20 kA at 300 VDC, and an indicating feature for easy status monitoring. It has bolted blade end connections and complies with UL, CSA, and RoHS standards.

Key Specifications
• Amperage Rating: 500 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Type: Time Delay, Current Limiting
• Number of Elements: Dual
• Interrupting Rating: 300 kA at 600 VAC, 20 kA at 300 VDC
• Fuse Indicator: Indicating
• Connection Type: Bolted blade end x bolted blade end
• Class: Class J
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds at 500% overload
• Physical Size: Approximately 2.6" x 8"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-500SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 500
• AIC rating : 300kA@600V
• Diameter : 2.6
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626477
• GTIN : 00051712626477
• Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 1.39
• Certification : CE, CSA, UL
