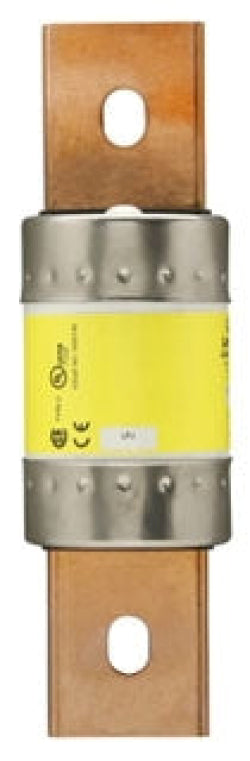

LPJ-500SP - Eaton Bussmann 500A 600V Class J Time-Delay Dual-Element Fuse 300kA Interrupting Rating

LPJ-500SP

LPJ-500SP is a 500 Amp, 600 Volt AC, Class J time-delay fuse from Eaton Bussmann series designed for high performance circuit protection.This dual-element, current-limiting fuse features a 10-second time delay at 500% overload, bolted blade end connections, and a high interrupting rating of 300kA at 600 VAC and 100kA at 300 VDC. It is non-indicating and suitable for motor protection and other demanding applications. The fuse is UL listed, CSA certified, CE marked, and RoHS compliant.

• Amperage Rating: 500 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: Class J
• Fuse Type: Time-delay, dual-element, current-limiting
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection Type: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Physical Size: Approximately 2.5 in x 2.5 in x 8 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-500SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 500
• AIC rating : 300kA@600V
• Diameter : 2.6
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522861
• GTIN : 00051712522861
• Country of Origin : Mexico
• Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
• Weight : 1.39
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
