LPJ-5-6/10SP - Bussmann, Cooper Bussmann, Eaton 5A 600V Low-Peak Class J Time-Delay Fuse, 1 Barrel, Panel Mount, Dual Element, Current-Limiting, 200kA Interrupt Rating, UL Listed

LPJ-5-6/10SP

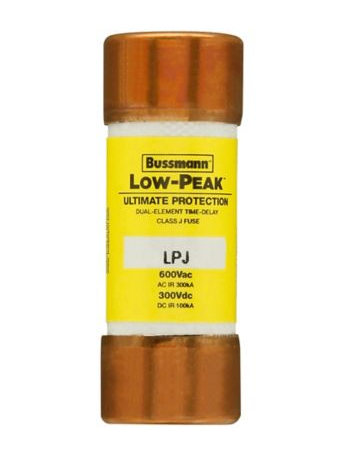

LPJ-5-6/10SP is a Bussmann, Cooper Bussmann, and Eaton 5A 600V Low-Peak Class J time-delay fuse designed for reliable circuit protection in demanding applications.

This current-limiting, dual-element fuse offers time-delay performance for motor and transformer circuits, minimizing nuisance tripping while providing high interrupting capacity. The LPJ-5-6/10SP is suitable for panel mounting and is part of the Low-Peak series, known for compact design and robust protection.

Key Specifications
• Amperage: 5A
• Voltage: 600V AC
• Poles: 1
• Mounting Type: Panel mount (fuse block required, not included)
• Interrupt Rating: 200,000A (200kA)
• Series/Frame: Low-Peak, Class J
• Trip Unit: Dual element, time-delay
• Certifications: UL Listed
• Connection: Ferrule end
• Dimensions: Approx. 0.81" diameter, 2.25" length (refer to manufacturer datasheet for exact specs)
• Application: Branch circuit protection for motors, transformers, and control circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-5-6/10SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 5
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522793
• GTIN : 00051712522793
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
