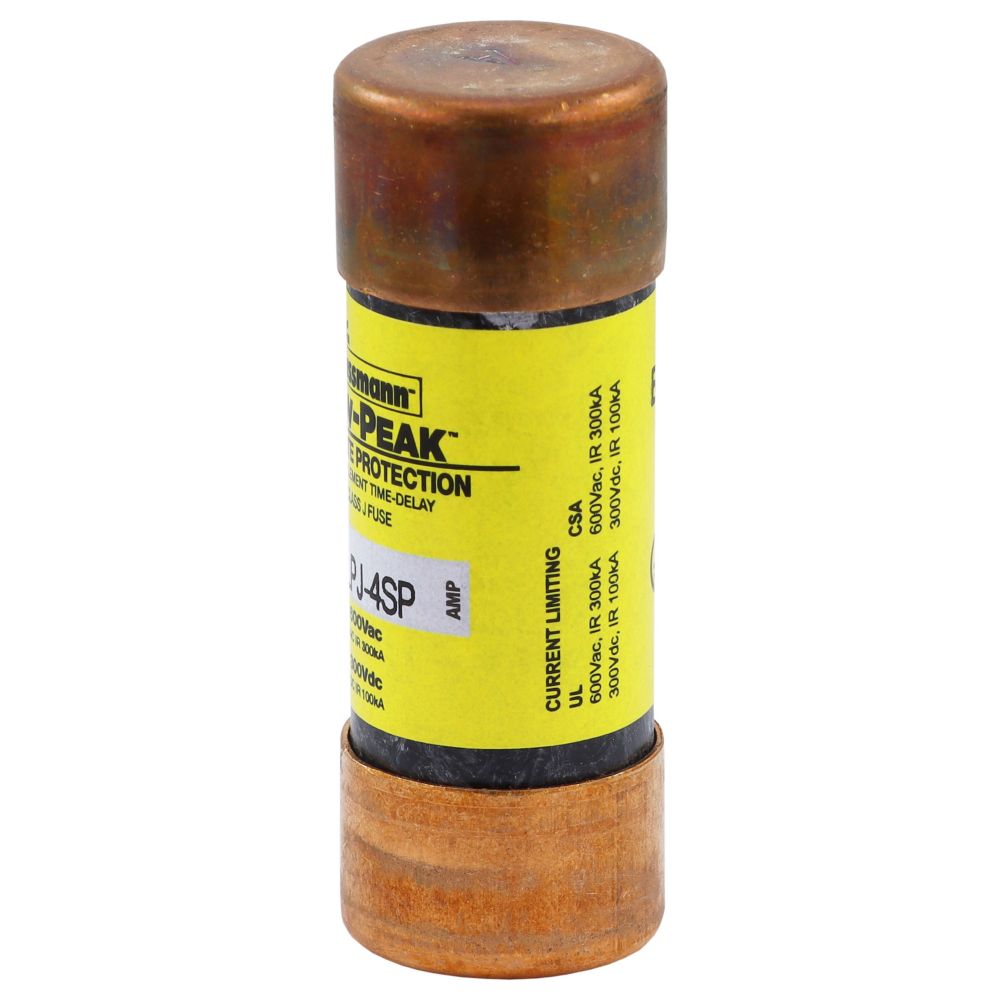

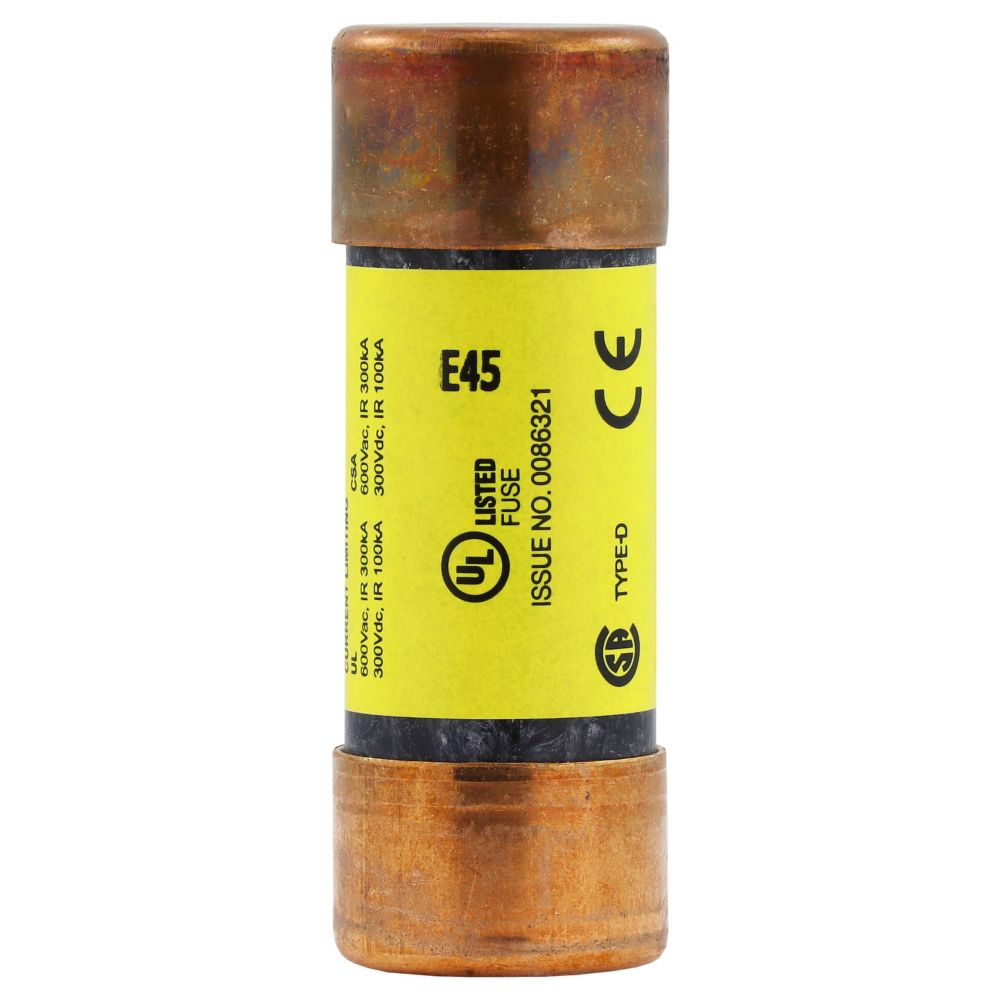

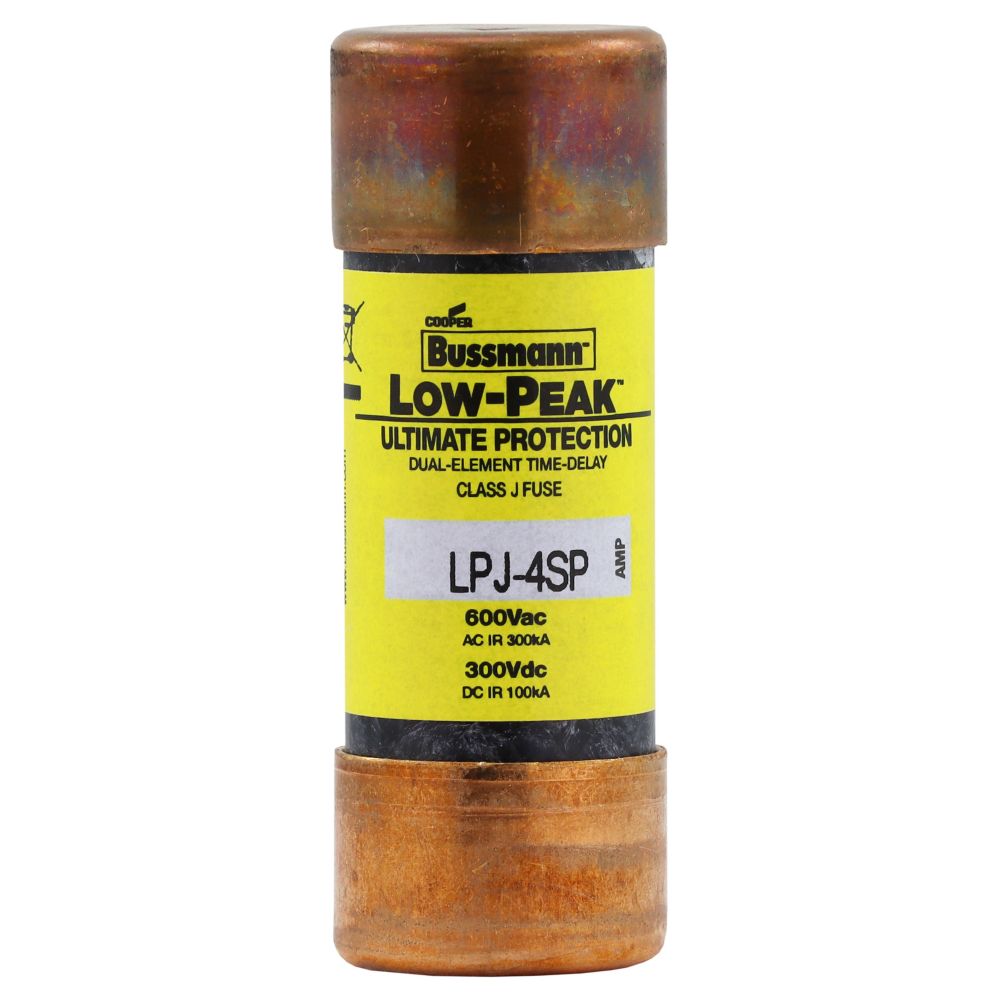

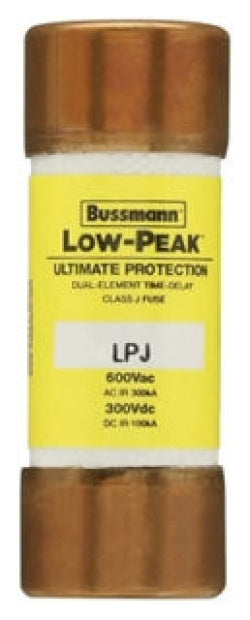

LPJ-4SP - Eaton Bussmann 4A 600V Class J Time-Delay Dual Element Fuse 300kA Interrupting Rating

LPJ-4SP

LPJ-4SP is a 4 Amp, 600 Volt AC, Class J time-delay dual-element fuse from Eaton Bussmann series designed for high inrush current motor protection.This non-indicating fuse features a ferrule end to ferrule end connection, a 10 second time delay at 500% rated current, and a high interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. It is 2.25 inches long and 0.81 inches in diameter, compliant with UL and CSA certifications, and RoHS and CE marked.

Key Specifications
• Amperage: 4 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: J
• Fuse Type: Time-delay, dual element, current limiting
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection: Ferrule end x ferrule end
• Dimensions: 2.25 in length x 0.81 in diameter
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds at 500% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-4SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 4
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522816
• GTIN : 00051712522816
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
