LPJ-45SPI - Eaton 45A Class J Dual-Element Time-Delay Fuse 600VAC 300VDC 300kAIC Indicating

LPJ-45SPI

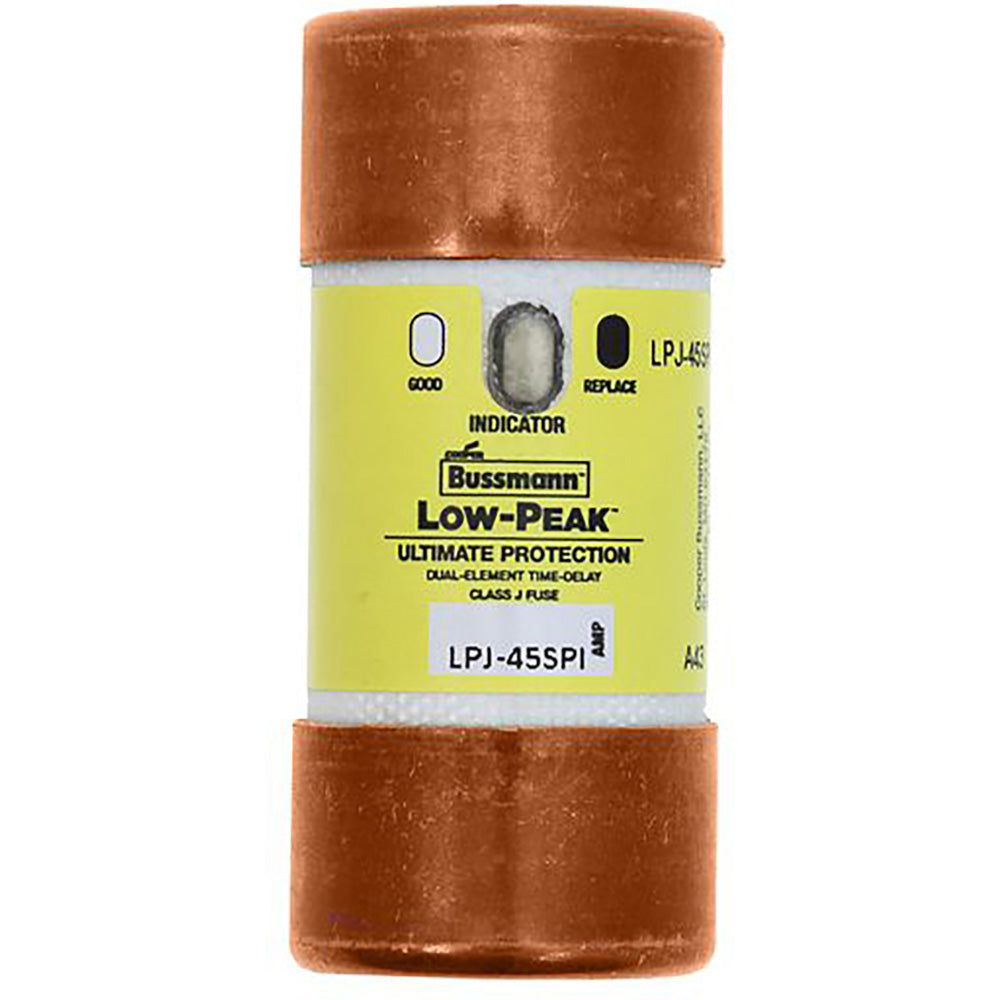

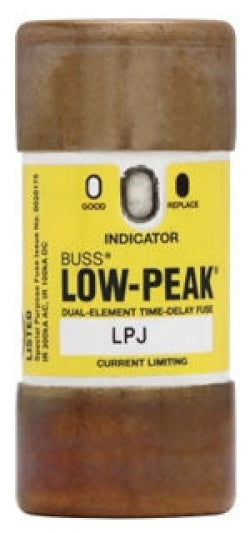

LPJ-45SPI is a 45A Class J dual-element time-delay fuse with permanent indication, designed for reliable protection in industrial and commercial power systems. This fuse features a 600VAC and 300VDC rating, 300kA interrupting capacity, and is built for high in-rush current motor protection. The Low-Peak design ensures current-limiting performance and fast response to overloads. Eaton Bussmann Series LPJ fuses are recognized for their robust construction and rejection features, preventing incorrect replacements. The LPJ-45SPI is suitable for use in fuse holders and provides permanent indication for easy status monitoring. Its dual-element construction offers both overload and short-circuit protection, making it ideal for demanding applications.

• 45A Amperage Rating
• 600VAC / 300VDC Voltage Rating
• Class J Fuse Type
• Dual-Element Construction
• Time-Delay (10 sec at 500%)
• 300kA Interrupting Rating (AC)
• 100kA Interrupting Rating (DC)
• Permanent Fuse Indication
• Cartridge Mounting
• Low-Peak Current Limiting
• CE Marked, RoHS Compliant
• UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-45SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 45
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626385
• GTIN : 00051712626385
• Country of Origin : Mexico
• Dimensions : 2.38 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
