Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
LPJ-450SPI

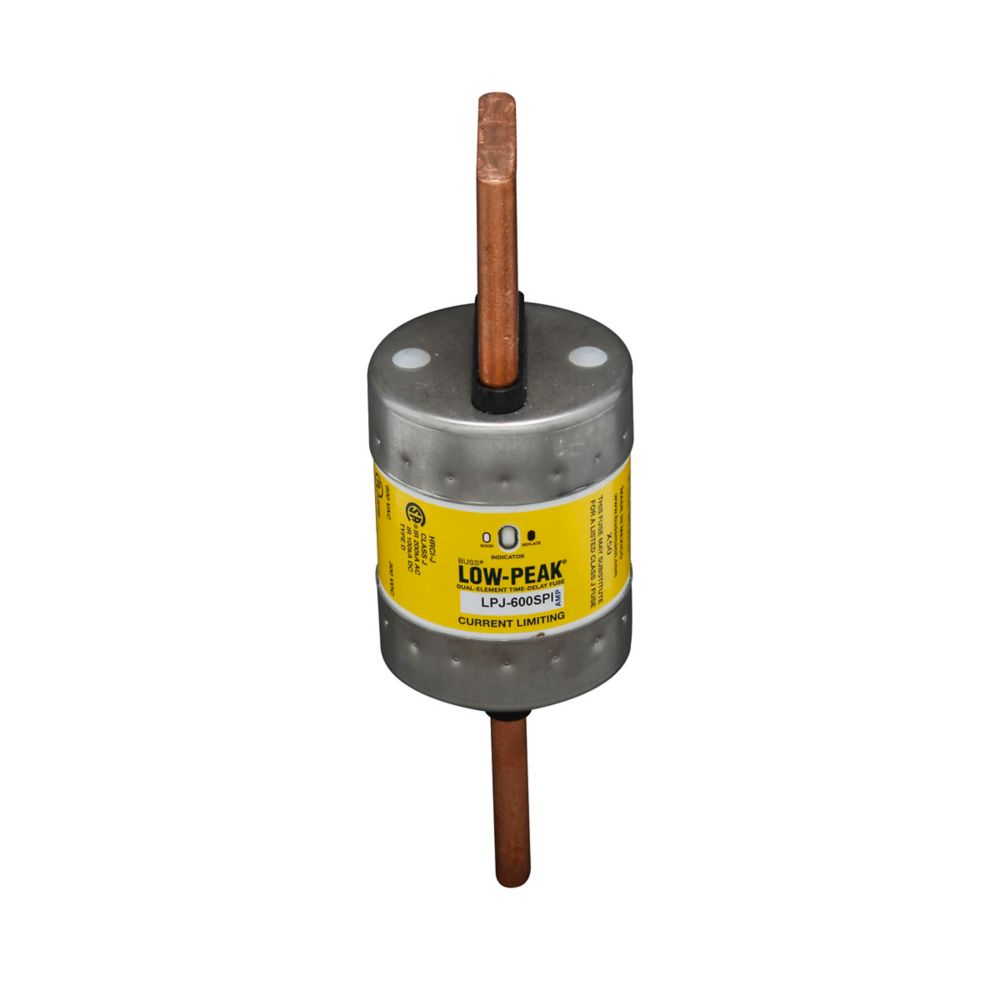

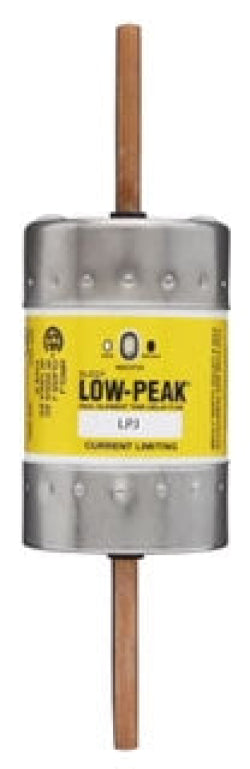

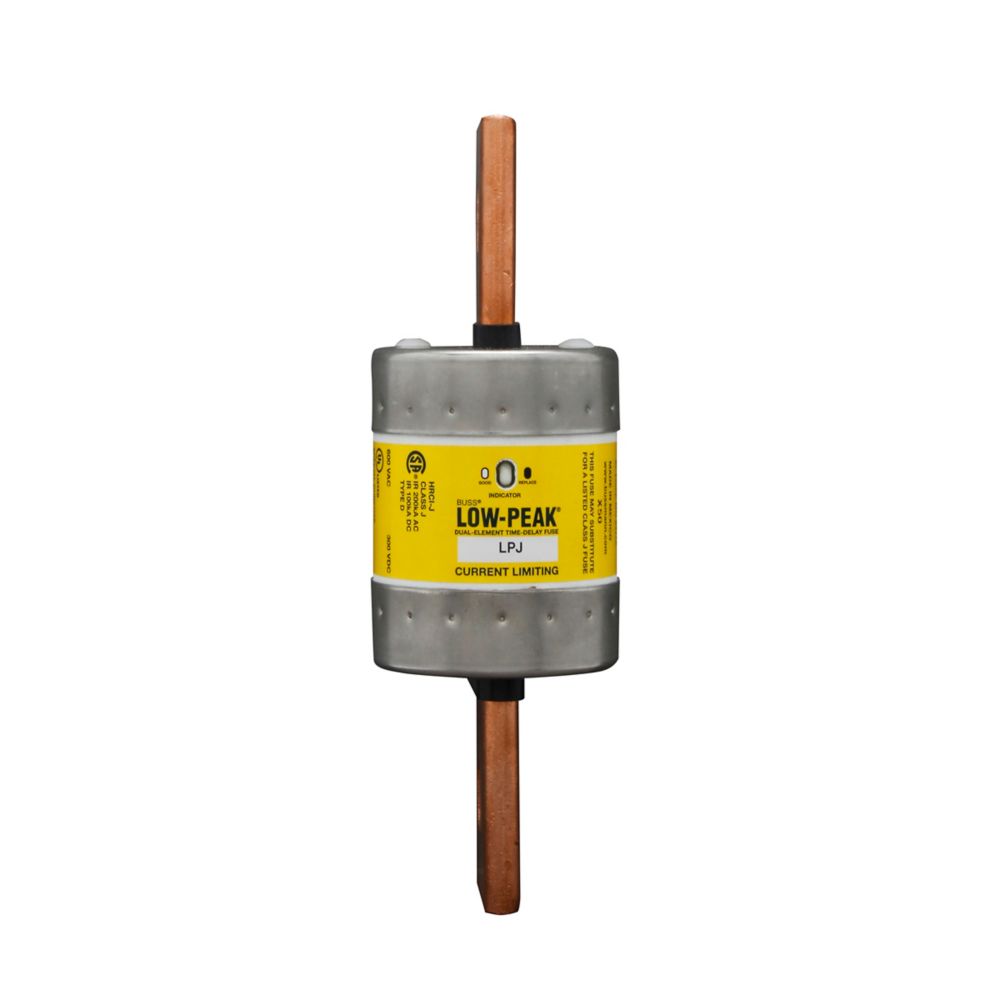

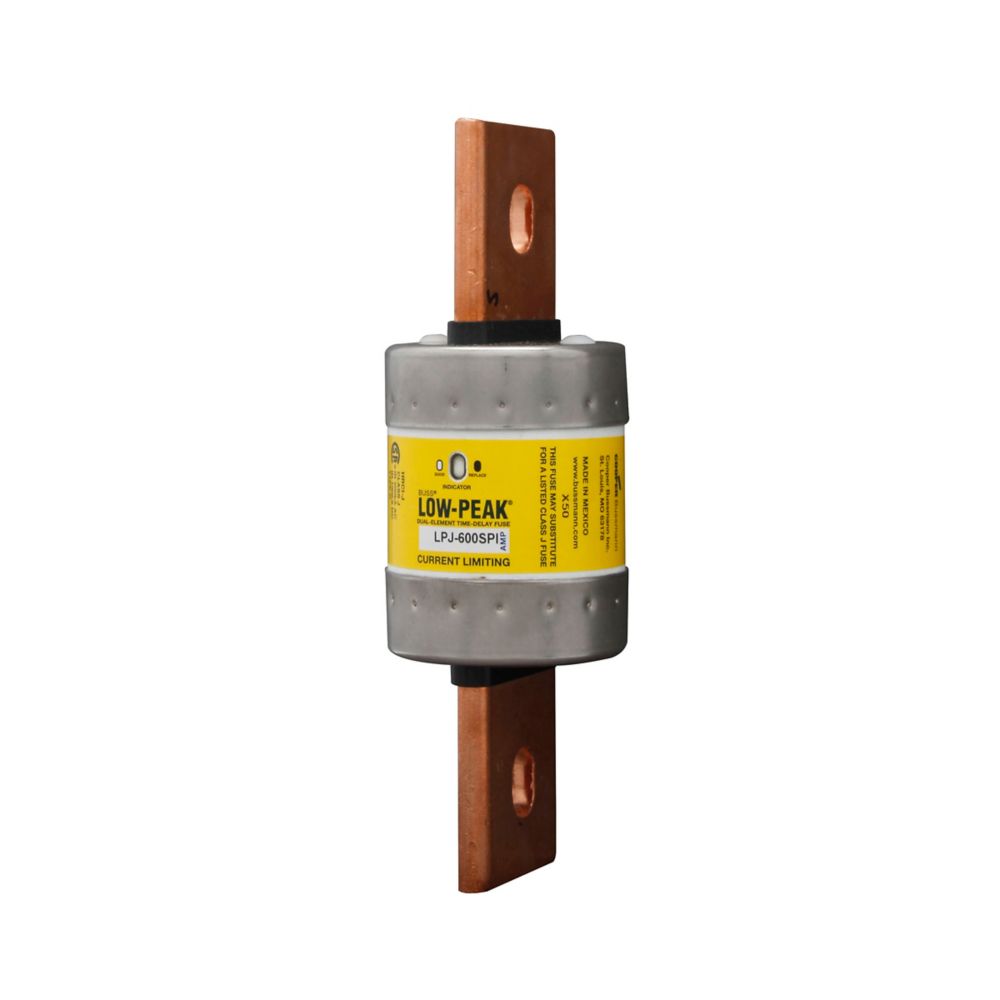

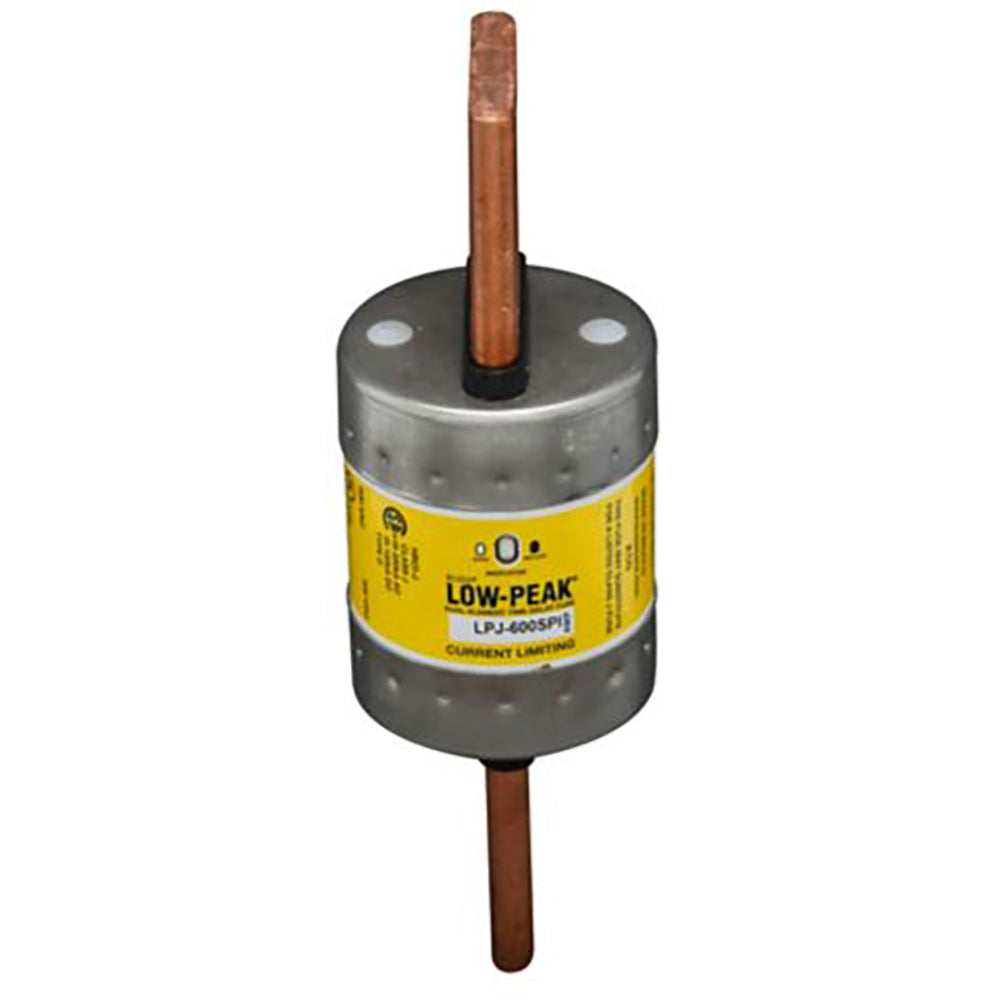

LPJ-450SPI is an Eaton Bussmann series Class J fuse designed for reliable circuit protection with a 450 amp rating and 600 volts AC voltage capacity.This time-delay, dual-element fuse features current-limiting technology and an indicator for status monitoring. It has a bolted blade end connection, a high interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, and complies with CE and RoHS standards. The fuse provides 10 seconds delay at 500% overload, ideal for motor protection and high inrush current applications.
- Key Specifications
- Amperage Rating: 450 A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupting Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
- Fuse Type: Time-delay, current-limiting
- Number of Elements: Dual
- Connection: Bolted blade end x bolted blade end
- Fuse Indicator: With indicator
- Response Time: 10 seconds at 500% overload
- Class: Class J
- Certifications: CE Marked, RoHS Compliant
- Physical Size: Approximately 2.6 in x 8 in
Specifications
- Part Number: LPJ-450SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 450
- AIC rating : 300kA@600V
- Diameter : 2.6
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712626460
- GTIN : 00051712626460
- Dimensions : 8 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 1.39
- Certification : CE, CSA, UL
