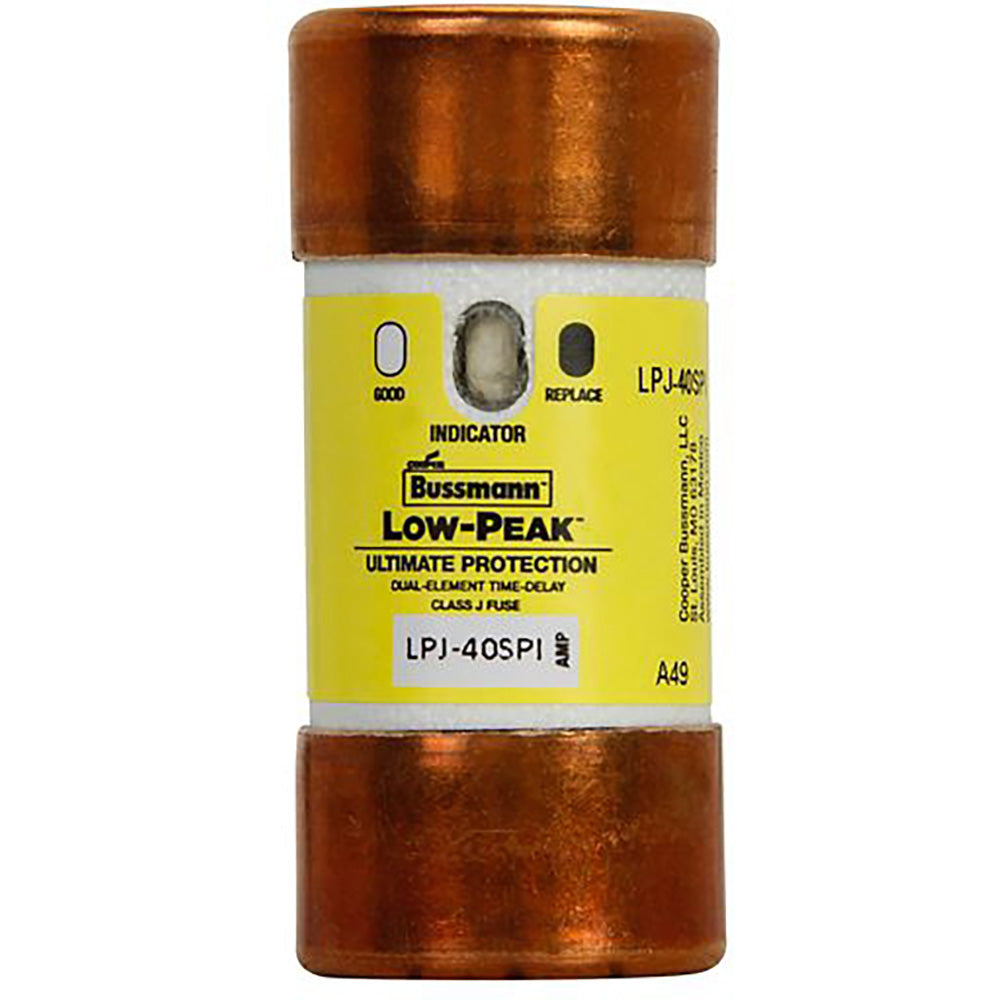

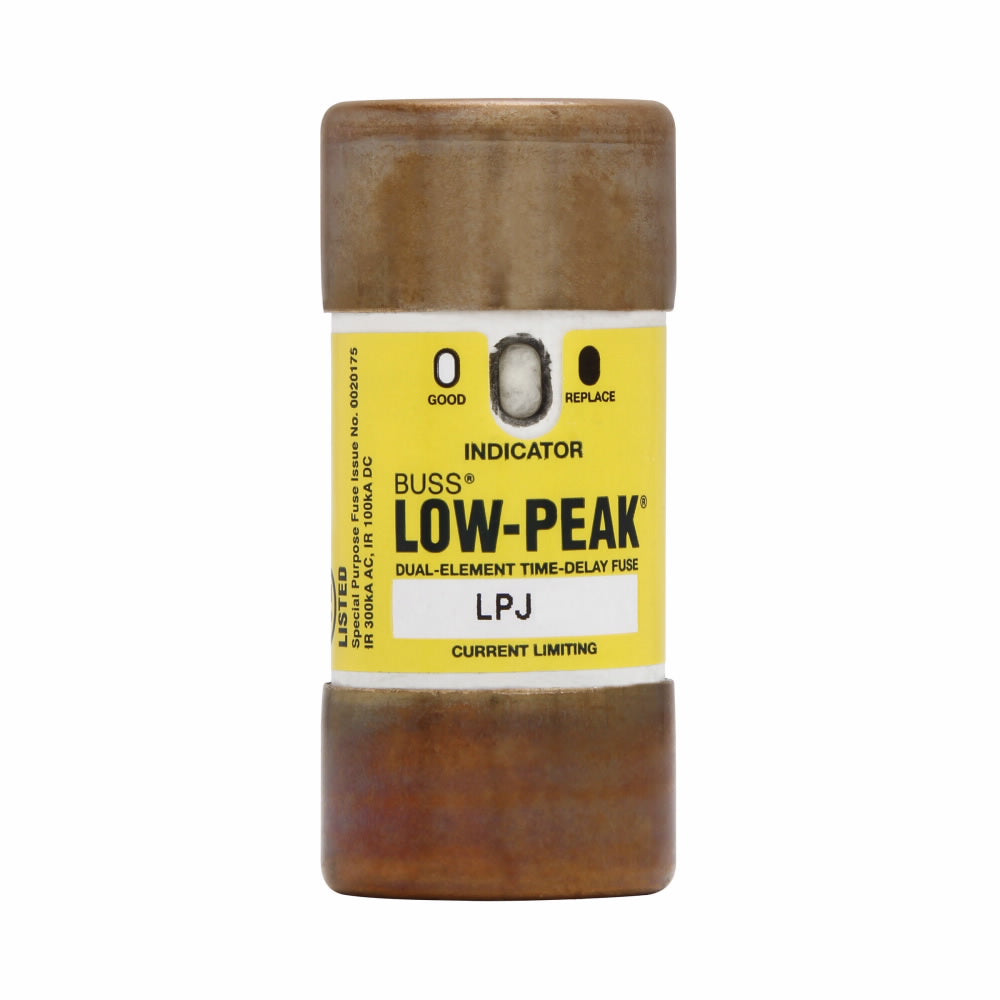

LPJ-40SPI - Eaton 40A Class J Dual-Element Time-Delay Fuse with Indicator 600VAC 300VDC 300kAIC

LPJ-40SPI

LPJ-40SPI is a 40A Class J dual-element time-delay fuse with indicator, designed for high in-rush current motor protection and specialized industrial circuits. This Eaton Bussmann series LPJ fuse features a ferrule end x ferrule end connection, current-limiting design, and a 10-second time delay at 500% rating. It is rated for 600VAC and 300VDC, with an interrupting rating of 300kAIC at 600VAC and 100kAIC at VDC. The fuse is UL listed, CSA certified, CE marked, and RoHS compliant.

• Amperage Rating: 40A
• Voltage Rating: 600VAC, 300VDC
• Number of Elements: Dual
• Class: Class J
• Fuse Type: Time Delay, Current-Limiting
• Interrupt Rating: 300kAIC at 600VAC, 100kAIC at VDC
• Connection: Ferrule end x ferrule end
• Indicator: With Indicator
• Response Time: 10 seconds at 500%
• Mounting Type: Cartridge Fuse
• Series/Frame: LPJ Series
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-40SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 40
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626378
• GTIN : 00051712626378
• Country of Origin : Mexico
• Dimensions : 2.36 in x 1.6 in x 1.6 in (Length/Depth x Height x Width)
• Weight : 0.105
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
