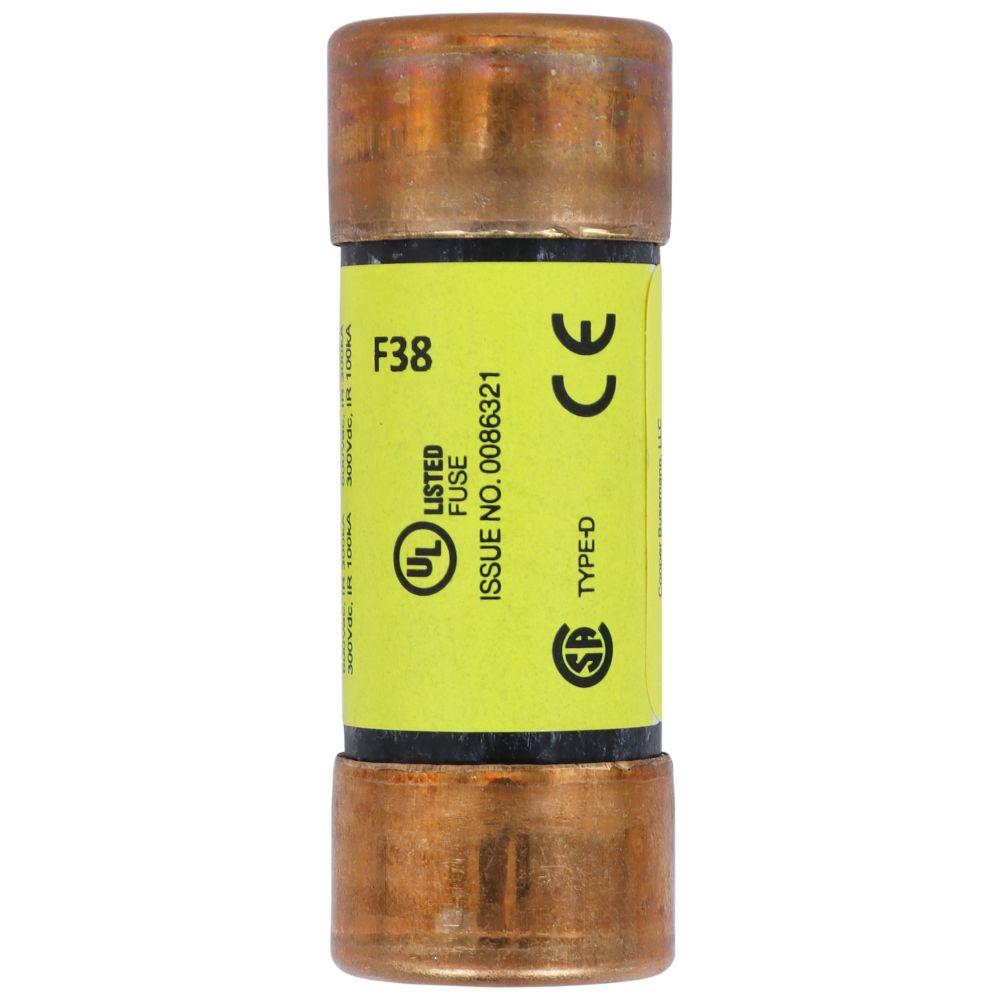

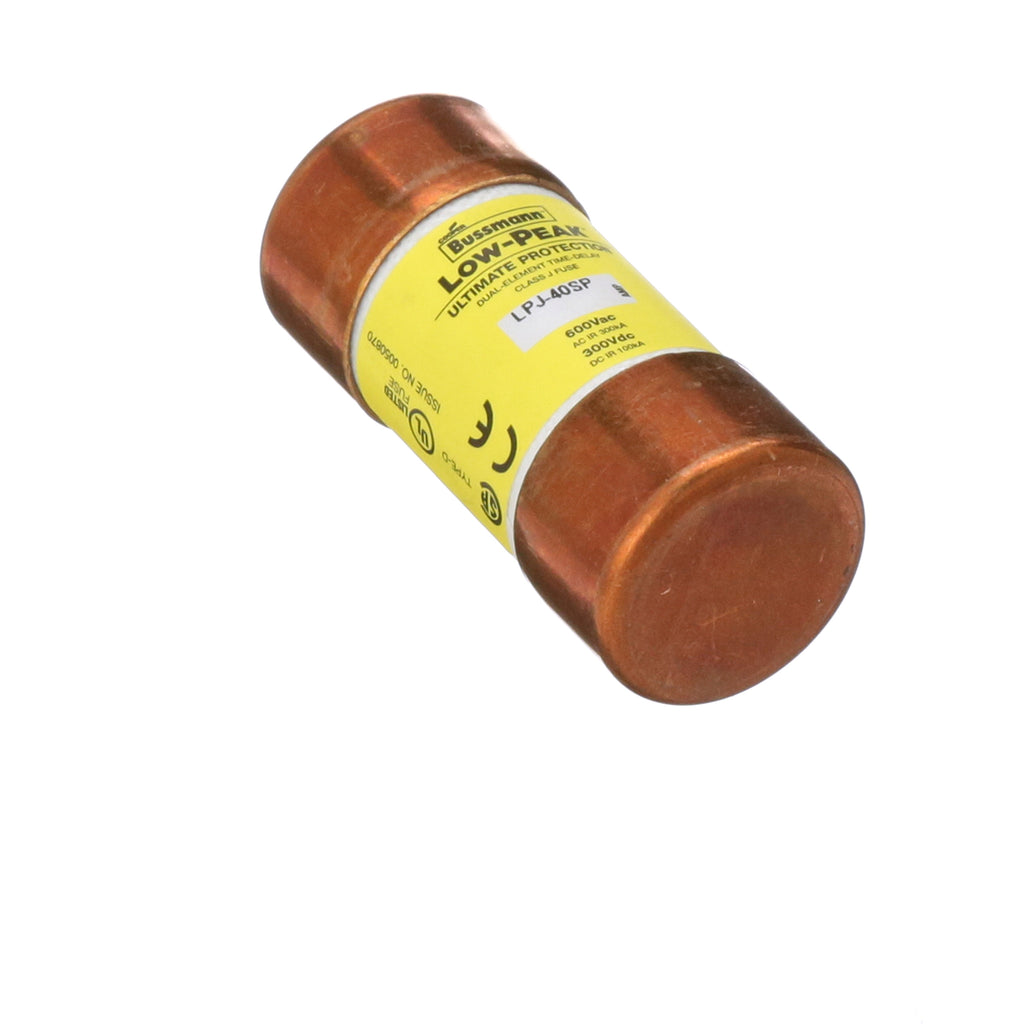

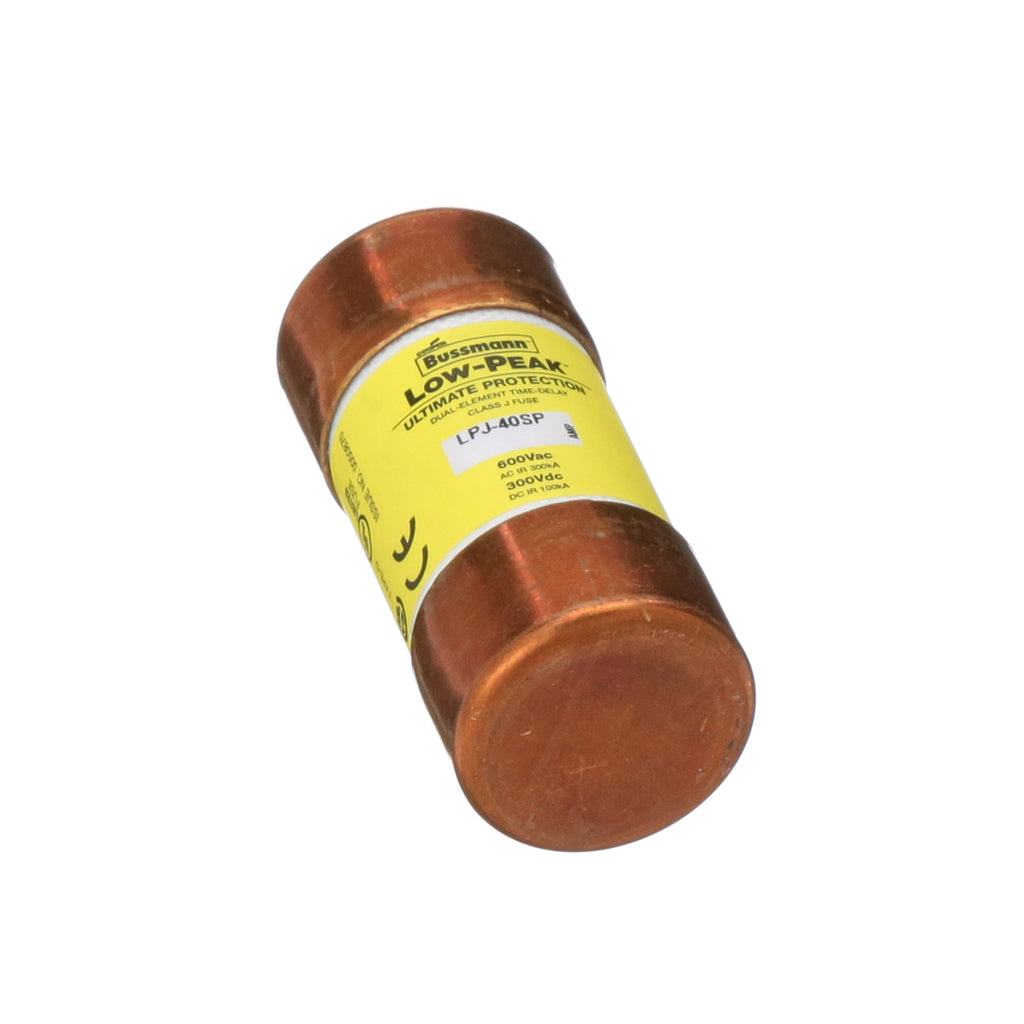

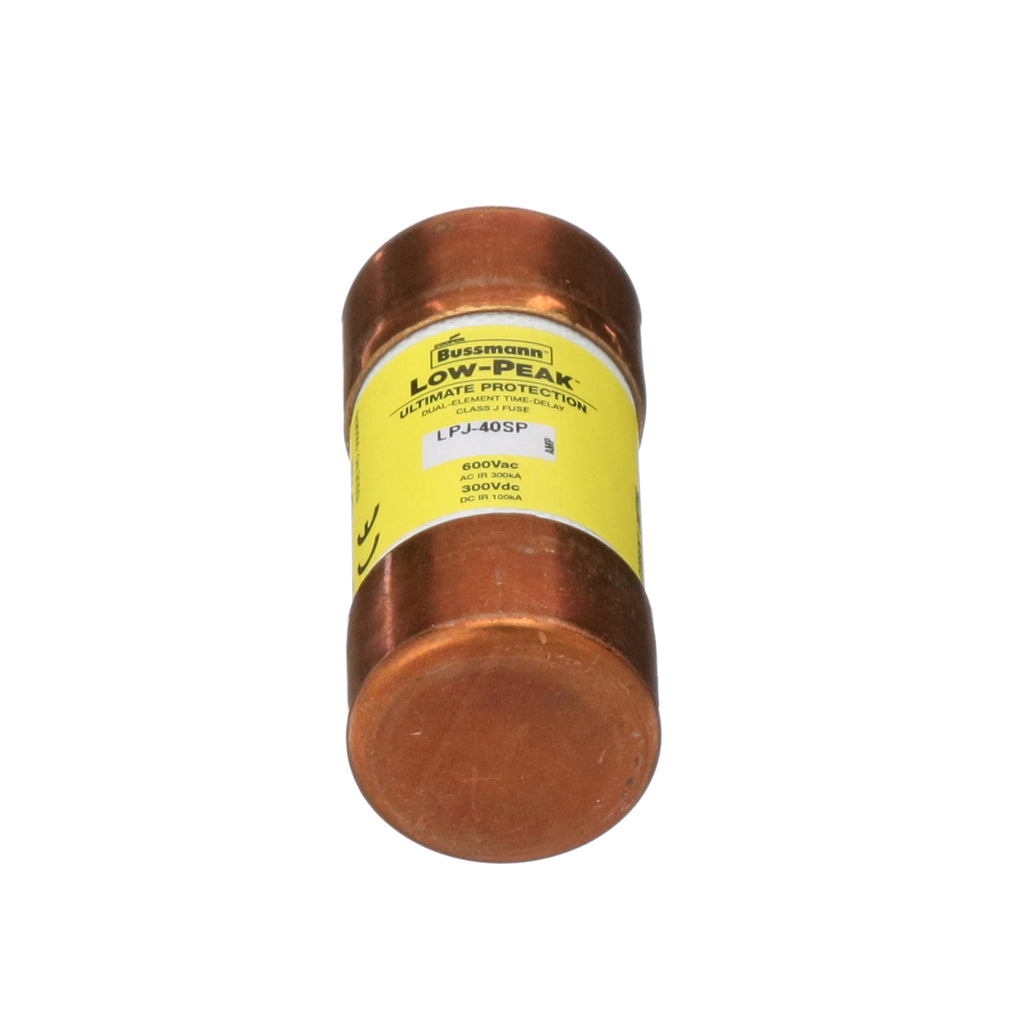

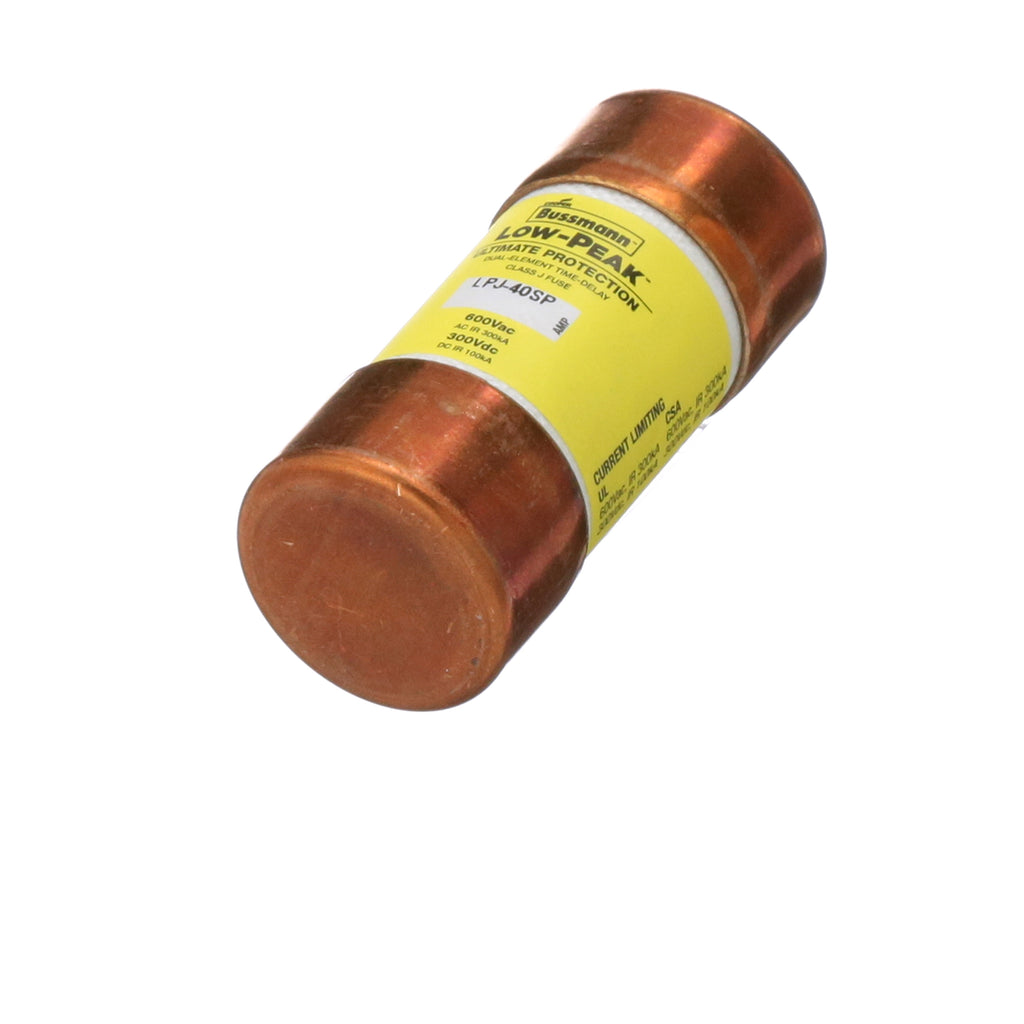

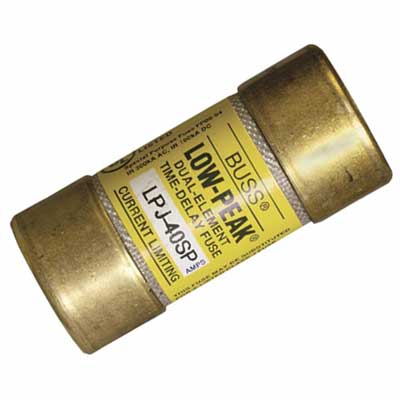

LPJ-40SP - Eaton Bussmann 40 Amp 600V AC/300V DC Class J Time-Delay Dual-Element Current-Limiting Fuse, 300 kAIC, Non-Indicating, Ferrule End

LPJ-40SP

LPJ-40SP is a Class J, time-delay, dual-element current-limiting fuse from Eaton Bussmann, designed for reliable circuit protection in demanding electrical applications.

This fuse features a 40 Amp rating, 600V AC/300V DC voltage rating, and a high interrupting capacity of 300 kAIC. It is engineered for time-delay operation, with a minimum 10-second delay at 500% of rating, providing both overload and short-circuit protection. The LPJ-40SP is non-indicating, has ferrule end connections, and is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Amperage: 40 A
• Voltage: 600V AC, 300V DC
• Poles: Not applicable (fuse)
• Mounting Type: Ferrule end (cartridge fuse)
• Interrupt Rating: 300 kAIC
• Series/Frame: LPJ (Class J)
• Trip Unit: Dual-element, time-delay
• Certifications: UL Listed, CSA Certified
• Physical Size: 1.06" x 2.38"
• Fuse Indicator: Non-indicating
• Packaging: Standard
• UPC: 051712523332

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-40SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 40
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523332
• GTIN : 00051712523332
• Country of Origin : Mexico
• Dimensions : x 2-3/8 in x
• Weight : 1
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
