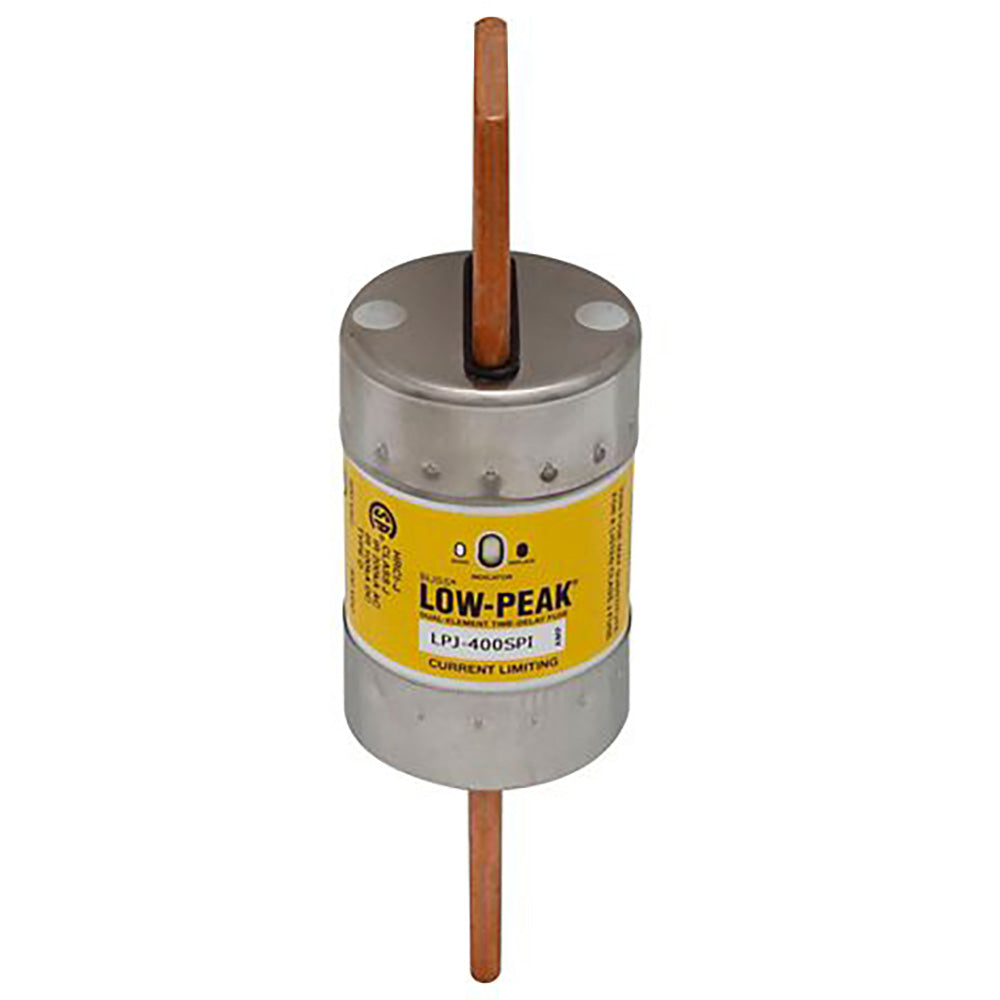

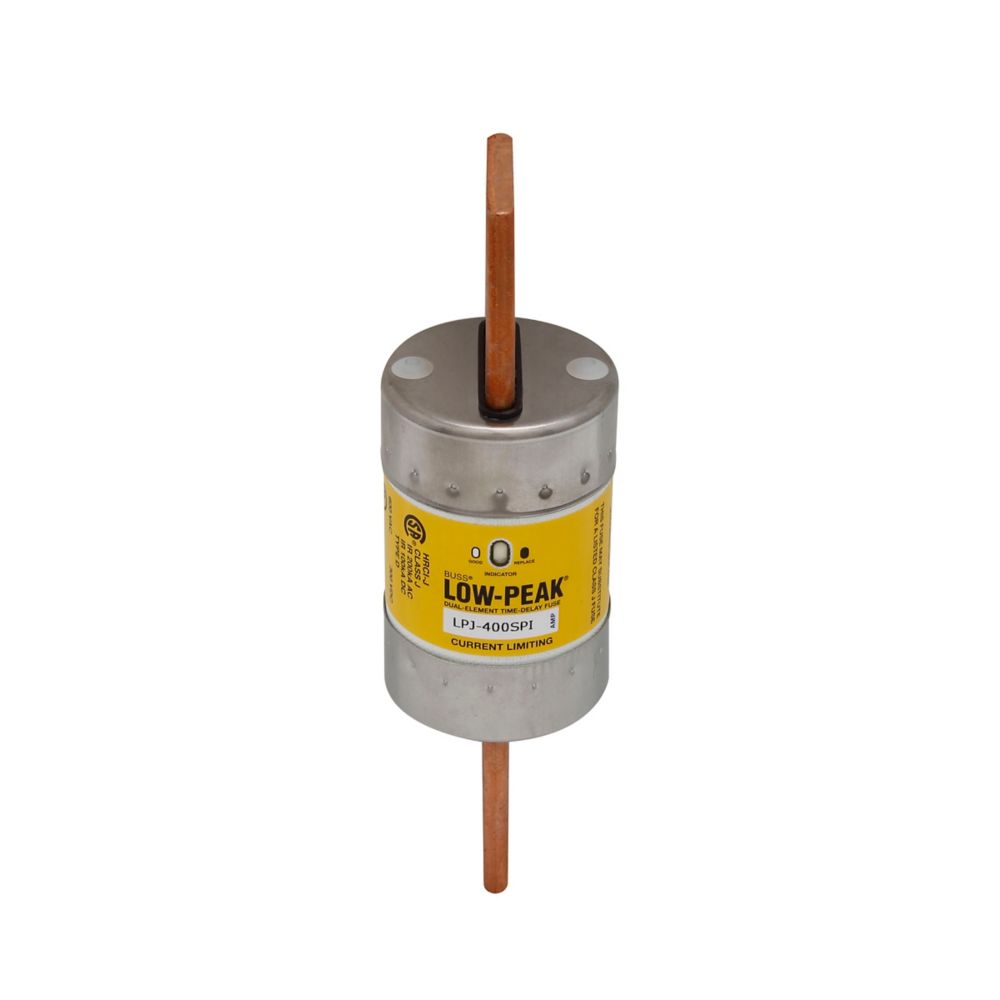

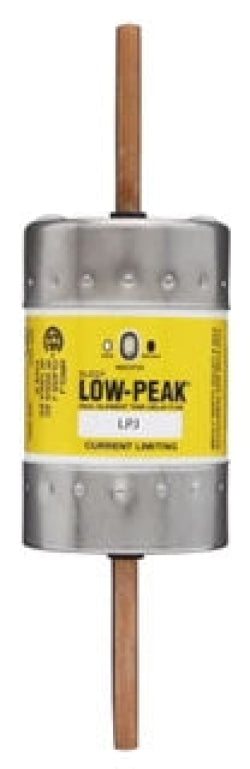

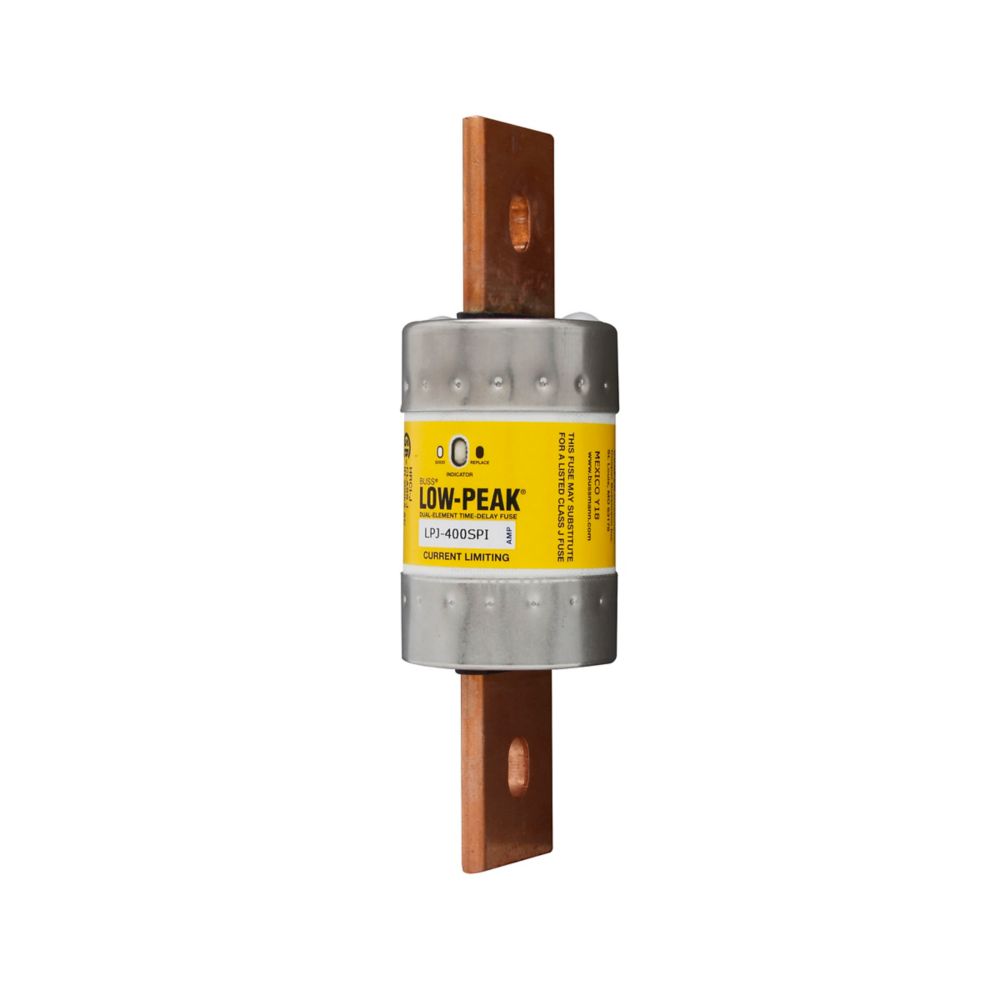

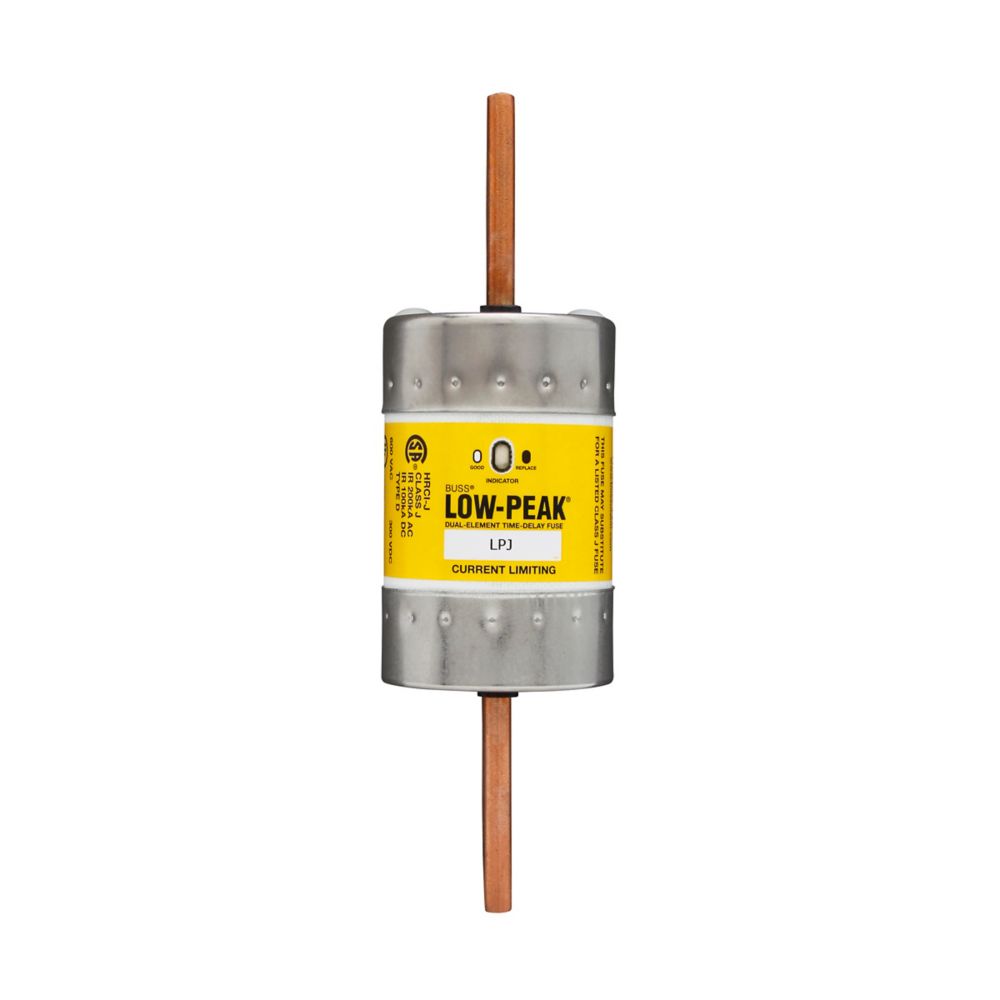

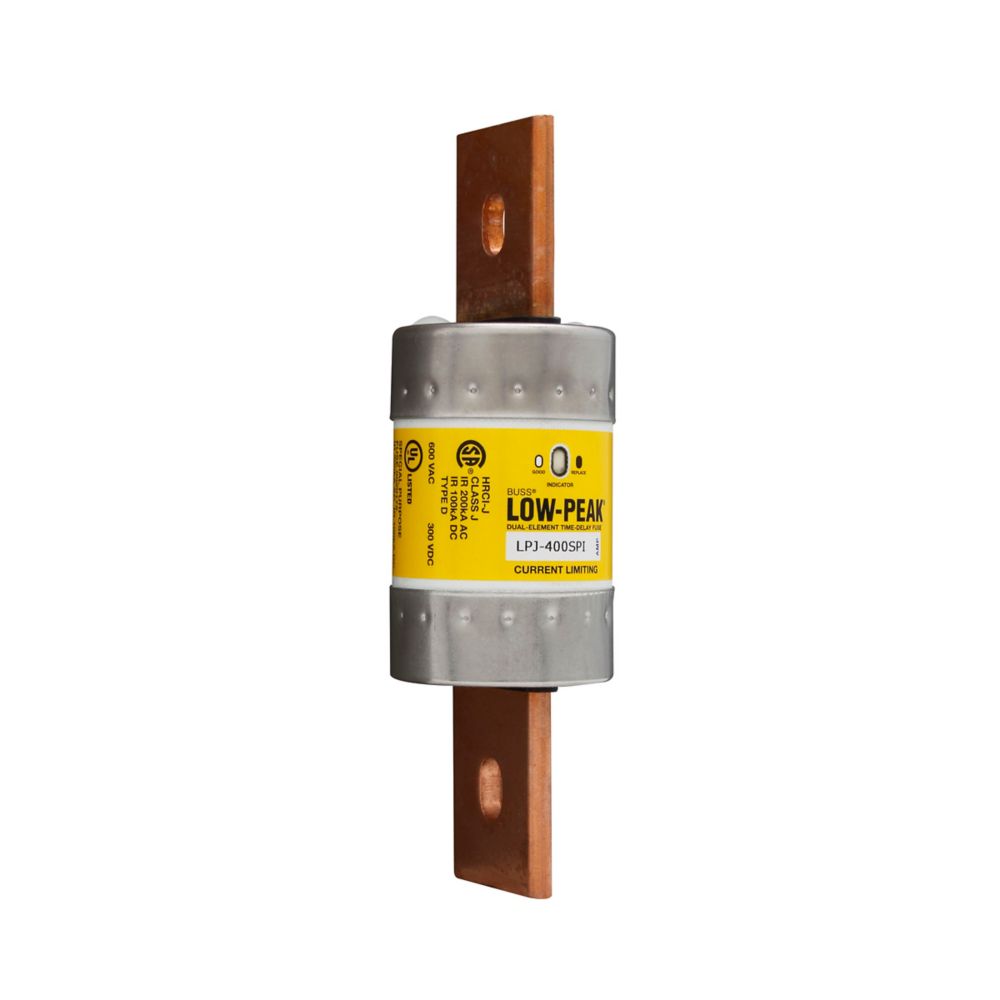

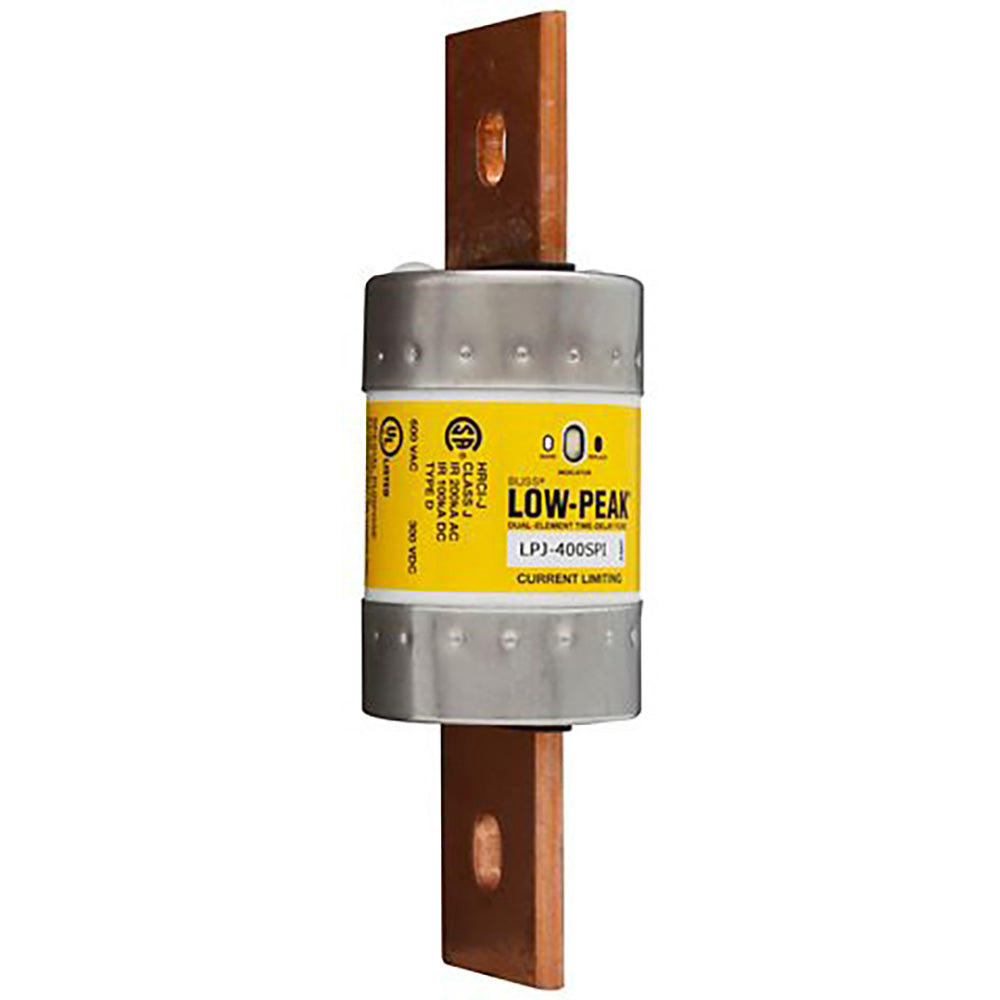

LPJ-400SPI - Eaton Bussmann 400A 600V Class J Time-Delay Dual-Element Indicating Fuse

LPJ-400SPI

LPJ-400SPI is a 400 amp, 600 volt Eaton Bussmann Class J time-delay dual-element fuse with an indicating feature for easy status monitoring.This fuse provides current-limiting protection with a 10 second time delay at 500% rated current, suitable for high inrush motor protection and industrial applications. It features bolted blade end connections, a 300 kA interrupt rating at 600 Vac, and complies with RoHS and CE standards.

• Amperage Rating: 400 A
• Voltage Rating: 600 Vac, 300 Vdc
• Class: J
• Fuse Type: Time-delay, dual-element, current-limiting
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Connection: Bolted blade end x bolted blade end
• Fuse Indicator: Indicating
• Response Time: 10 seconds at 500% rated current
• Dimensions: 2.11 in x 7.13 in
• Certifications: RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-400SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 400
• AIC rating : 300kA@600V
• Diameter : 2.11
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712626453
• GTIN : 00051712626453
• Country of Origin : Mexico
• Dimensions : 2 in x 7.13 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 1.5
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
