Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

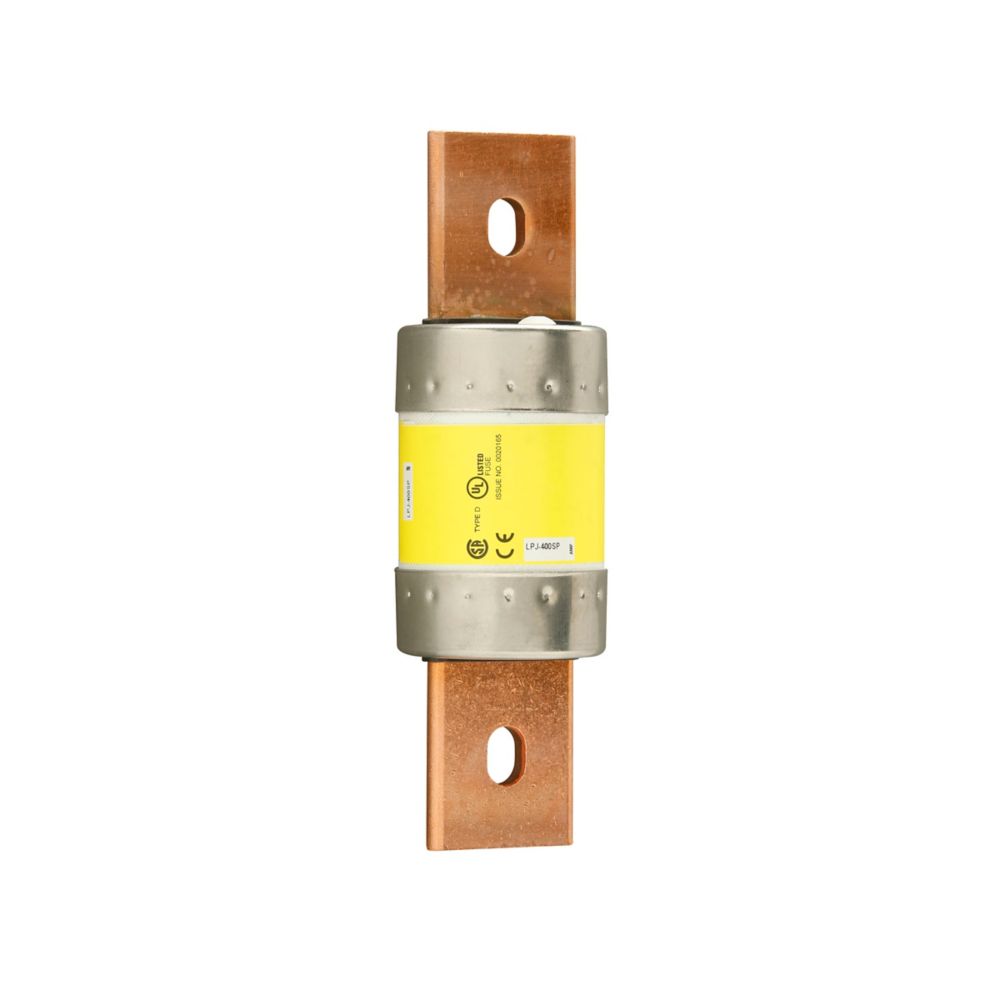

LPJ-400SP

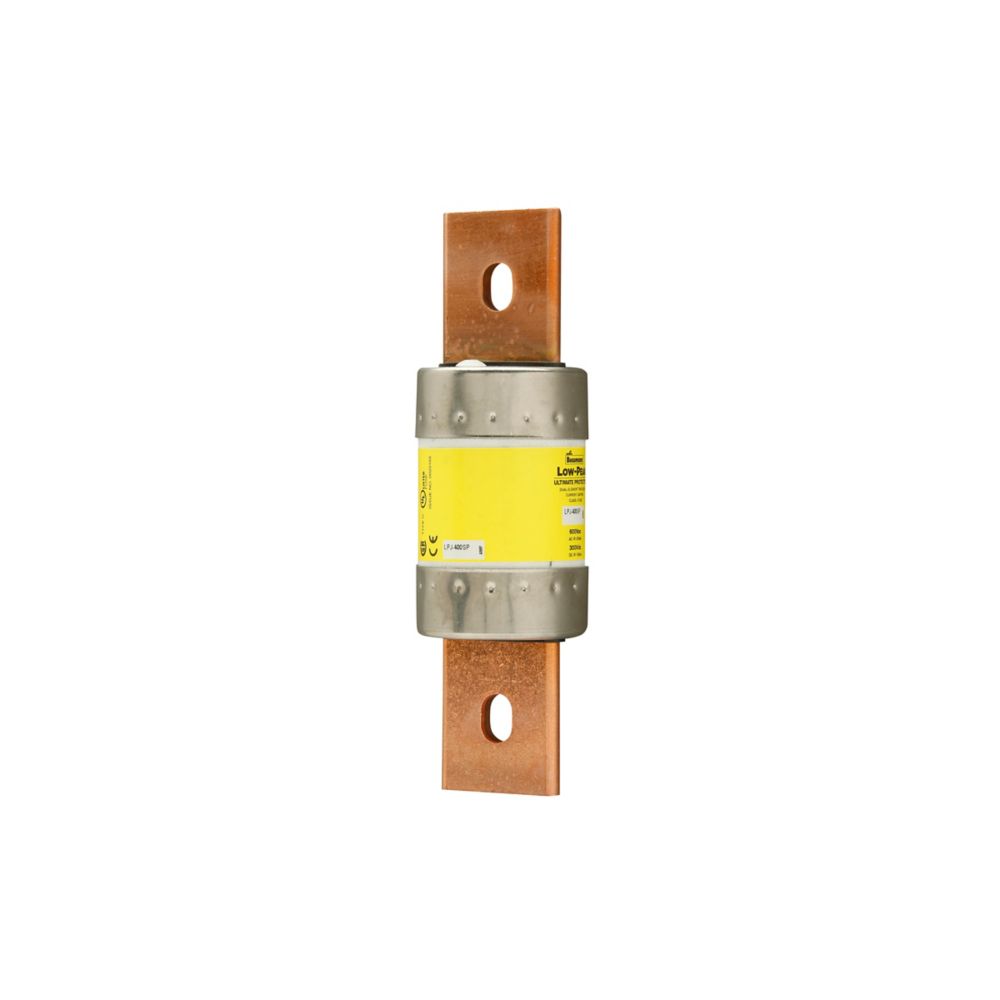

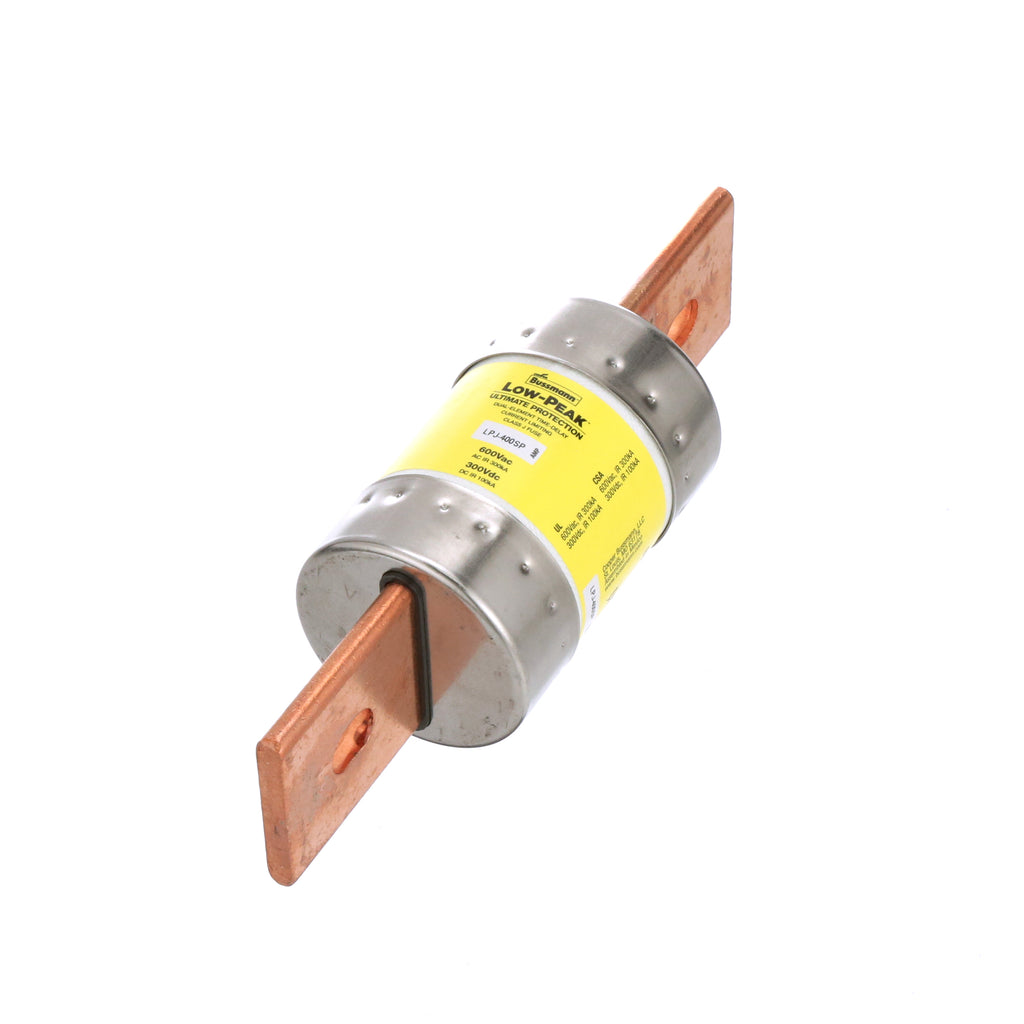

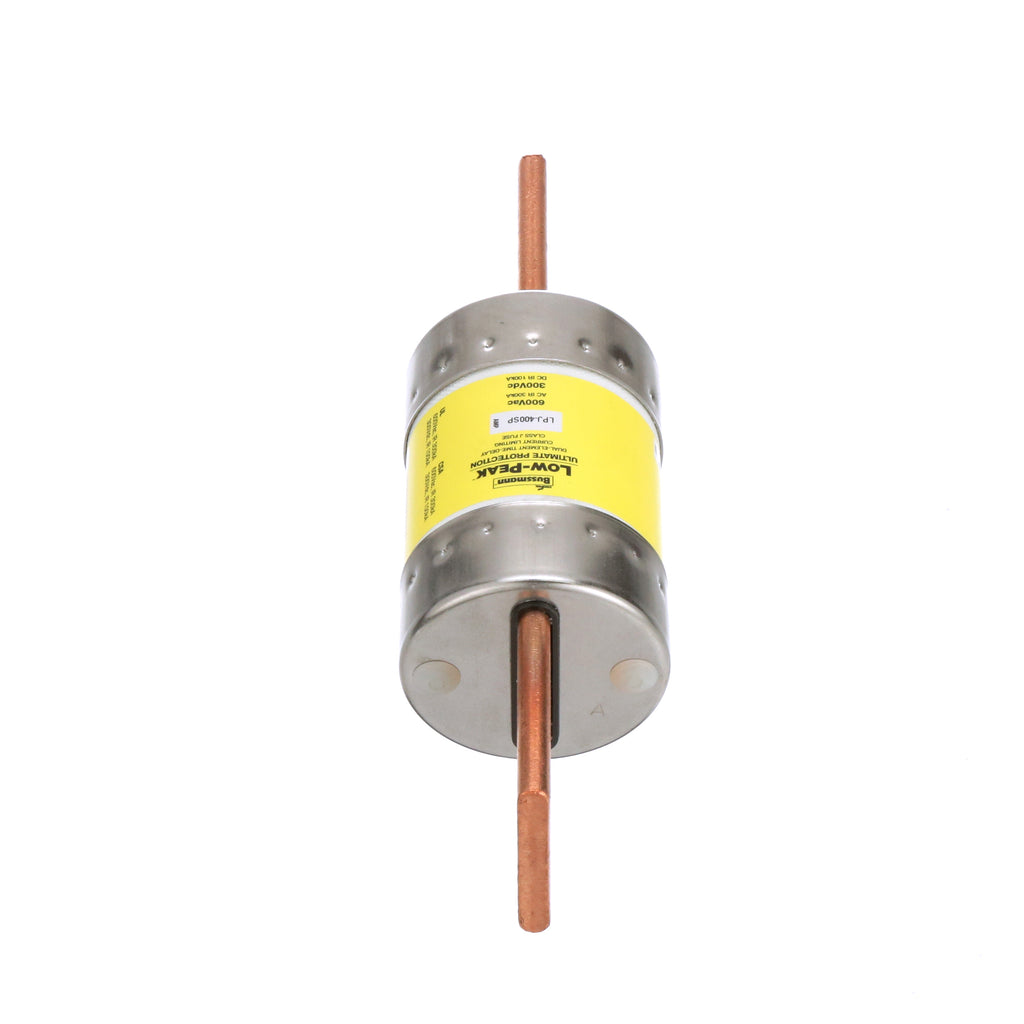

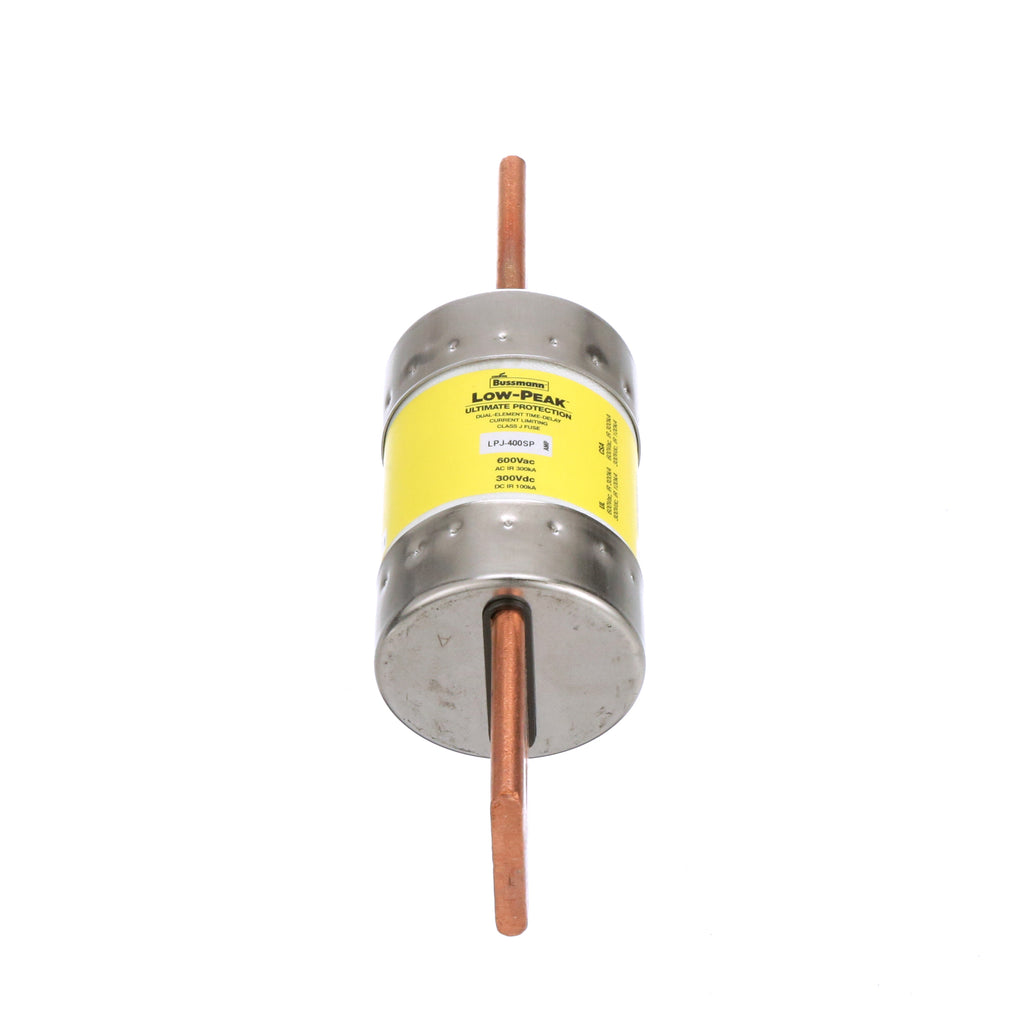

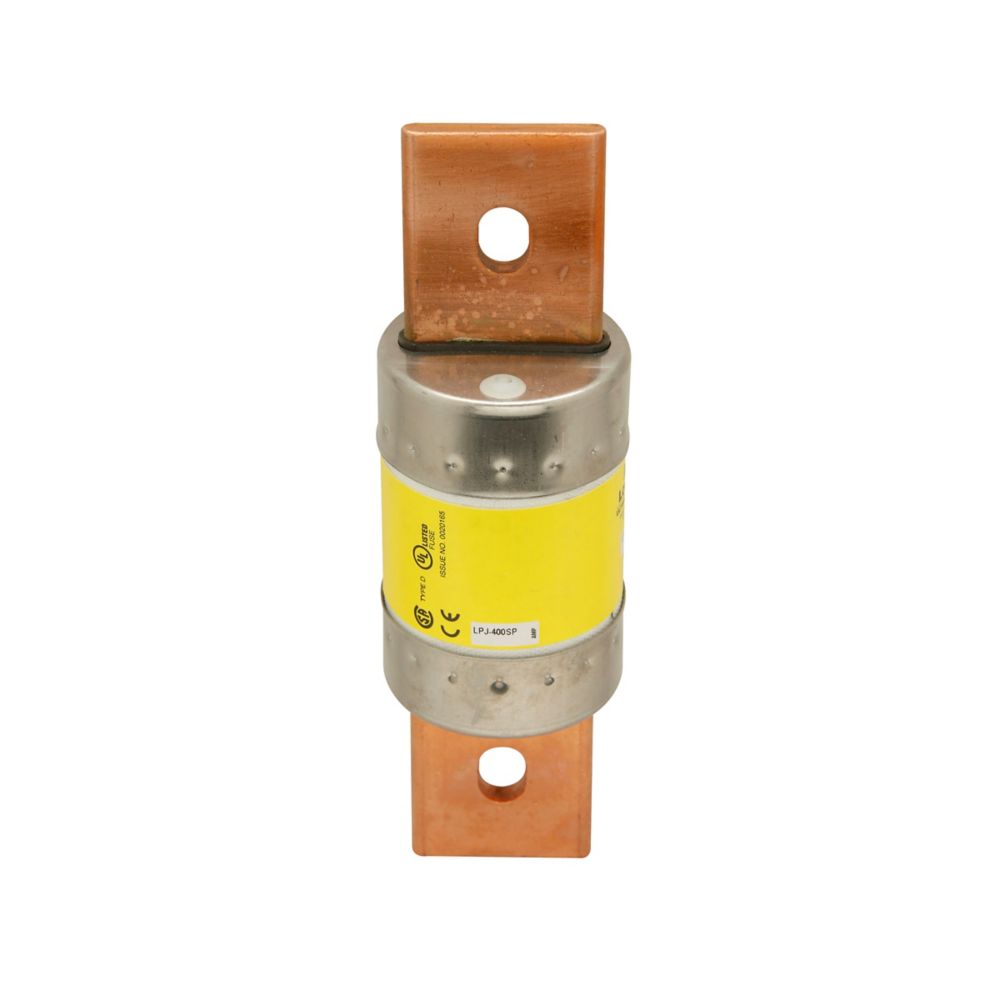

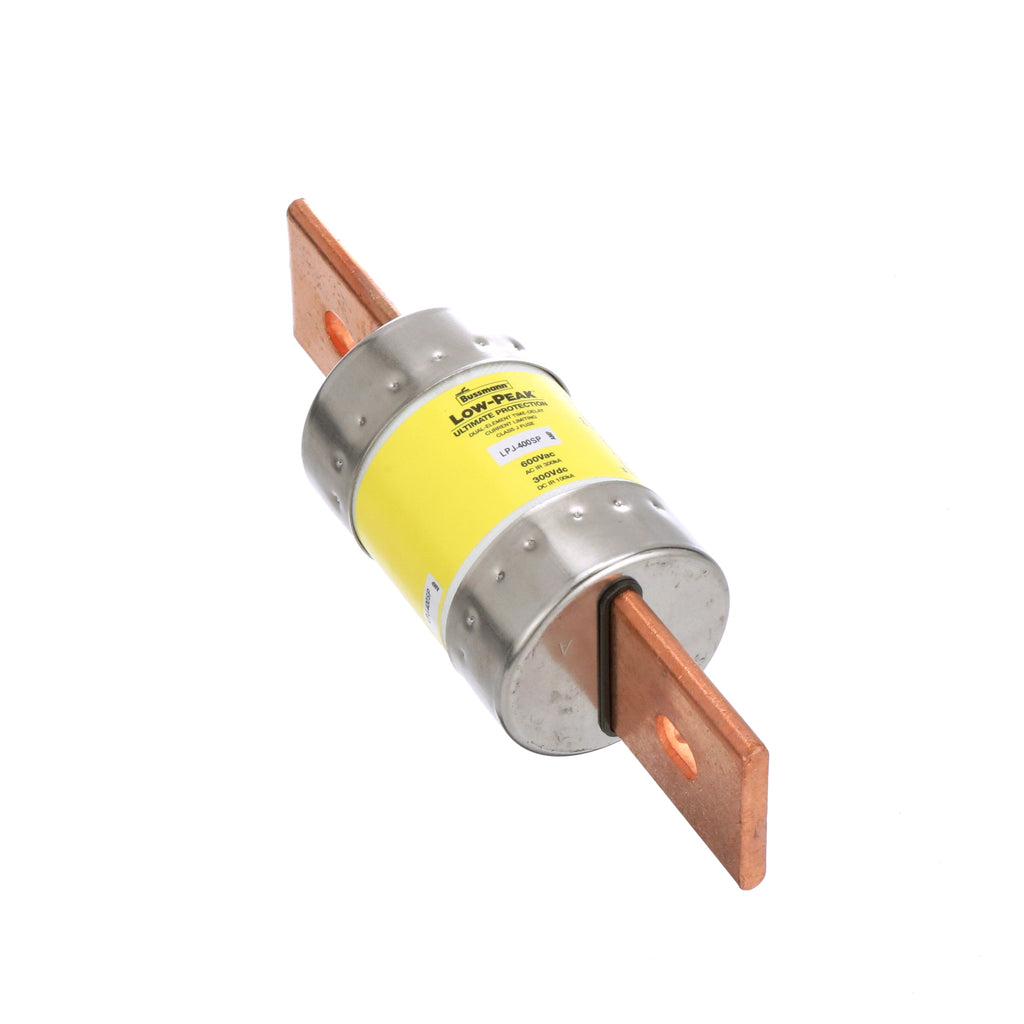

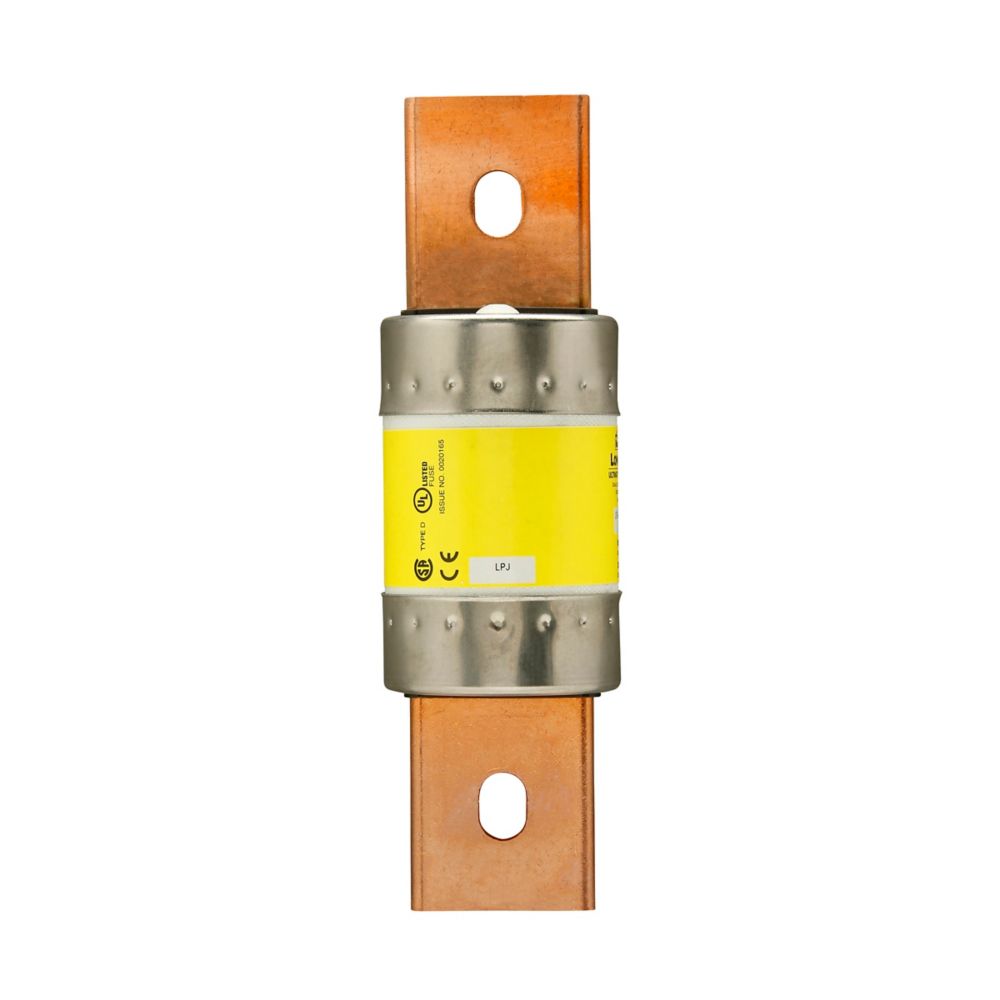

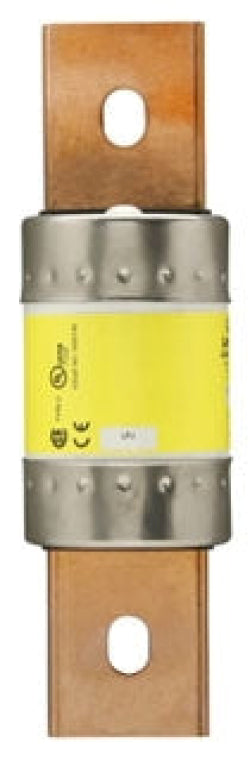

LPJ-400SP is a 400 amp, 600VAC Class J time delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse features a bolted blade end connection and provides a high interrupting rating of 300kA at 600VAC and 200kA at 300VDC. It is a non-indicating fuse suitable for use in industrial and commercial electrical systems requiring time-delay protection.
- Amperage: 400A
- Voltage Rating: 600VAC, 300VDC
- Fuse Class: Class J
- Time Delay: 10 seconds at 500% rated current
- Interrupting Rating: 300kA at 600VAC, 200kA at 300VDC
- Connection Type: Bolted blade end
- Fuse Size: 7-1/8 inches length x 2-1/8 inches diameter
- Dual-element, current-limiting design
- Non-indicating fuse
- Certifications: UL Listed
Specifications
- Part Number: LPJ-400SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 400
- AIC rating : 300kA@600V
- Diameter : 2.11
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712522847
- GTIN : 00051712522847
- Country of Origin : Mexico
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.5
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
