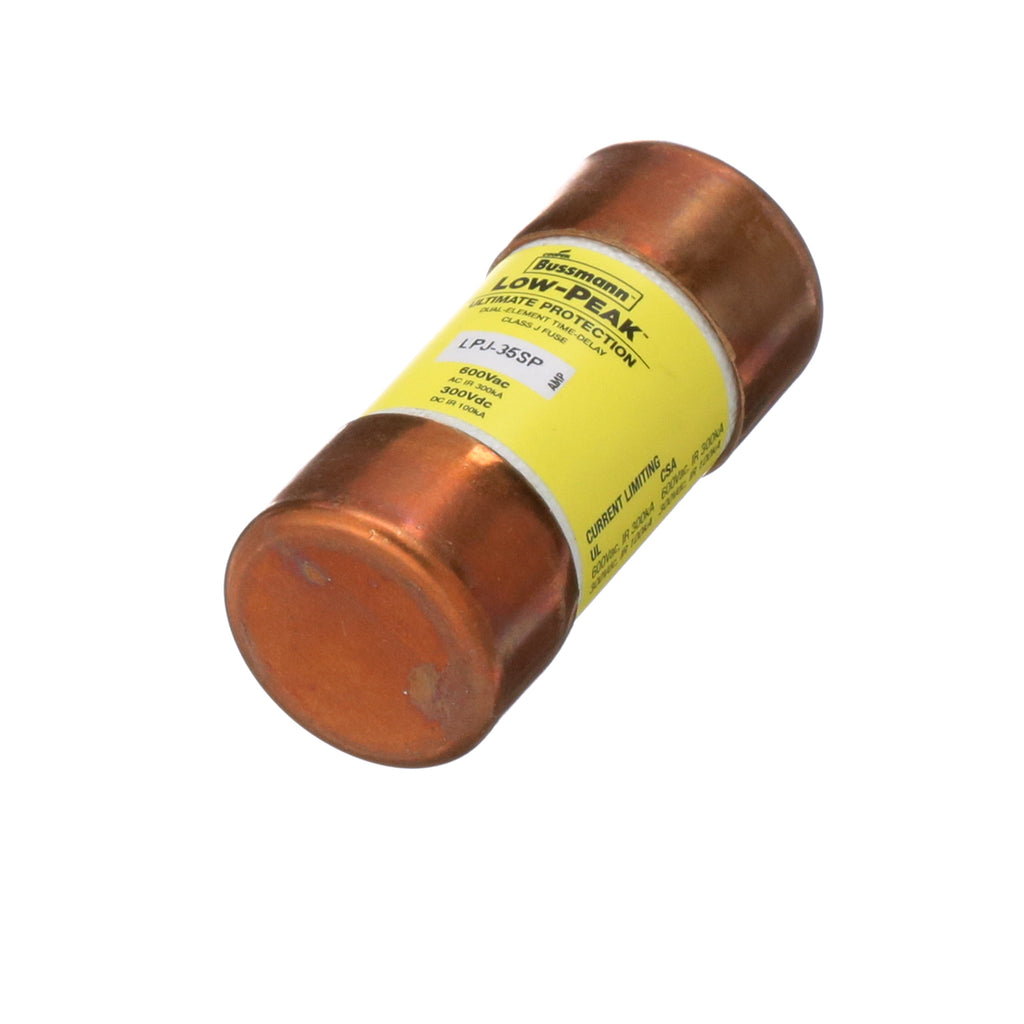

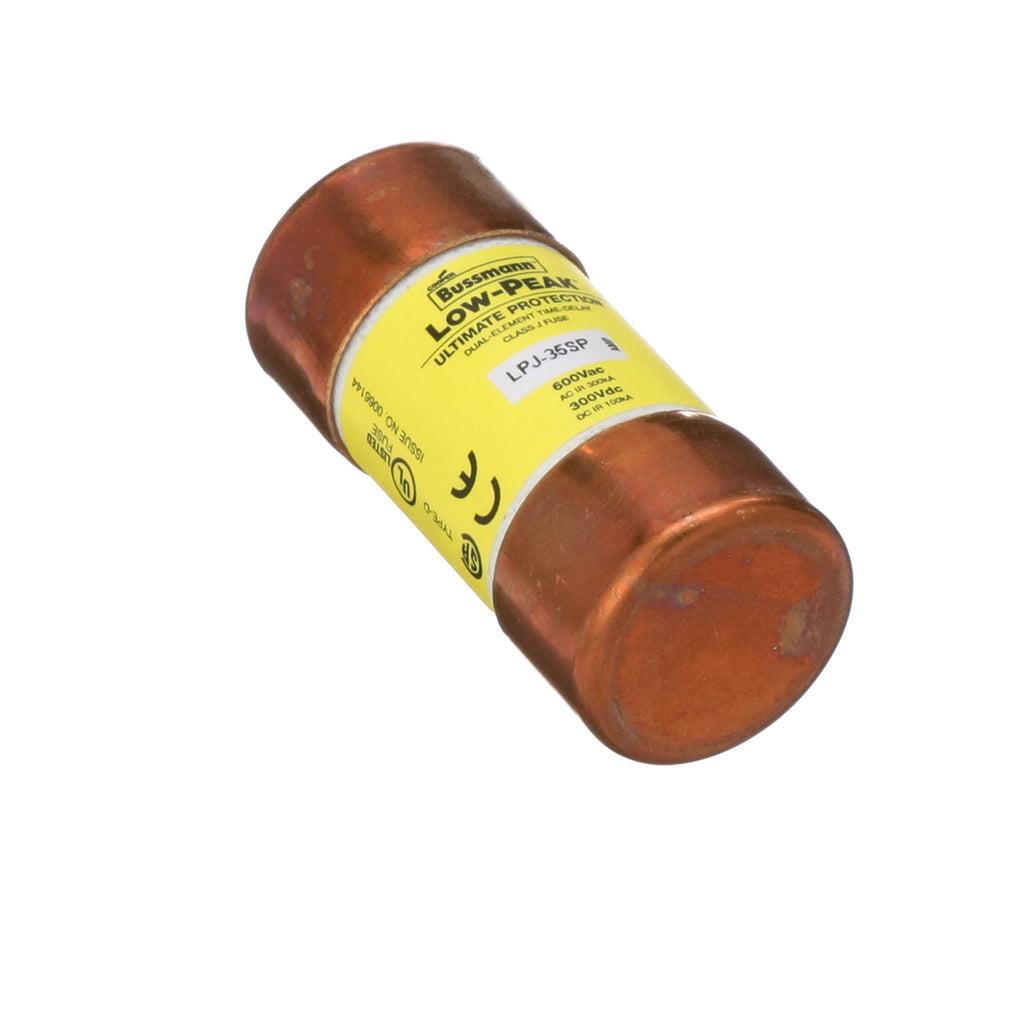

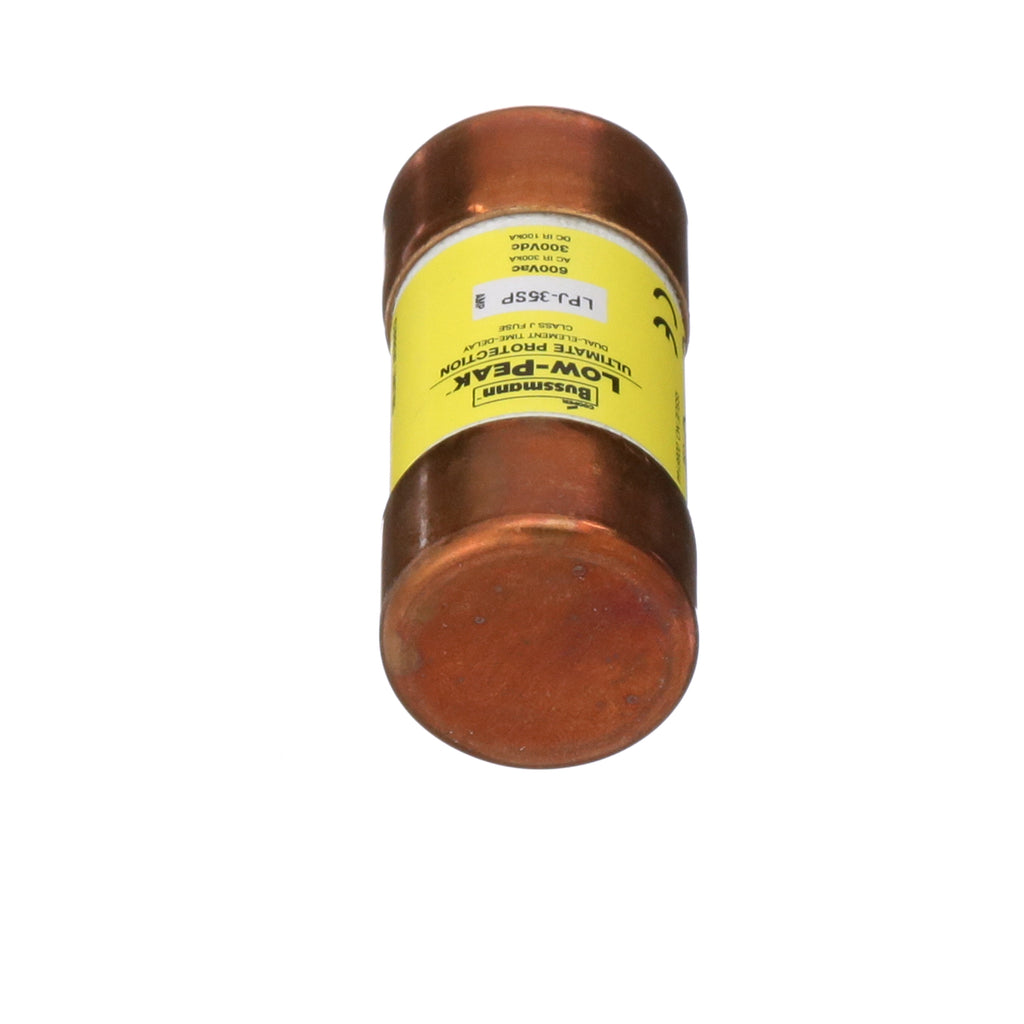

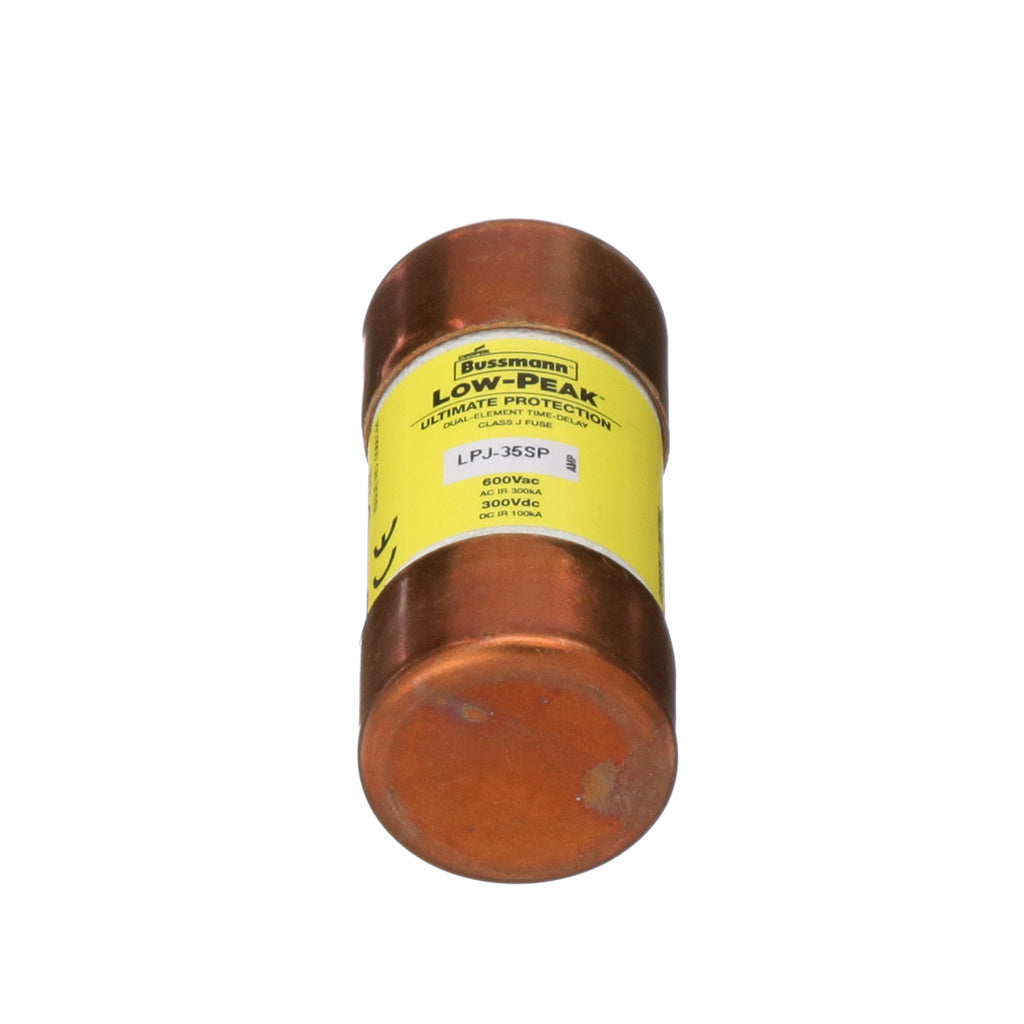

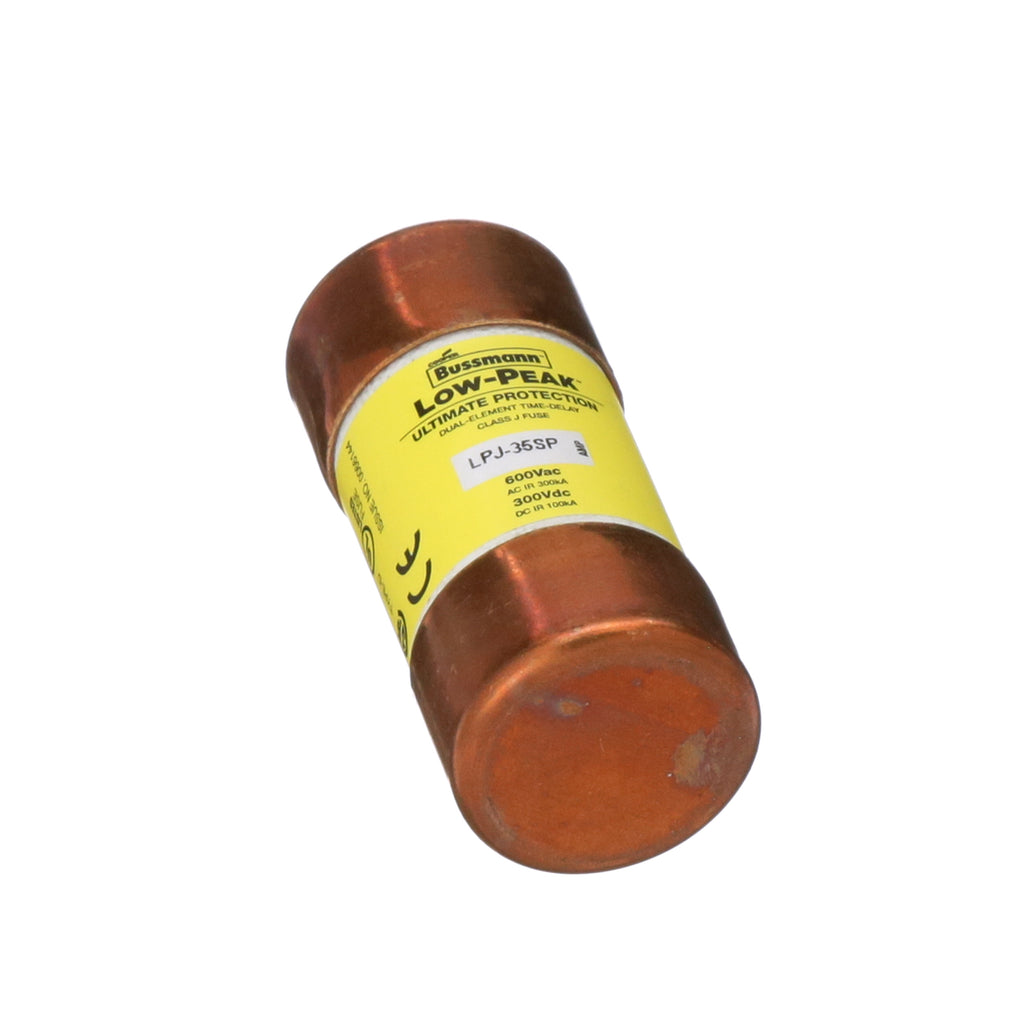

LPJ-35SP - Bussmann Eaton 35 Amp 600V Class J Time Delay Fuse Dual Element 300kA Interrupt Rating

LPJ-35SP

LPJ-35SP is a 35 Amp, 600 Volt AC Class J time delay fuse manufactured by Bussmann Eaton, designed for reliable circuit protection.This dual-element fuse features a 10 second time delay at 500% rating, high current limitation, and a 300,000 AIC interrupting rating at 600VAC, with 100,000 AIC DC interrupting rating. It measures 1.06 inches in diameter by 2.38 inches in length and is UL Listed and CSA Certified for special purpose use.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class J
• Time Delay: 10 second minimum at 500% rating
• Element Type: Dual Element
• Interrupting Rating: 300,000 AIC RMS @ 600VAC, 100,000 AIC DC
• Dimensions: 1.06 in diameter x 2.38 in length
• Certifications: UL Listed (Guide JFHR, File E56412), CSA Certified (Class 1422-02, File 53787)
• High degree of current limitation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-35SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 35
• AIC rating : 300kA@600V
• Diameter : 1.06
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523325
• GTIN : 00051712523325
• Country of Origin : Mexico
• Dimensions : x 2-3/8 in x
• Weight : 1
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
