Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

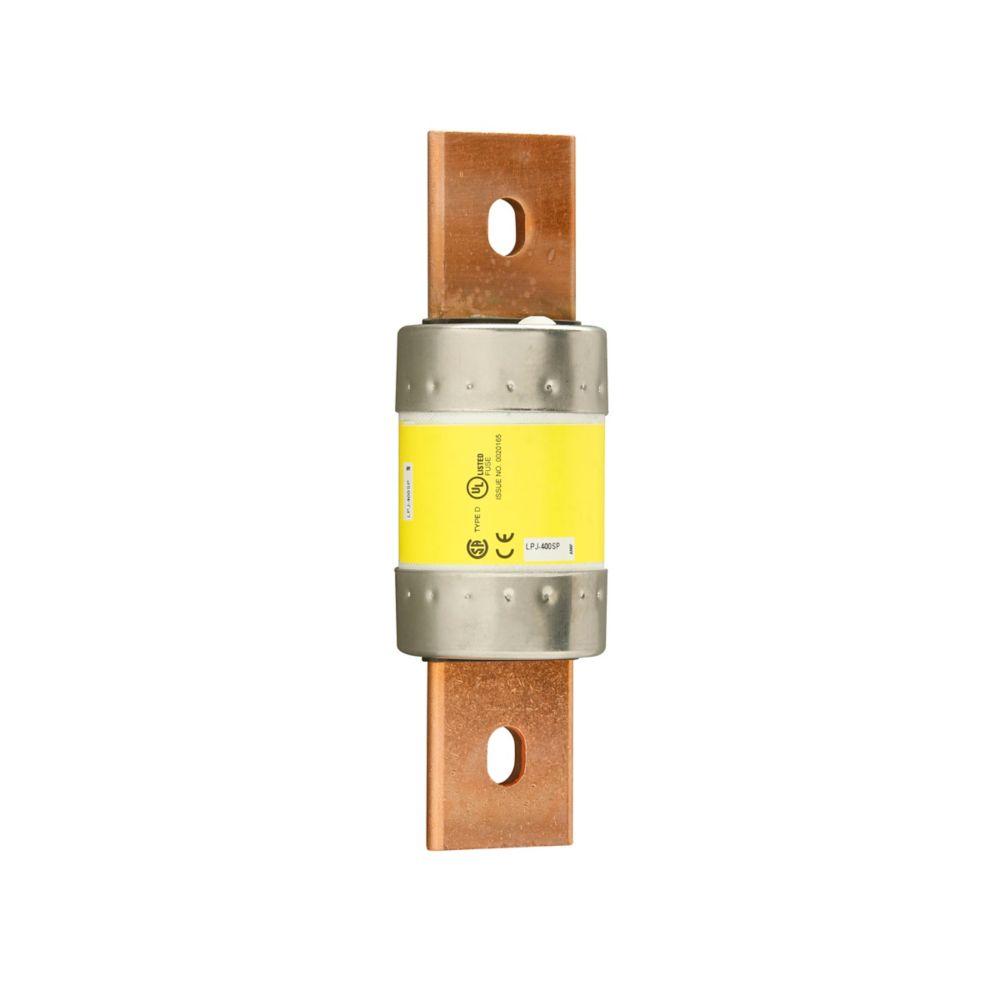

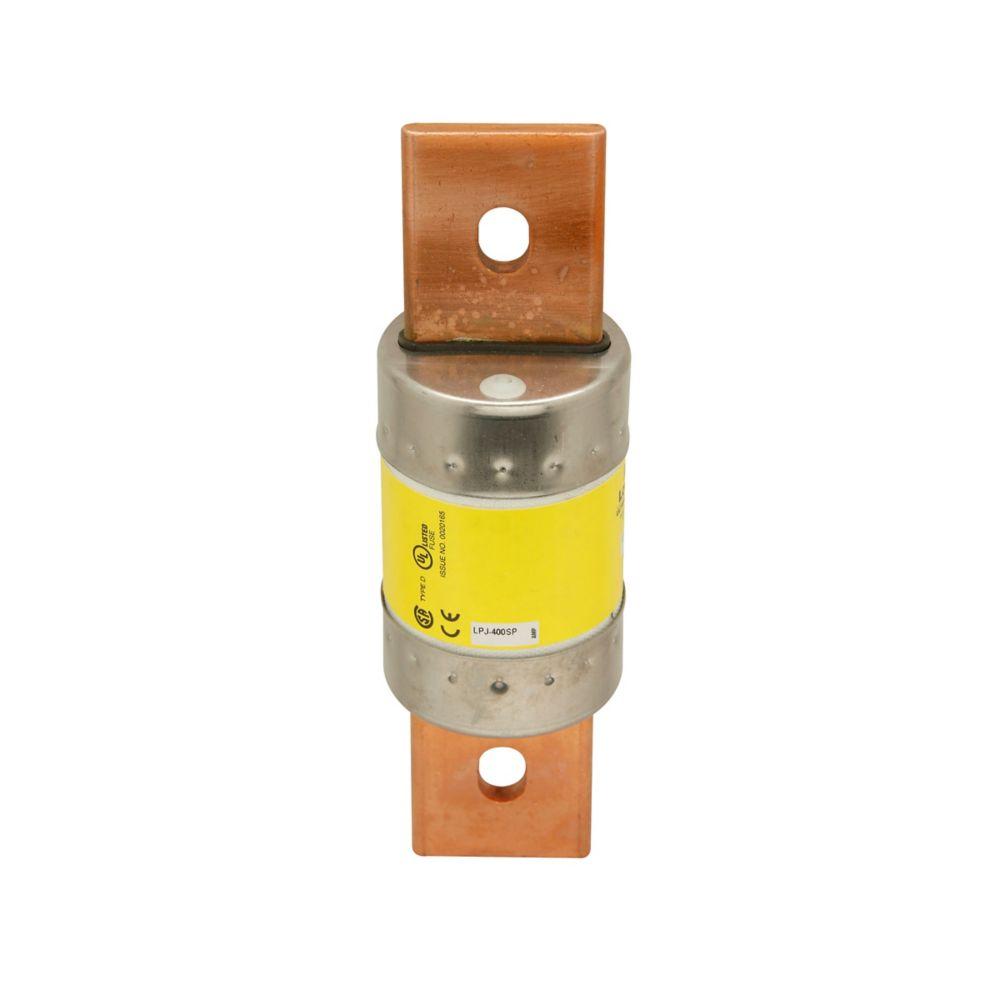

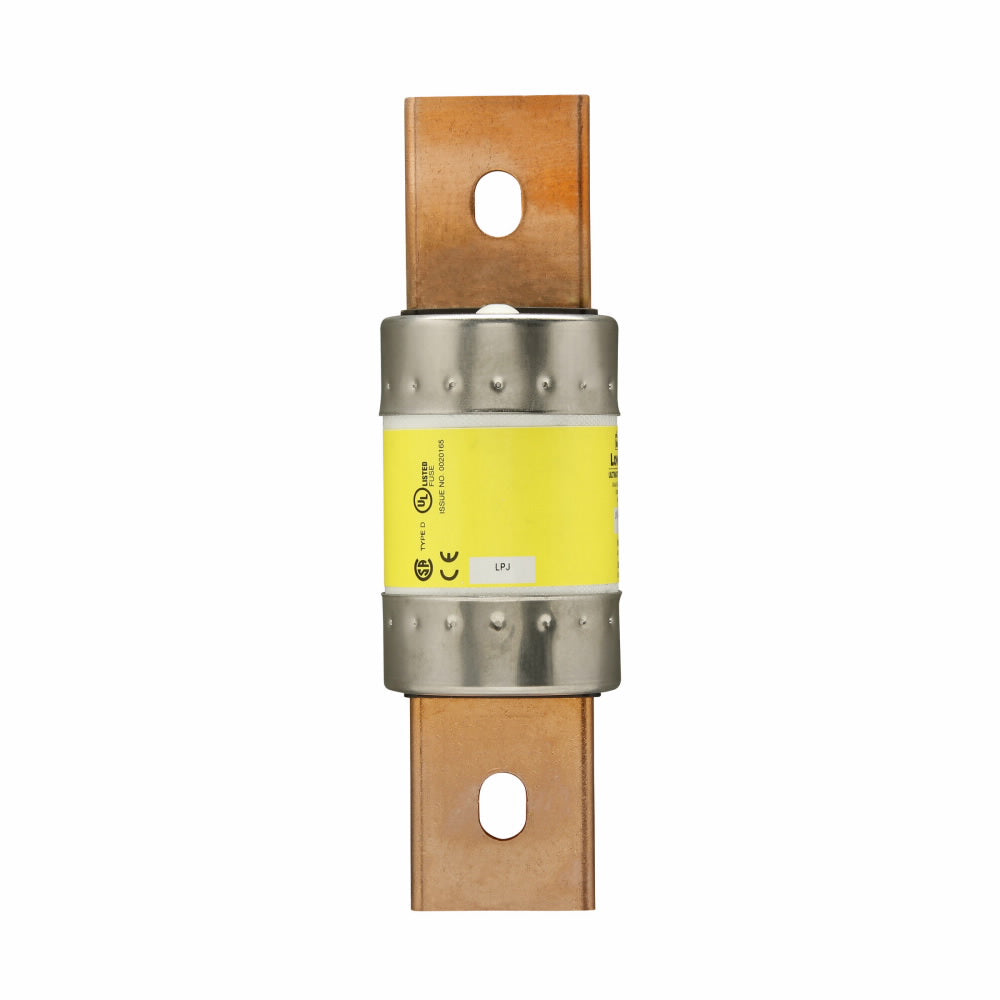

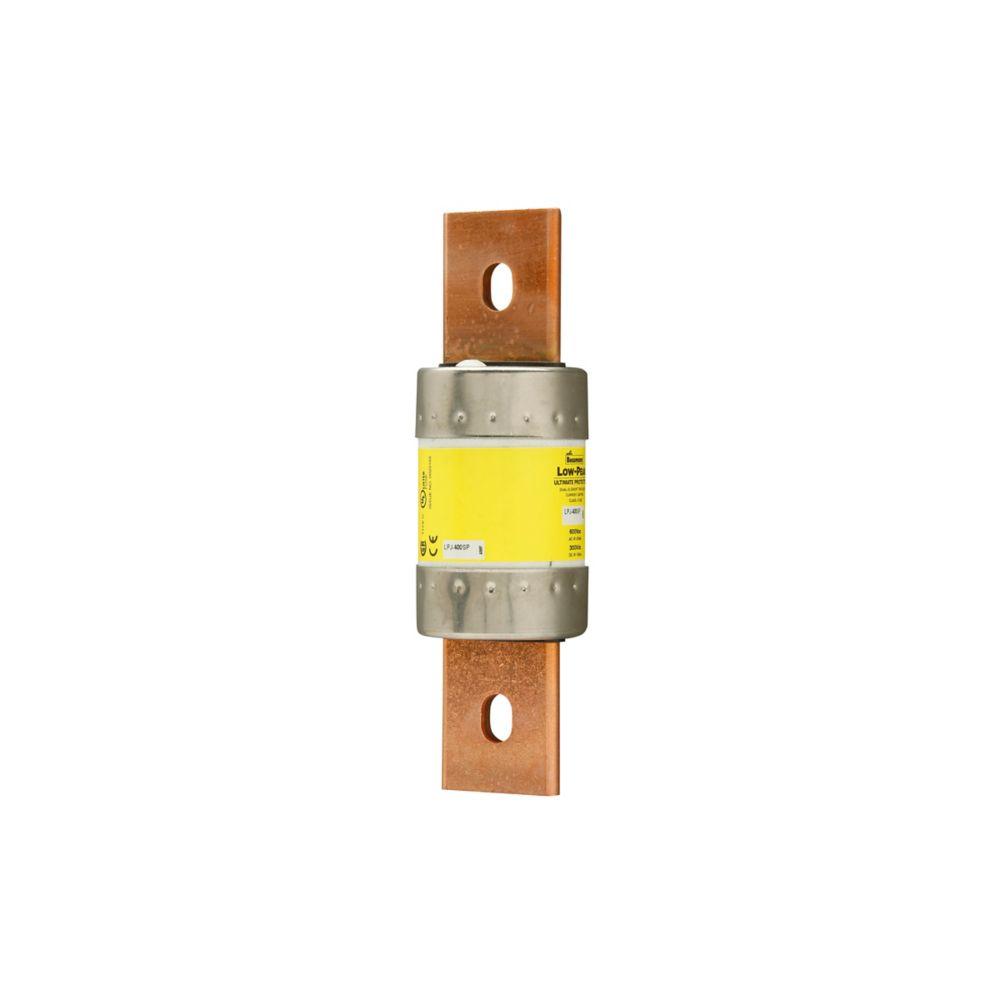

LPJ-350SP
LPJ-350SP is a 350 Amp, 600 VAC, Class J time delay fuse designed for reliable circuit protection.LPJ-350SP is a dual-element, current-limiting, non-indicating cartridge fuse with a 10-second time delay at 500% rated amps. It features a 300 kA interrupt rating at 600 VAC and 100 kA at 300 VDC, suitable for motor starter and branch circuit protection. The fuse has a bolted blade terminal type and is UL listed, CSA certified, and CE marked for safety and performance.
- Key Specifications
- Amperage Rating: 350 A
- Voltage Rating: 600 VAC / 300 VDC
- Class: J
- Fuse Type: Dual Element, Time Delay
- Interrupt Rating: 300 kA @ 600 VAC, 100 kA @ 300 VDC
- Body Type: Cartridge
- Terminal Type: Bolted Blade
- Mounting Type: Fuse Holder
- Response Time: 10 seconds at 500% rated amps
- Certifications: UL Listed, CSA Certified, CE Marked
- Material: Melamine
- Dimensions: 2.11 in diameter x 7.13 in length
Specifications
- Part Number: LPJ-350SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 350
- AIC rating : 300kA@600V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 051712522830
- GTIN : 00051712522830
- Country of Origin : Mexico
- Dimensions : 7.13 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 1.5
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
