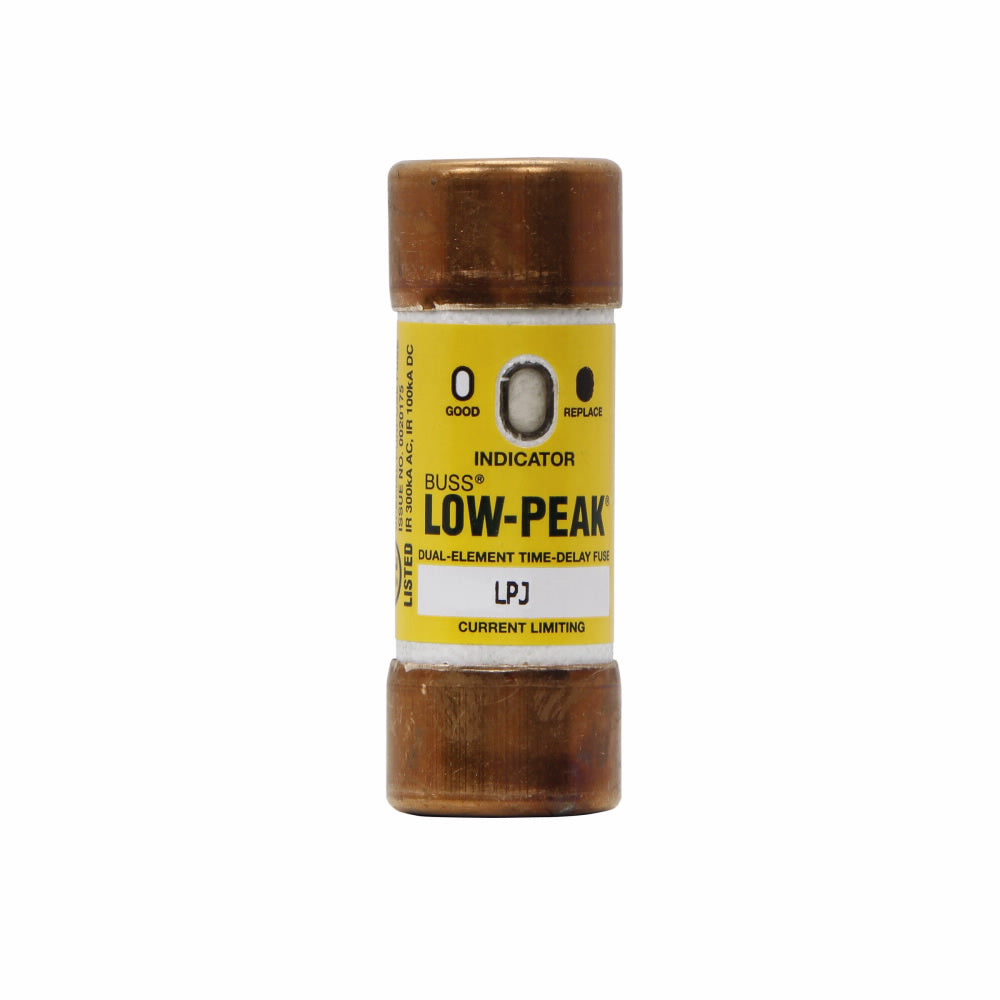

LPJ-30SPI - Eaton 30 Amp 600V AC Class J Time-Delay Dual Element Indicating Fuse

LPJ-30SPI

LPJ-30SPI is a 30 Amp, 600 Volt AC Class J time-delay dual element fuse with indicating feature from Eaton's Bussmann series.This Eaton LPJ-30SPI fuse offers current-limiting protection with a 10-second minimum time delay at 500% rating. It features a dual element design for high degree of current limitation, an indicating window for fuse status, and a ferrule end x ferrule end mounting style. The fuse has an interrupting rating of 300,000 AIC RMS at 600 VAC and 100,000 AIC at 300 VDC. It is UL Listed Special Purpose (Guide JFHR), CSA Certified, and meets Class J fuse standards.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Type: Time-Delay Dual Element
• Indicating Fuse: Yes
• Interrupting Rating: 300,000 AIC RMS @ 600 VAC
• Mounting Type: Ferrule end x ferrule end
• UL Listed: Guide JFHR, File E56412
• CSA Certified: Class J per CSA 22.2 No. 248.8
• Physical Size: 0.81" diameter x 2.25" length
• Series: Bussmann LPJ Class J
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPJ-30SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 30
• AIC rating : 300kA@600V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 05171262635
• GTIN : 00051712626354
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.108
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
