LPJ-3-2/10SP - Bussmann Eaton Class J Time Delay Fuse 3.2A 600V AC Dual Element

LPJ-3-2/10SP

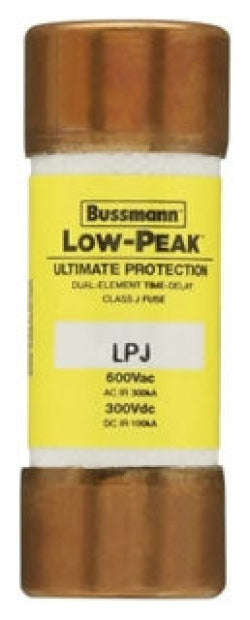

LPJ-3-2/10SP is a Bussmann Eaton Class J time delay fuse rated for 3.2 amps and 600 volts AC with dual element current limiting.This fuse features a 10-second minimum time delay at 500% rating, a cylindrical body measuring 0.81" x 2.25", and a high interrupting rating of 300,000 AIC RMS at 600VAC and 100,000 AIC at 300V DC. It is UL Listed (Guide JFHR, File E56412) and CSA Certified (Class J per CSA 22.2 No. 248.8). The fuse is non-indicating, non-rejection type, with ferrule terminals and designed for holder mounting.

Key Specifications
• Amperage: 3.2 Amps
• Voltage Rating: 600V AC / 300V DC
• Class: J
• Time Delay: 10 seconds minimum at 500% rating
• Interrupt Rating: 300,000 AIC RMS AC, 100,000 AIC DC
• Dual Element, Current Limiting
• Body Size: 0.81" diameter x 2.25" length
• Mounting Type: Holder
• Terminal Type: Ferrule
• UL Listed and CSA Certified
• Non-Indicating, Non-Rejection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-3-2/10SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 3
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522731
• GTIN : 00051712522731
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
