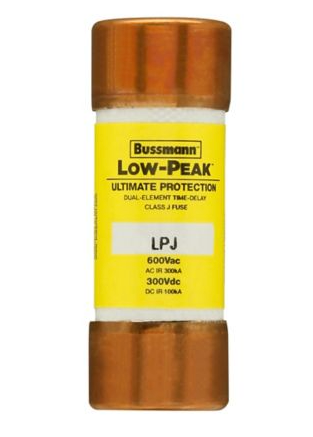

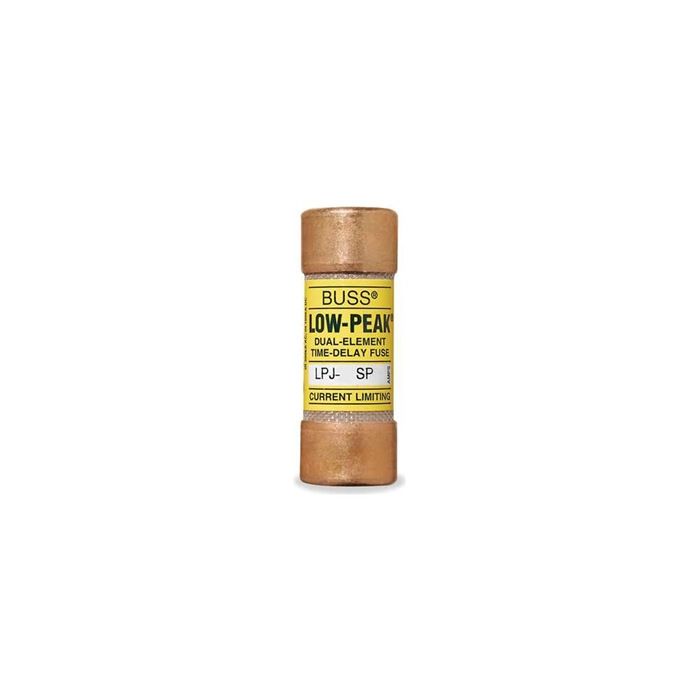

LPJ-3-1/2SP - Bussmann Class J Time Delay Fuse 3.5A 600V Dual Element 300kA Interrupt Rating

LPJ-3-1/2SP

LPJ-3-1/2SP is a Bussmann Class J time delay fuse rated for 3.5 amps and 600 volts AC, designed for reliable circuit protection.This dual element, current-limiting fuse features a 10-second minimum time delay at 500% overload, providing superior protection for motors and circuits with temporary surges. It has a high interrupting rating of 300,000 AIC RMS at 600VAC and 100,000 AIC at 300VDC. The fuse is UL Listed and CSA Certified, with a compact cylindrical body measuring 0.81" x 2.25" and designed for holder mounting.

Key Specifications
• Amperage: 3.5 Amps
• Voltage Rating: 600V AC / 300V DC
• Class: J
• Time Delay: 10 seconds minimum at 500% rated current
• Dual Element, Current Limiting
• Interrupt Rating: 300,000 AIC AC / 100,000 AIC DC
• Mounting Type: Fuse Holder
• Body Size: 0.81" diameter x 2.25" length
• UL Listed Special Purpose, Guide JFHR
• CSA Certified, Class 1422-02

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-3-1/2SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 3
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522779
• GTIN : 00051712522779
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
