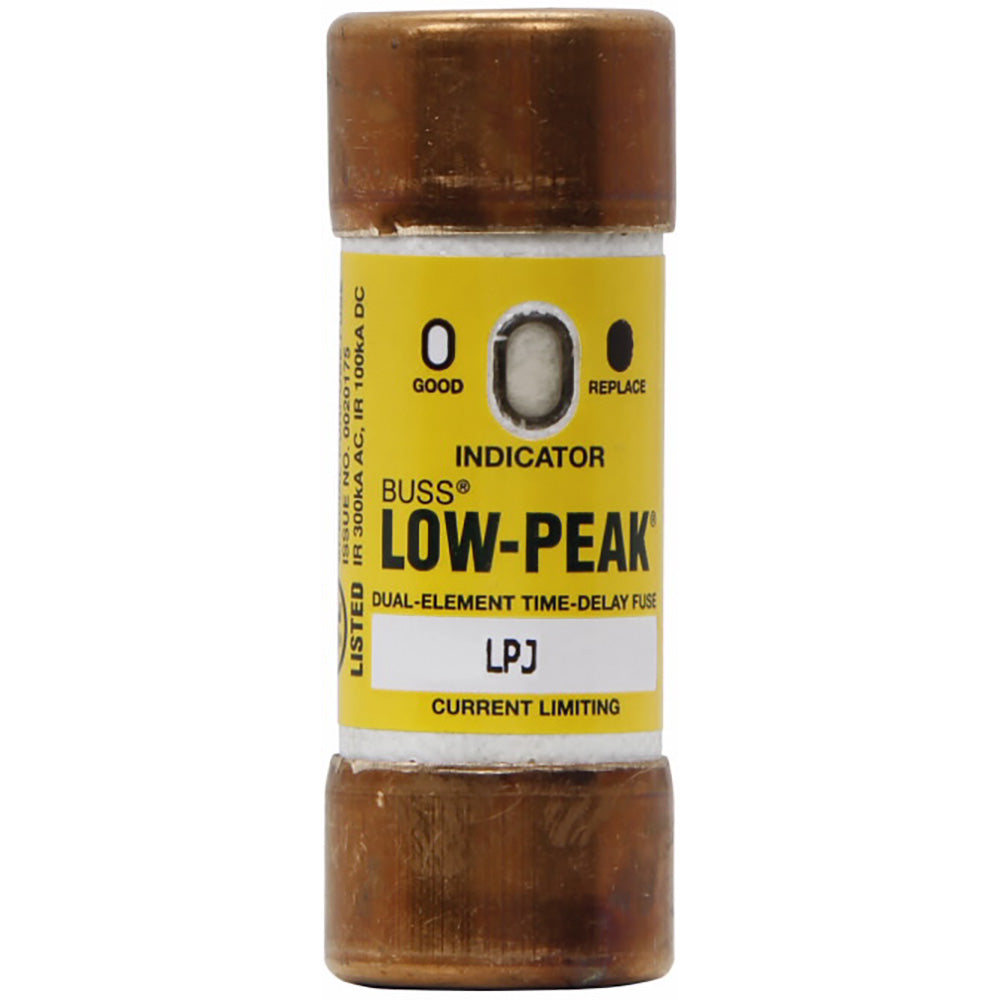

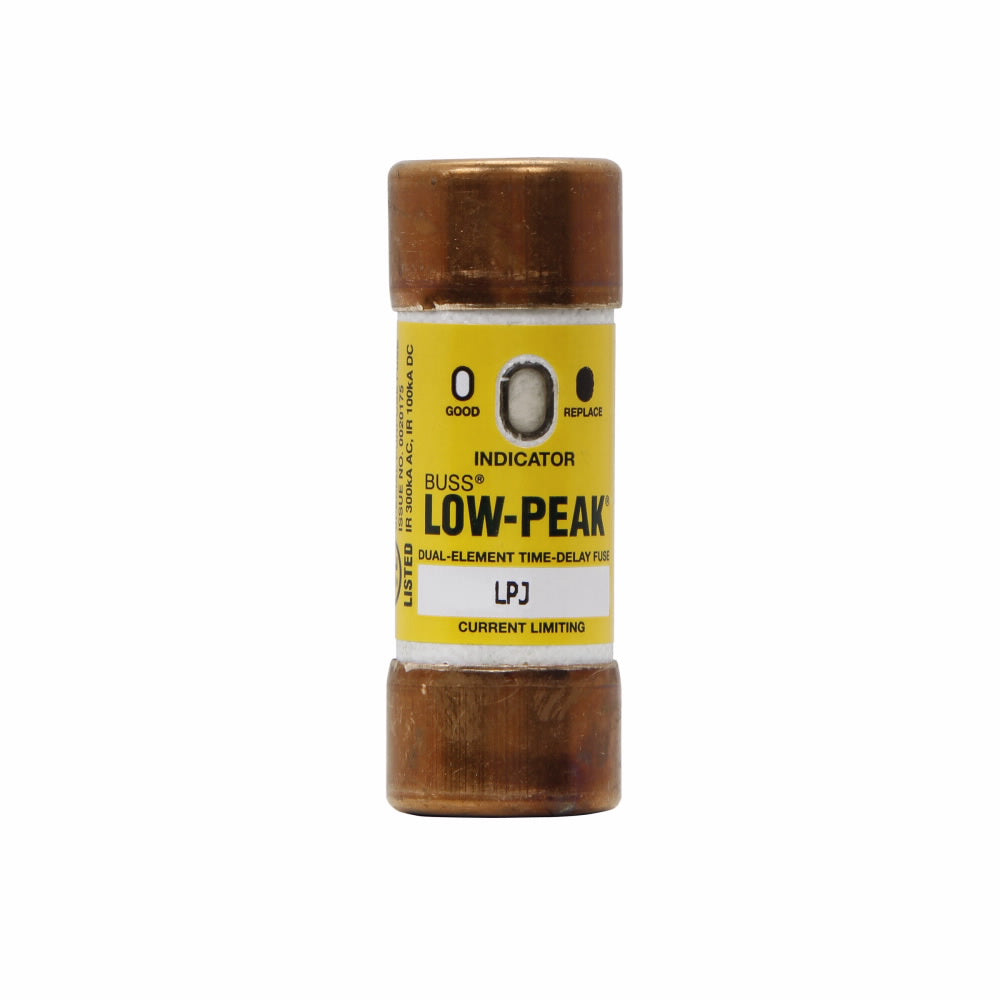

LPJ-25SPI - Eaton Bussmann Class J 25A 600Vac/300Vdc Dual Element Time Delay Fuse with Indicator

LPJ-25SPI

LPJ-25SPI is an Eaton Bussmann Class J fuse designed for reliable circuit protection with a 25 amp rating and dual element time-delay technology.This fuse features a 600 Vac and 300 Vdc voltage rating, a 300 kA interrupt rating at 600 Vac, and 100 kA at 300 Vdc. It is a dual-element, current-limiting, time-delay fuse with an indicating feature for open fuse status. The fuse has ferrule end connections and is suitable for high inrush current motor protection applications. It complies with CE marking and RoHS standards.

Key Specifications
• Amperage: 25 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Fuse Type: Time delay, current-limiting, dual element
• Class: Class J
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Indicating
• Response Time: 10 seconds at 500% rated current
• Physical Size: 0.81 in diameter x 2.25 in length
• Certifications: CE Marked, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPJ-25SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 25
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 051712626347
• GTIN : 00051712626347
• Country of Origin : Mexico
• Dimensions : 2.25 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.18
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
