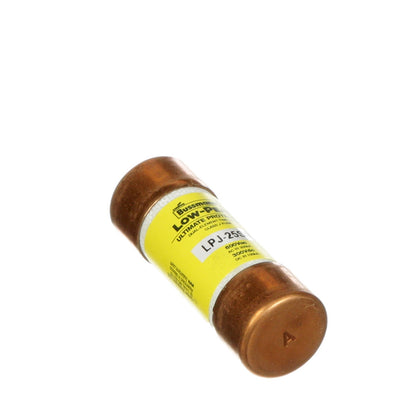

LPJ-25SP - Eaton Bussmann 25 Amp 600 Volt Class J Time Delay Fuse 300kA Interrupt Rating

LPJ-25SP

LPJ-25SP is a 25 Amp, 600 Volt, Class J time delay fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, current-limiting fuse features a 10-second time delay at 500% rated load, ferrule end connections, and a high interrupting rating of 300,000 AIC at 600 VAC and 100,000 AIC at 300 VDC. It is UL Listed and CSA Certified for industrial and specialized circuit applications.

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: Class J
• Fuse Type: Time Delay, Dual Element
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Dimensions: 0.81 in diameter x 2.25 in length
• Certifications: UL Listed, CSA Certified
• Series: Low-Peak LPJ

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-25SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 25
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523288
• GTIN : 00051712523288
• Country of Origin : Mexico
• Dimensions : x 2-1/4 in x
• Weight : 1
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
