2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

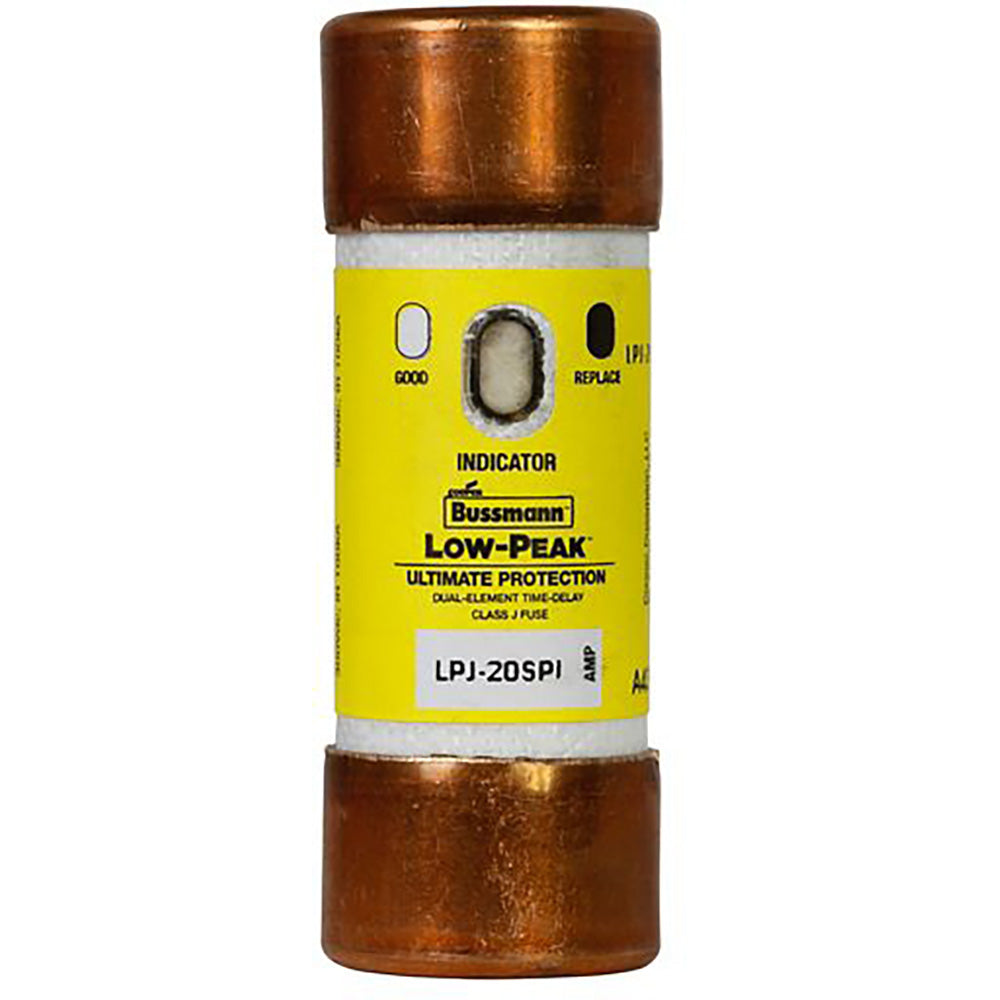

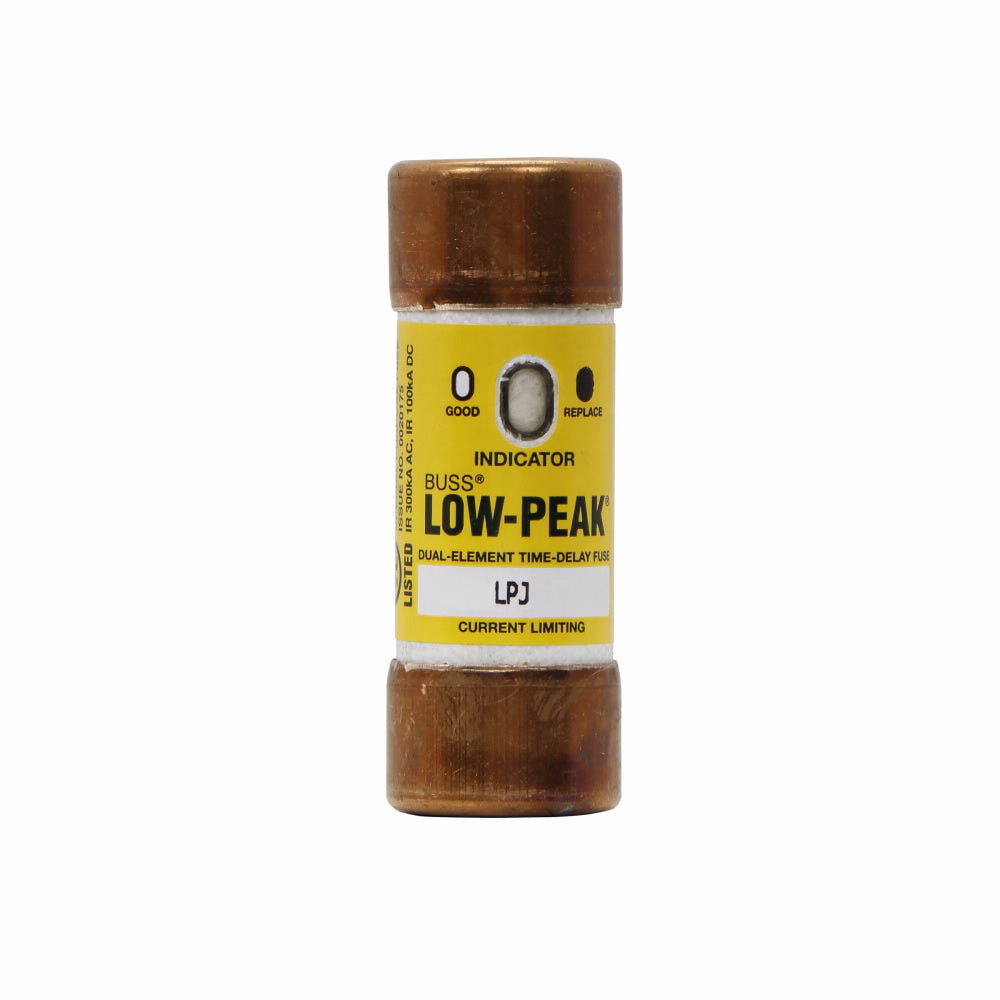

LPJ-20SPI
LPJ-20SPI is a 20A Class J time-delay, dual-element, current-limiting fuse with open fuse indication, designed for reliable circuit protection in industrial and commercial applications. This Eaton Bussmann Series Low-Peak LPJ fuse features a 600VAC rating and a 300kA interrupting rating, providing robust protection for electrical systems. The indicating version (suffix I) provides visual confirmation of fuse status, making maintenance and troubleshooting easier. The fuse is time-delay, allowing for temporary current surges without nuisance tripping, and is suitable for use in fuse blocks and disconnects rated for Class J fuses.
- 20A rated current
- 600VAC voltage rating
- 300kA interrupting rating (AC)
- Class J fuse type
- Time-delay (dual-element)
- Indicating fuse (visual open indication)
- Cartridge body style
- UL Listed
- CSA Certified
- RoHS compliant
Specifications
- Part Number: LPJ-20SPI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 20
- AIC rating : 300kA@600V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 05171262633
- GTIN : 00051712626330
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.105
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
