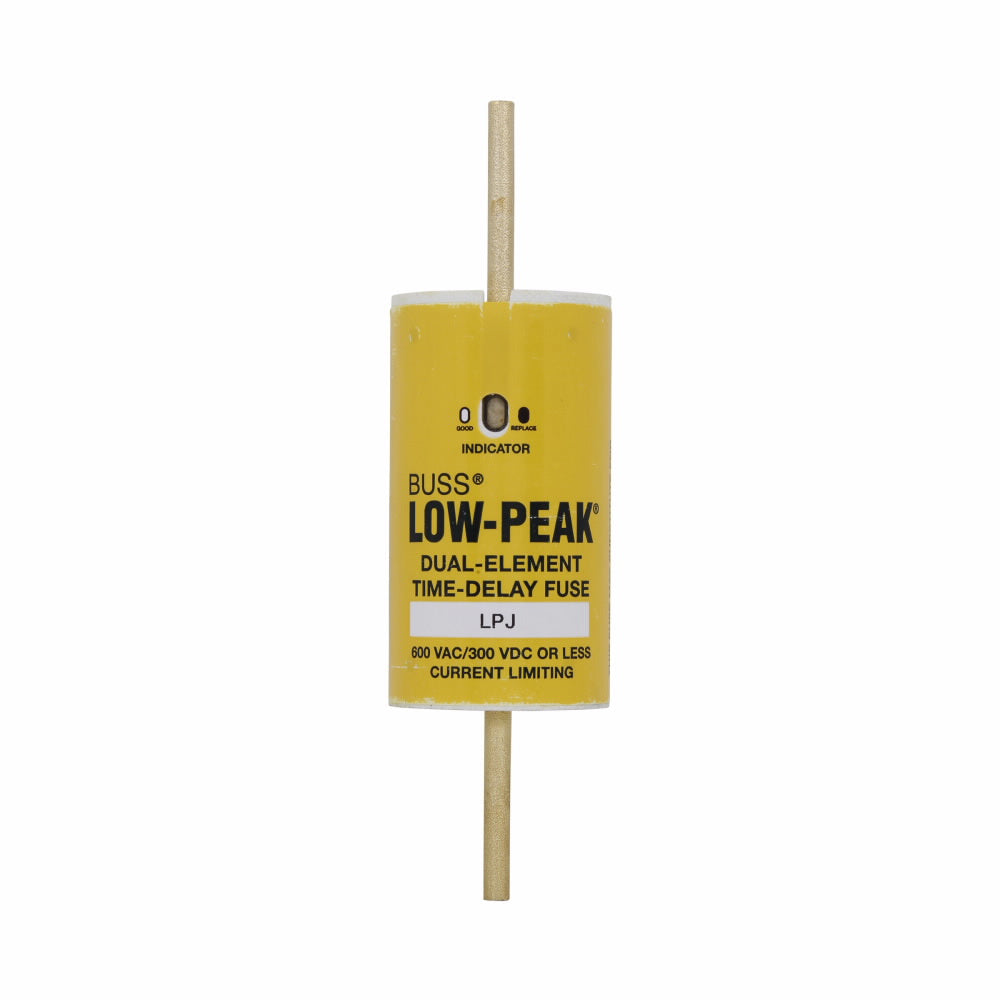

LPJ-200SPI - Eaton Bussmann 200A 600Vac Class J Dual-Element Time-Delay Fuse with Indicator

LPJ-200SPI

LPJ-200SPI is a 200 amp, 600 Vac, Class J dual-element time-delay fuse with an indicator for easy status identification.This Eaton Bussmann Low-Peak fuse features a bolted blade end x bolted blade end mounting type, providing reliable current limiting and time-delay protection. It has an interrupt rating of 300 kA at 600 Vac and 100 kA at 300 Vdc, designed for industrial and commercial power distribution applications. The fuse reduces inventory needs by covering a wide range of protection requirements with one series.

Key Specifications
• Amperage: 200 A
• Voltage Rating: 600 Vac / 300 Vdc
• Fuse Class: J
• Fuse Type: Dual-element, time-delay
• Mounting Type: Bolted blade end x bolted blade end
• Interrupt Rating: 300 kA at 600 Vac, 100 kA at 300 Vdc
• Indicator: Yes, for blown fuse status
• Series: Low-Peak LPJ
• Current Limiting: Yes
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: LPJ-200SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 200
• AIC rating : 300kA@600V
• Diameter : 1.63
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 051712628235
• GTIN : 00051712628235
• Country of Origin : Mexico
• Dimensions : 2.38 in x 1.06 in x 1.06 in (Length/Depth x Height x Width)
• Weight : 0.73
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
