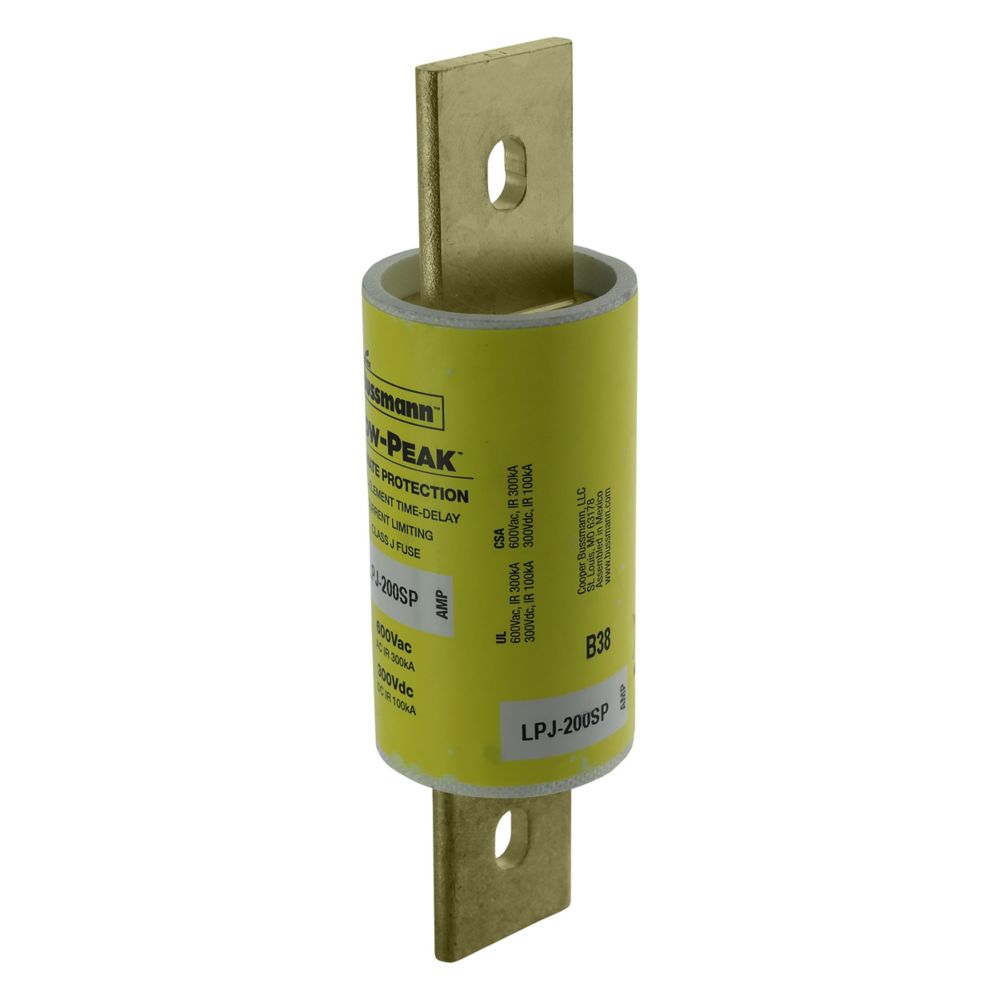

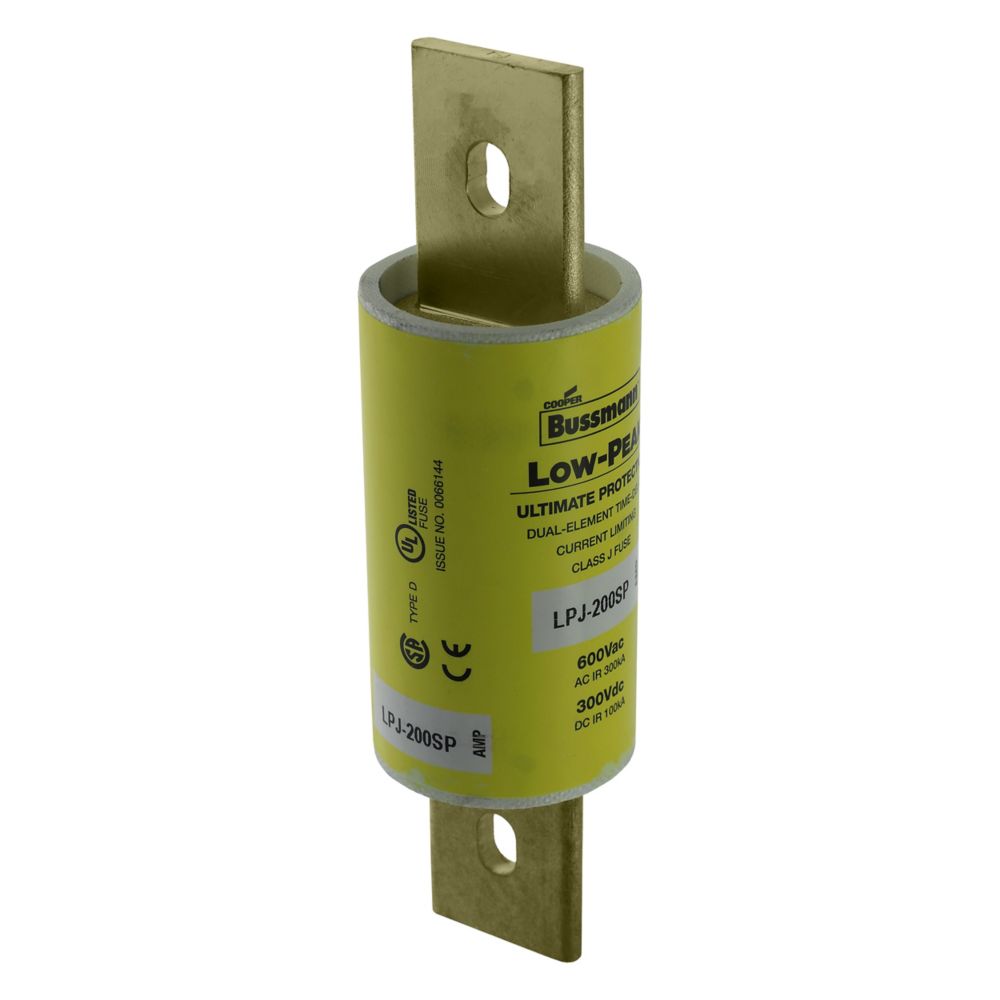

LPJ-200SP - Eaton Bussmann Class J Time-Delay Fuse 200A 600V Dual Element Non-Indicating

LPJ-200SP

LPJ-200SP is a Eaton Bussmann Class J time-delay, dual-element current-limiting fuse rated for 200 amps and 600 volts AC.This fuse features a non-indicating design with a bolted blade end connection, providing high inrush current motor protection and a 300 kA interrupting rating at 600 VAC and 100 kA at 300 VDC. It complies with UL 248-8, CSA C22.2 No. 248.8, CE marking, and RoHS standards.

• Amperage: 200 A
• Voltage Rating: 600 VAC, 300 VDC
• Interrupting Rating: 300 kA at 600 VAC, 100 kA at 300 VDC
• Fuse Type: Time-delay, dual-element current limiting
• Class: Class J
• Connection: Bolted blade end x bolted blade end
• Fuse Indicator: Non-indicating
• Dimensions: 5.75 in length, 1.5 in width and height
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Response Time: 10 seconds minimum at 500% rated current

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-200SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 200
• AIC rating : 300kA@600V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 051712523455
• GTIN : 00051712523455
• Country of Origin : Mexico
• Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.75
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
