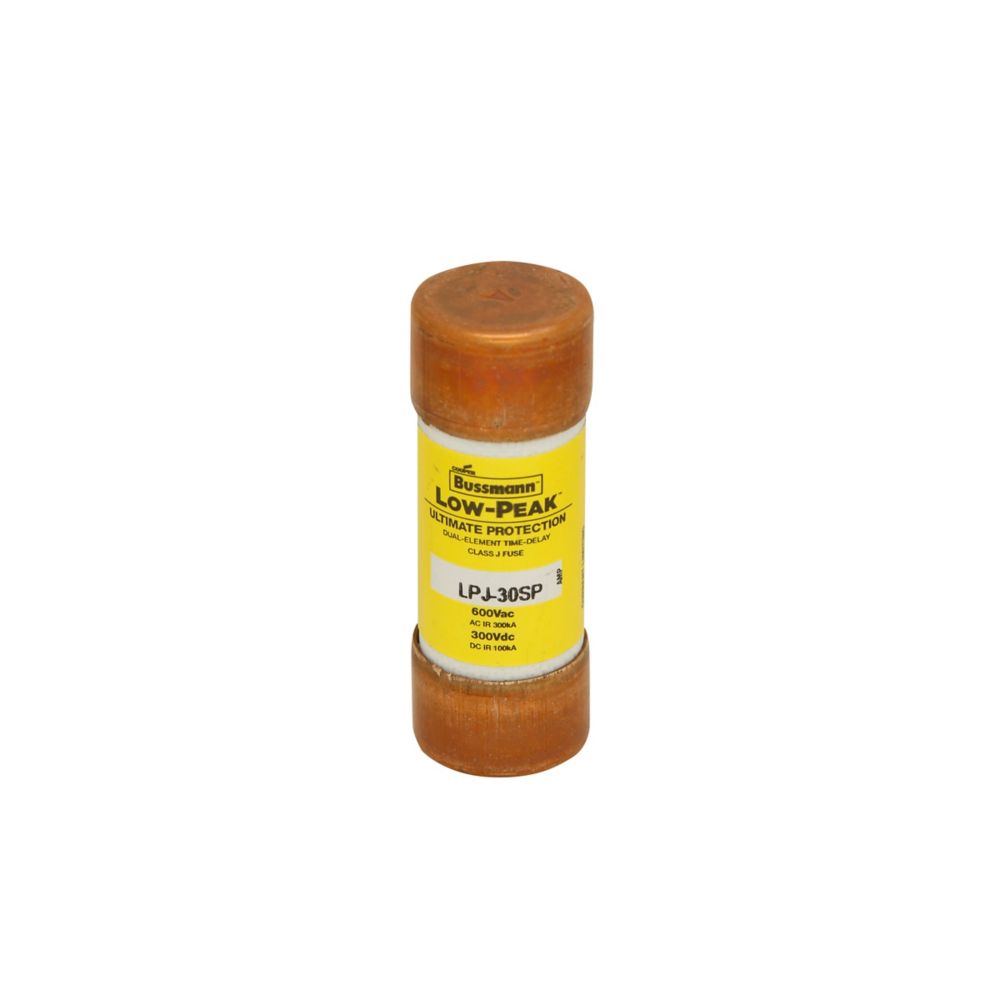

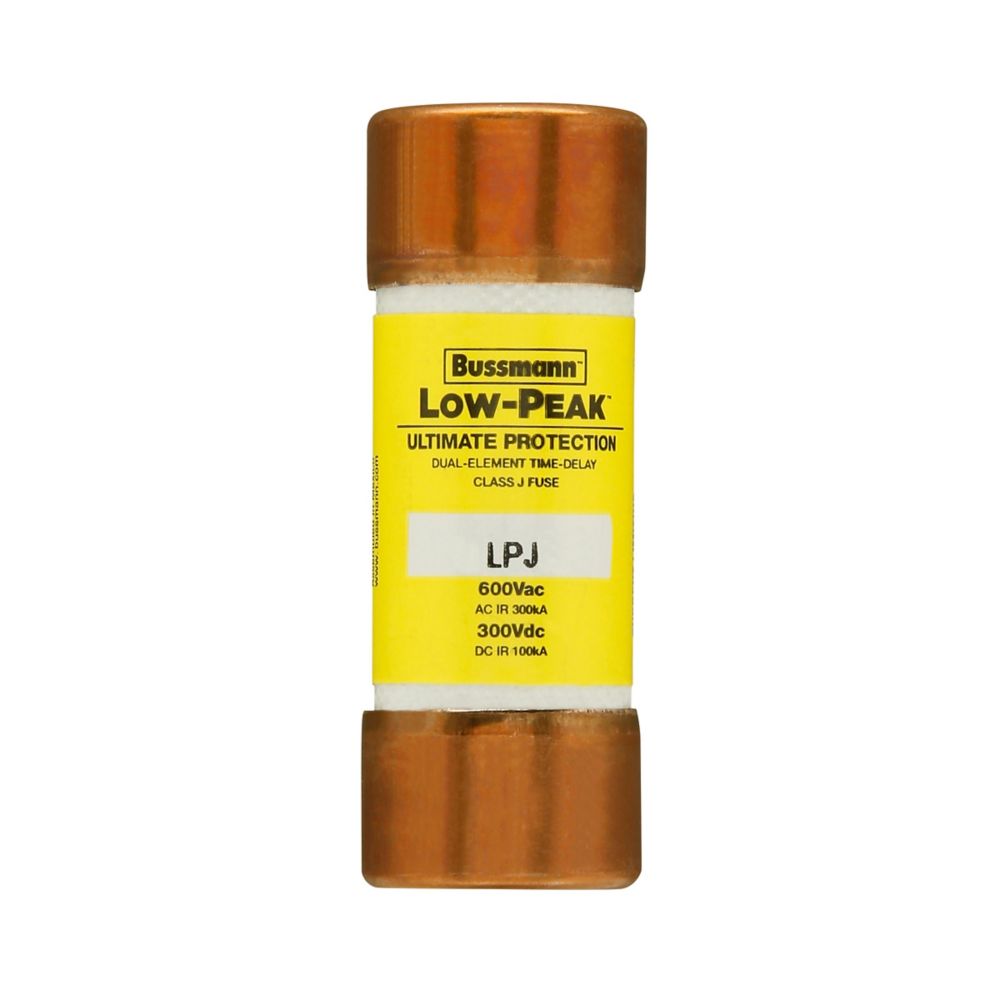

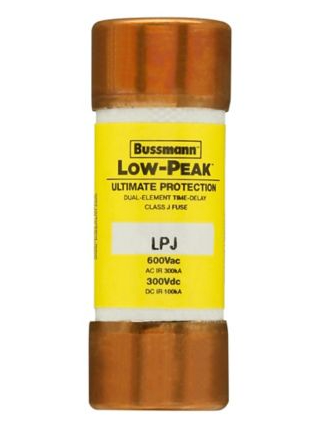

LPJ-2-8/10SP - Eaton Bussmann Class J Time Delay Fuse 2.8A 600V AC 300V DC Dual Element

LPJ-2-8/10SP

LPJ-2-8/10SP is a Bussmann Eaton Class J time delay fuse with 2.8 amp rating designed for high performance circuit protection.This dual element, current-limiting fuse features a 10 second time delay at 500% rated current, 600 VAC and 300 VDC voltage ratings, and a 300 kA interrupt rating at AC and 100 kA at DC. It is non-indicating with ferrule end terminals and mounts in a fuse holder. The cylindrical melamine body measures 0.81 in diameter by 2.25 in length and complies with UL 248-8, CSA, CE, and RoHS standards.

Key Specifications
• Amperage: 2.8 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 300 kA AC / 100 kA DC
• Fuse Type: Time Delay, Current Limiting
• Class: J
• Number of Elements: Dual
• Response Time: 10 seconds at 500% rated current
• Mounting Type: Holder Mount
• Terminal Type: Ferrule End
• Body Type: Cylindrical Melamine
• Indicating: Non-Indicating
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-2-8/10SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 2
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522724
• GTIN : 00051712522724
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
