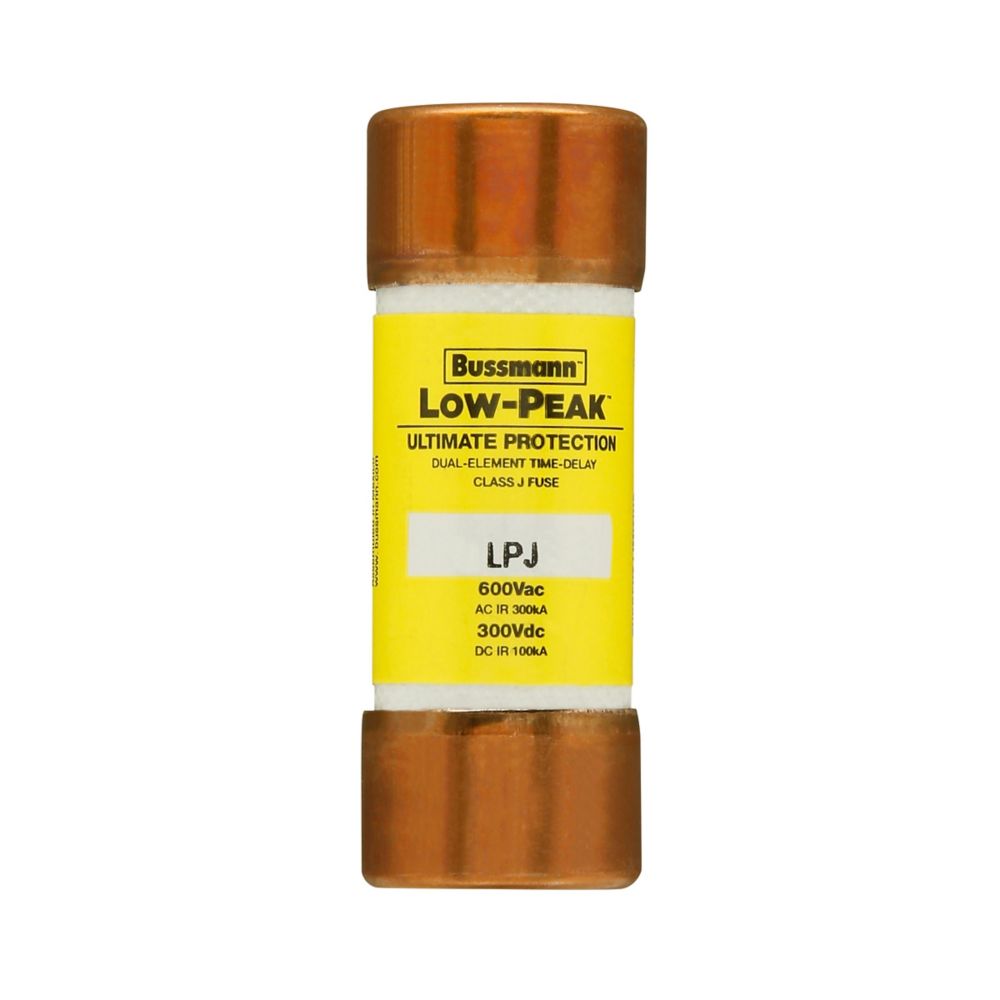

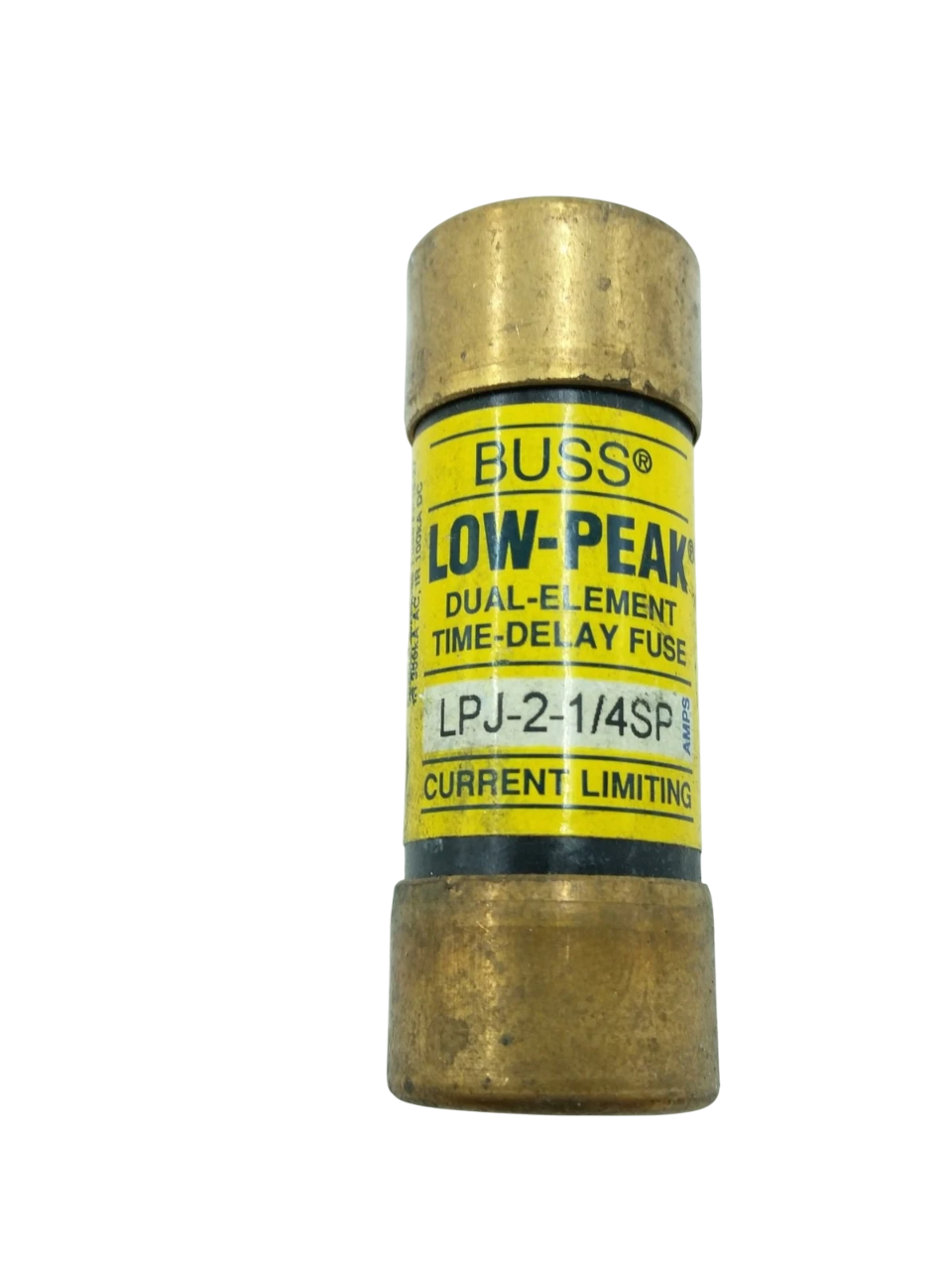

LPJ-2-1/4SP - Eaton Bussmann 2.25A 600V AC Class J Time-Delay Dual Element Fuse

LPJ-2-1/4SP

LPJ-2-1/4SP is a 2.25 ampere, 600 volt AC Class J time-delay dual element fuse from Eaton Bussmann designed for superior electrical protection.This fuse features a dual element, current-limiting design with a time-delay of at least 10 seconds at 500% of rated current, suitable for branch circuit protection. It has a voltage rating of 600Vac and 300Vdc, an interrupt rating of 300kA RMS symmetrical at AC voltage, and is UL 248-8, cULus, CSA, CE, and RoHS compliant.

Key Specifications
• Amperage: 2.25A
• Voltage Rating: 600Vac / 300Vdc
• Fuse Class: J
• Time-Delay: Dual element, minimum 10 seconds at 500% rated current
• Interrupt Rating: 300kA RMS symmetrical (AC), 100kA DC
• Physical Size: 0.81" diameter x 2.25" length
• Mounting Type: Cartridge fuse
• Certifications: UL 248-8, cULus Listed, CSA C22.2 No. 248.8, CE, RoHS compliant
• Series: Low-Peak LPJ

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-2-1/4SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 2
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712522700
• GTIN : 00051712522700
• Country of Origin : Mexico
• Dimensions : 0.81 in x 2.25 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
