Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

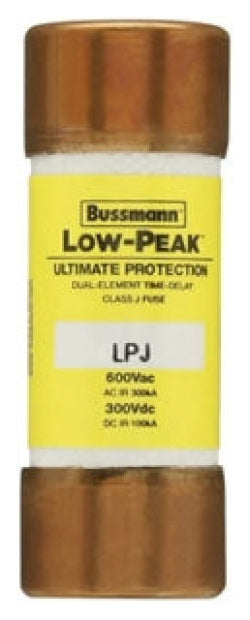

LPJ-2-1/2SP
LPJ-2-1/2SP is a Class J, dual-element, time-delay, current-limiting fuse from Eaton Bussmann, designed for reliable circuit protection in demanding industrial applications.
This non-indicating, ferrule-end fuse offers fast short-circuit protection and time-delay performance, minimizing nuisance tripping during motor starts and inrush currents. It is part of the proven Low-Peak LPJ series, known for robust construction and high interrupting capacity.
-
Key Specifications
- Amperage: 2.5A
- Voltage: 600V AC, 300V DC
- Poles: 1
- Mounting Type: Ferrule (blade) ends
- Interrupt Rating: 300,000A AC RMS Sym, 100,000A DC
- Series/Frame: LPJ, Class J
- Trip Unit: Dual-element, time-delay (10 sec minimum at 500% rated current)
- Certifications: cULus Listed, UL 248-8, CSA C22.2 No. 248.8, CE, RoHS compliant
- End Type: Ferrule
- Connection Type: Ferrule
- Current-Limiting: Yes
- Non-Indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: LPJ-2-1/2SP
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Low-Peak
- Type : LPJ
- Voltage : 600
- Amperage : 2
- AIC rating : 300kA@600V
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 051712522717
- GTIN : 00051712522717
- Country of Origin : Mexico
- Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.1
- Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
