LPJ-1SP - Eaton Bussmann Class J Time-Delay Fuse 1 Amp 600V Dual Element 300kA Interrupt Rating

LPJ-1SP

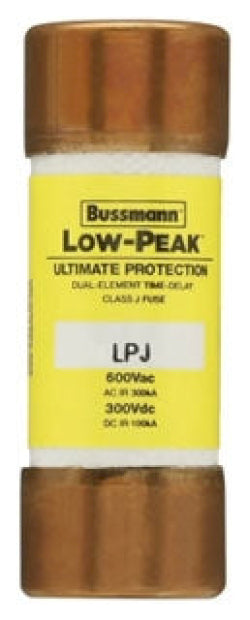

LPJ-1SP is a 1 Amp, 600 Volt AC Class J time-delay fuse from Eaton Bussmann series designed for reliable circuit protection.This dual-element, current-limiting fuse features a 10-second minimum time delay at 500% rated current, an interrupting rating of 300,000 AIC at 600 VAC, and 100,000 AIC at 300 VDC. It is UL listed, CSA certified, and measures 0.81" x 2.25" with ferrule end x ferrule end mounting.

• Amperage: 1 Amp
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: J (UL 248-8)
• Time Delay: 10 seconds minimum at 500% rating
• Interrupting Rating: 300,000 AIC RMS at 600 VAC, 100,000 AIC at 300 VDC
• Dual Element, Current Limiting
• Physical Size: 0.81" x 2.25"
• Mounting Type: Ferrule end x ferrule end
• Certifications: UL Listed, CSA Certified
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-1SP
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Low-Peak
• Type : LPJ
• Voltage : 600
• Amperage : 1
• AIC rating : 300kA@600V
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 051712523233
• GTIN : 00051712523233
• Country of Origin : Mexico
• Dimensions : 2.25 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.19
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
