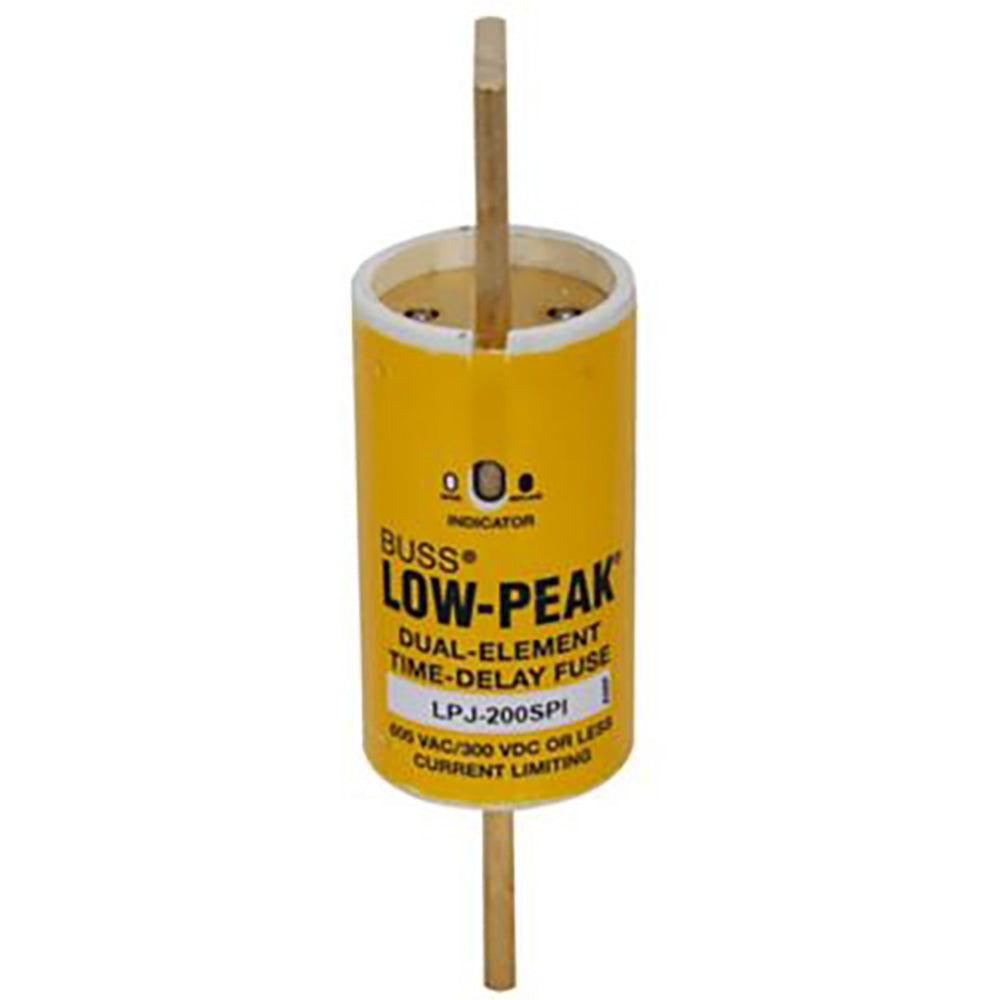

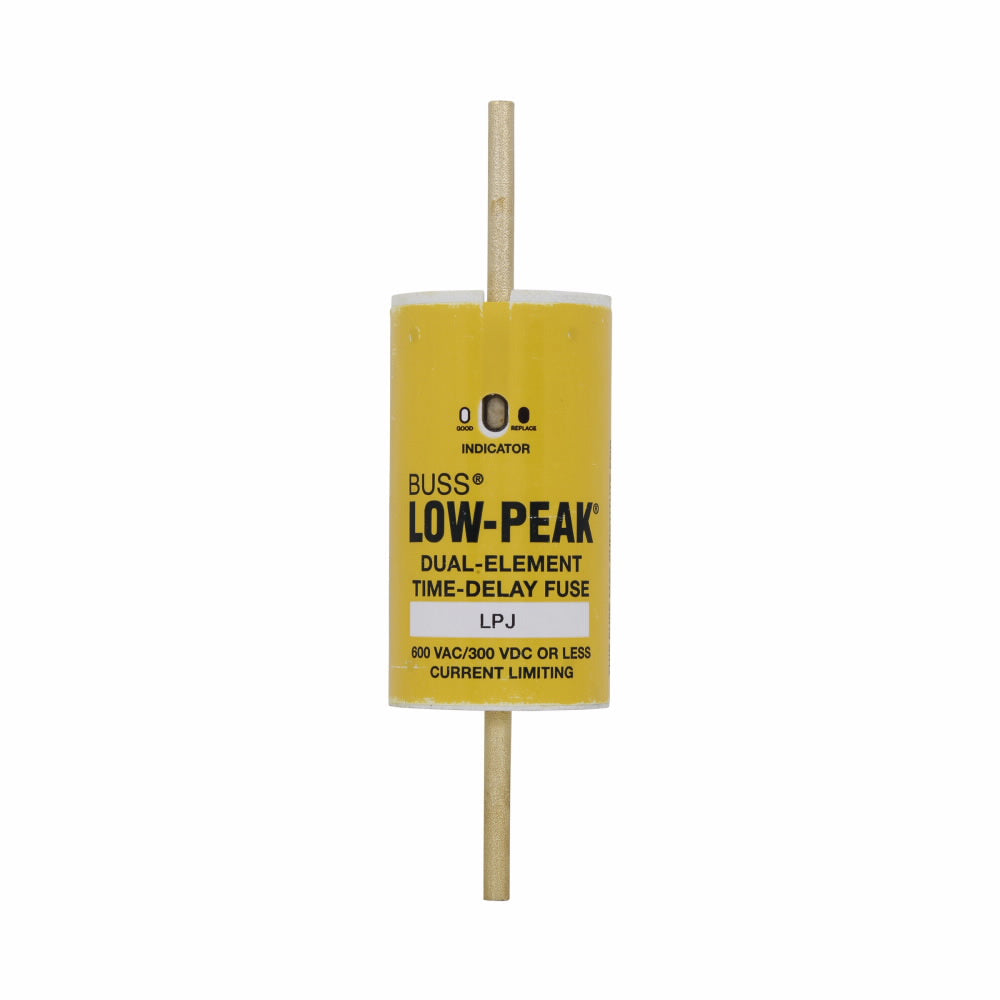

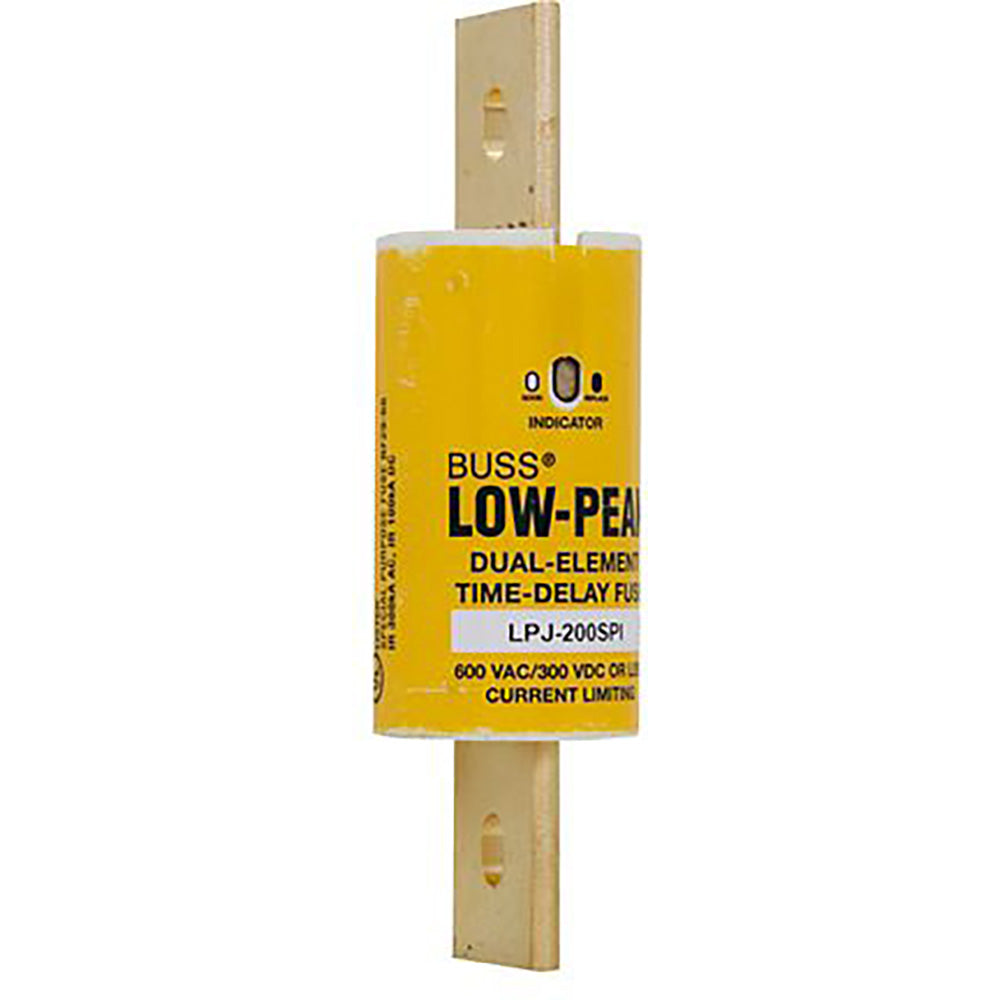

LPJ-175SPI - Cooper Bussmann Eaton 175A 600V Class J Time Delay Dual Element Fuse with Indicator

LPJ-175SPI

LPJ-175SPI is a 175 Amp, 600 Volt AC Class J time delay fuse with dual element and indicator, designed for high performance and safety.This Eaton Bussmann series fuse features a 10-second minimum time delay at 500% rating, high current limitation, and an interrupting rating of 300,000 AIC RMS at 600VAC. It is UL Listed Special Purpose and CSA Certified, suitable for demanding electrical protection applications. The fuse has a physical size of 1.63" x 5.75" and includes bolted blade end connections for secure mounting.

Key Specifications
• Amperage: 175 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Class: J
• Time Delay: 10 seconds minimum at 500% rating
• Dual Element Design
• Indicator Included
• Interrupting Rating: 300,000 AIC RMS @ 600VAC, 20,000 AIC DC
• Mounting Type: Bolt-On (Bolted blade end connections)
• Physical Size: 1.63" x 5.75"
• Certifications: UL Listed Special Purpose (Guide JFHR, File E56412), CSA Certified (Class J per CSA C22.2 No. 248.8, File 53787)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: LPJ-175SPI
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 600
• Amperage : 175
• AIC rating : 300kA@600V
• Diameter : 0.56
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 05171262819
• GTIN : 00051712628198
• Country of Origin : Mexico
• Dimensions : 5.75 in x 1.5 in x 1.5 in (Length/Depth x Height x Width)
• Weight : 0.8
• Certification : CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
